Craftsman 41AD528C799 (316.791940) Gas String Trimmer

Model: 41AD528C799 (316.791940)

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

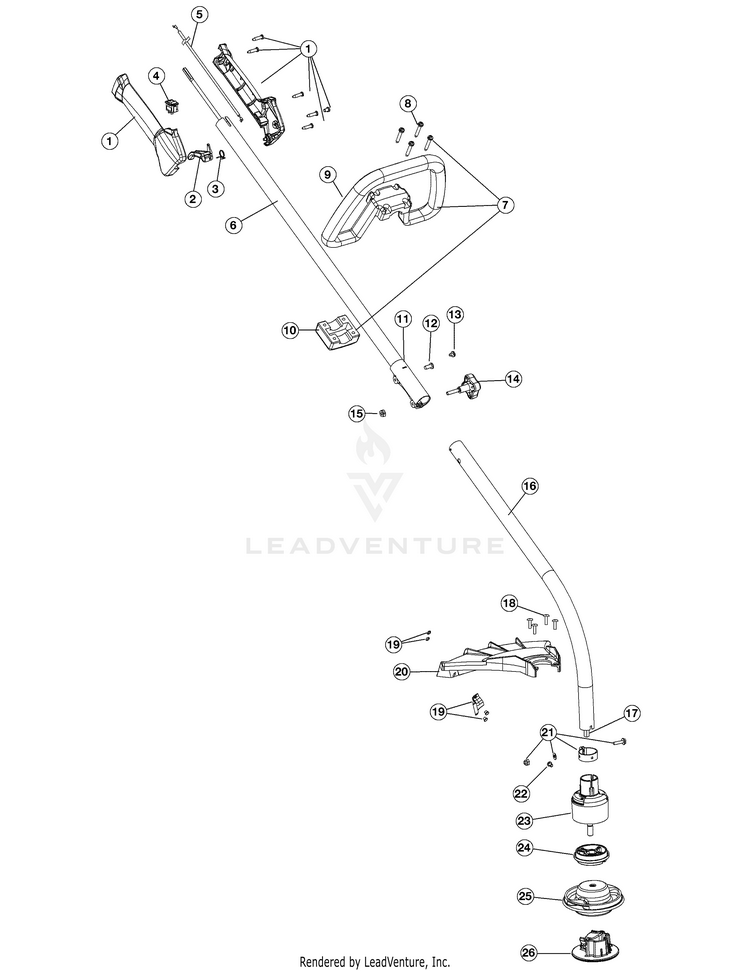

General Assembly

...
...
1
Throttle Housing Assembly (Incl. Ref No.2-4) MTD-753-04234
...
2
Throttle Trigger MTD-753-04119
...
3
Throttle Trigger Spring MTD-791-182690
...
4
Switch Assembly MTD-791-182405
...
5
Throttle Cable Assembly MTD-753-05266
...
6
Upper Drive Shaft Housing MTD-753-04236
...
7
D-HANDLE A (Incl. Ref No.8-10) MTD-791-180869
...
8
Screw MTD-791-181070
...
9
HANDLE-LOOP MTD-791-182167
...
10
BASE-LOOP HANDLE MTD-791-182168
...
11
Click Link Coupler (Incl. Ref No.12-15) MTD-753-1190
...
12
Bolt MTD-791-181617
...
13
Screw MTD-791-182057
...
14
CLICK LINK CLAMP (Incl. Ref No.15) MTD-697-00661-9
...
15
Adjustment Knob Nut MTD-712-04018A
...
16
Lower Drive Shaft Housing MTD-791-182387
...
17
Lower Flexible Drive Shaft MTD-791-181852
...
18
SCREW, #10-24X.50 M MTD-791-181858
...
19
Blade Assembly MTD-753-05033
...
20
GUARD ASSEMBLY:W/BLADE (Incl. Ref No.19) MTD-753-05032
...
21
CLAMP ASSEMBLY-LOWER (Incl. Ref No.22) MTD-791-153597
...
22
Anti-Rotation Screw MTD-791-145569
...
23
HOUSING ASSEMBLY:BUSH MTD-753-05050
...
24
ADAP:CS BOOM MTD-753-05034
...
25
Cutting Head Assembly MTD-753-05035
...
26
FIXED HEAD CAP MTD-731-05193
...
xx
TUBE:LINE:SEARS DE not shown MTD-697-00368
...
...
...
...
...
