Craftsman 41AD396C799 (316.79586) Gas String Trimmer

Model: 41AD396C799 (316.79586)

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

Popular Parts

Popular Parts

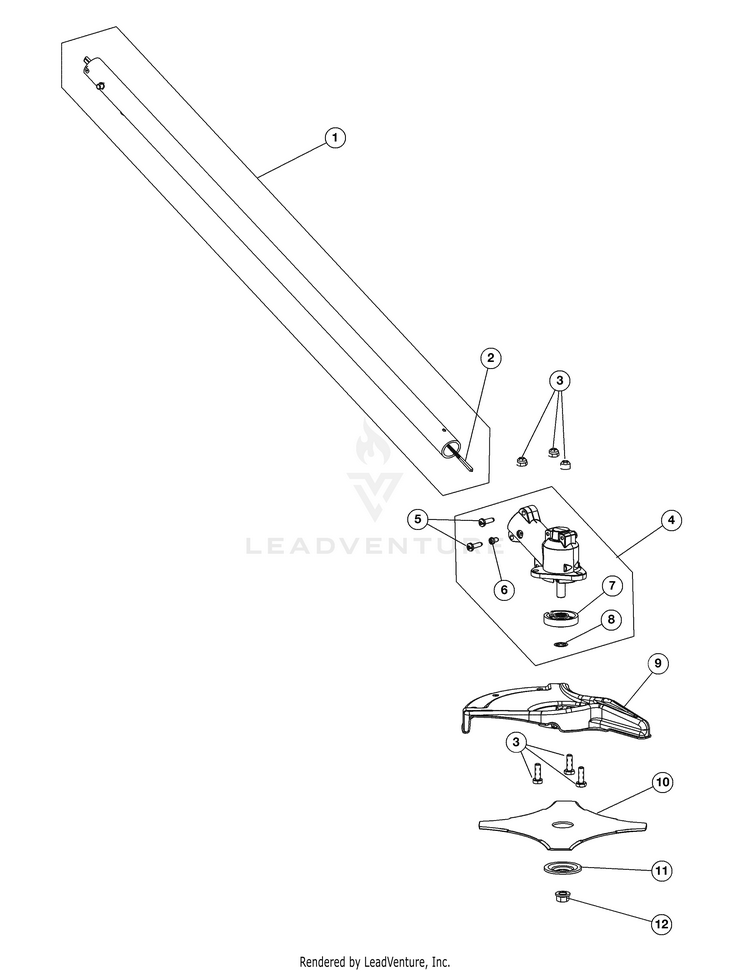

Brushcutter Assembly

...
...
1
Lower Drive Shaft Housing Assembly (Incl. Ref No. 2) MTD-791-160226
...
2
LOWER DRIVE SHAFT MTD-753-05267
...
3
Shield Mount Screw Assembly MTD-791-182200
...
4
2-Piece Gear Box Assembly (Incl. Ref No. 5-8) MTD-791-182193
...
5
SCREW #10-24X11/16 T-25 MTD-791-182195
...
6
Anti-Rotation Screw MTD-791-182519
...
7
Blade Driver MTD-791-182196
...
8
Palnut MTD-753-04348
...
9
Blade Shield/Shield Mount MTD-791-147492
...
10
4-Tooth Blade MTD-791-145873B
...
11
Retaining Washer MTD-791-147490
...
12
Nut MTD-712-04105
...
xx
Blade Retaining Kit (Incl. Ref No. 11 & 12) Not Shown, Optional MTD-791-180014B
...
xx
Locking Rod Tool Not Shown, Optional MTD-791-613226
...
xx
Shoulder Harness Not Shown, Optional MTD-791-682075B
...
xx
Hanger Not Shown, Optional MTD-731-08926
...
...
...
...
...
