Craftsman 41AD386C799 (316.79120) Gas String Trimmer

Model: 41AD386C799 (316.79120)

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

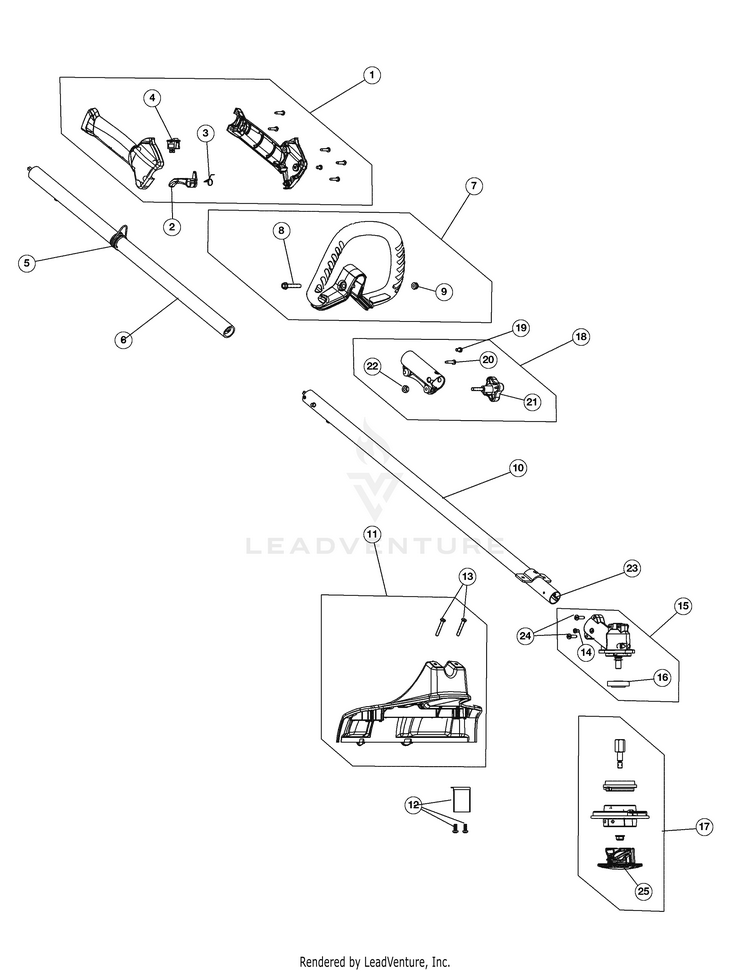

General Assembly

...
...
1
Throttle Housing Assembly (Incl. Ref No. 2-4) MTD-753-04234
...
2
Throttle Trigger MTD-753-04119
...
3
Spring MTD-791-182690
...
4
Switch MTD-791-182405
...
5
SHOULDER STRAP CLAMP MTD-4301A
...
5
Shoulder Strap Clip MTD-791-610327
...
6
Upper Drive Shaft Housing Assembly MTD-753-04344
...
7
D-Handle Assembly (Incl. Ref No. 8 & 9) MTD-753-06039
...
8
Bolt MTD-753-06040
...
9
Hex Lock Nut MTD-712-0324
...
10
Lower Drive Shaft Housing Assembly MTD-753-06139
...
11
Shield Assembly (Incl. Ref No. 13) MTD-753-06292
...
12
Blade Assembly MTD-753-06126
...
13
Screw MTD-753-06125
...
14
Anti-Rotation Screw MTD-791-182519
...
15
Gear Box (Incl. Ref No. 14, 16 & 24) MTD-791-182193
...
16
Gear Box Spacer MTD-791-182196
...
17
Cutting Head Assembly (Incl. 21) MTD-753-05045
...
18
Split Boom Coupler (Incl. Ref No. 19-22) MTD-753-1190
...
19
Screw MTD-791-182057
...
20
Bolt MTD-791-181617
...
21
CLICK LINK CLAMP MTD-697-00661-9
...
22
Knob Retaining Nut MTD-712-04018A
...
23
LOWER DRIVE SHAFT MTD-753-05267
...
24
SCREW #10-24X11/16 T-25 MTD-791-182195
...
25
FIXED HEAD CAP MTD-731-05193
...
xx
TUBE:LINE:SEARS DE Not Shown MTD-697-00368
...
...
...
...
...
