Craftsman 41AD330C799 (316.79108) Gas String Trimmer

Model: 41AD330C799 (316.79108)

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

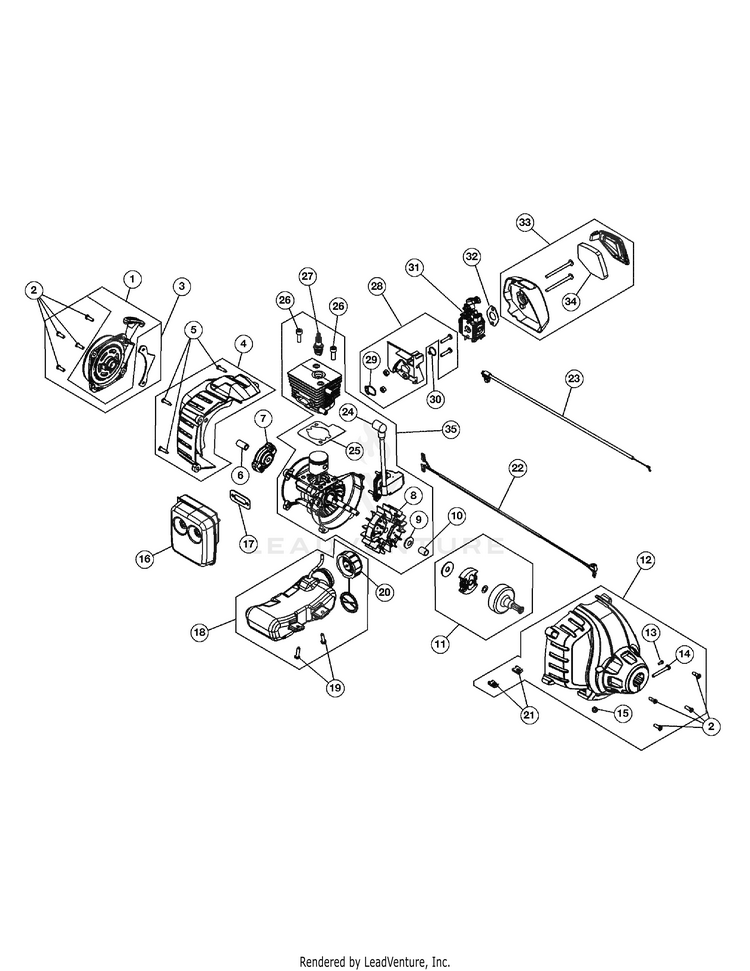

Engine Assembly

...
...
1
Rear Cover Assembly (Incl. Ref No. 2 & 3) MTD-753-06282
...
2
SCREW:10-32X.5 MTD-1964
...
3
Starter Assembly Guard (Incl. Ref No. 2) MTD-753-06244
...
4
REAR ENGINE COVER (Incl. Ref No. 5) MTD-753-06245
...
5
Cover Screw MTD-791-181345
...
6
Adapter MTD-753-06104
...
7
Pawl Assembly MTD-753-06091
...
8
Flywheel Assembly MTD-753-06246
...
9
Washer MTD-753-06247
...
10
Spacer MTD-753-06248
...
11
Clutch Assembly MTD-753-05860
...
12
CLUTCH COVER ASSEMBLY SRS (Incl. Ref No. 2, 13-15 & 21) MTD-753-06285
...
13
Anti-Rotation Screw MTD-791-182519
...
14
SCREW MTD-9689A
...
15
HEX NUT MTD-712-0161
...
16
MUFFLER ASSEMBLY MTD-753-08745
...
17
Muffler gasket MTD-753-04619
...
18
Fuel Tank Assembly (Incl. Ref No. 19 & 20) MTD-753-06250
...
19
Tank Screw MTD-791-181930
...
20
Fuel Cap MTD-753-05057
...
21
U-Shaped Nut MTD-791-182366
...
22
Lead Wires MTD-753-05877
...
23
Throttle Cable MTD-753-06251
...
24
Module Assembly MTD-753-06303
...
25
Cylinder Gasket MTD-753-06252
...
26
Cylinder Bolt MTD-710-04715
...
27
Spark Plug MTD-753-06847
...
28
Insulator Assembly (Incl. Ref No. 29) MTD-753-06189
...
29
Insulator O-Ring MTD-753-06184
...
30
Carburetor O-Ring MTD-753-06185
...
31
Carburetor MTD-753-06288
...
32
Carburetor Gasket MTD-753-06253
...
33
Aircleaner Assembly (Incl. Ref No. 34) MTD-753-06289
...
34
Aircleaner Filter MTD-753-06085
...
35
Shortblock Assembly (Incl. Ref No. 8-10 &24-27) MTD-753-06291
...
...
...
...
...
