Craftsman 41AD304G799 (316.792040) Gas String Trimmer

Model: 41AD304G799 (316.792040)

Save
 Part Not Listed?Part Not Listed?
product name

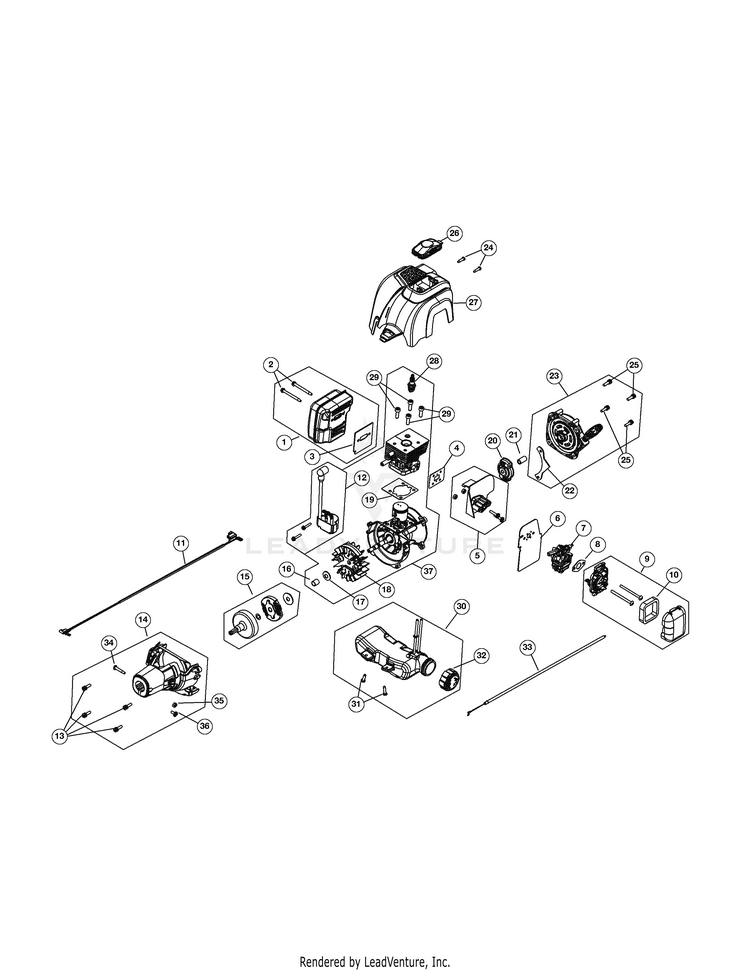

Engine Assembly

...
...
1
MUFFLER ASSEMBLY MTD-753-06349
...
2
THROT GRIP ASSEMBLY:WLOOP MTD-753-04294
...
3
MUFFLER GASKET MTD-753-06352
...
4
Insulator Gasket MTD-753-06353
...
5
Insulator Assembly (includes 4) MTD-753-06354
...
6
BAFFLE HEAT SHIELD MTD-753-06355
...
7
Carburetor MTD-753-06356
...
8
Carburetor Gasket MTD-753-06253
...
9
Aircleaner Assembly (includes 10) MTD-753-05725
...
10
Aircleaner Filter MTD-791-181757
...
11
Lead Wire MTD-753-06357
...
12
MODULE ASSEMBLY MTD-753-05376
...
13
Clutch Cover Screws MTD-710-04742A
...
14
Clutch Cover Assembly (includes 13, 34-36) MTD-753-06358
...
15
Clutch Assembly MTD-753-06281
...
16
SPACER MTD-753-06359
...
17
Washer MTD-753-06247
...
18
Flywheel Assembly MTD-753-06246
...
19
GASKET CYL MTD-753-06360
...
20
Pawl Assembly MTD-753-06091
...
21
Electric Starter Adapter MTD-753-06104
...
22
STARTER COVER GRD MTD-753-06364
...
23
STARTER ASSEMBLY RR MTD-753-06361
...
24
Screw MTD-791-181345
...
25
Screw MTD-710-04742A
...
26
Spark Plug Cover MTD-753-06362
...
27
ENGINE COVER TOP YEL MTD-753-06363
...
28
Spark Plug MTD-753-06847
...
29
Cylinder Screws MTD-710-04715
...
30
Fuel Tank Assembly (includes 31 & 32) MTD-753-06250
...
31
Fuel Tank Screws MTD-791-181930
...
32
Fuel Cap MTD-791-182612
...
33
THROTTLE CABLE MTD-753-05883
...
34
SCREW MTD-9689A
...
35
Nut MTD-712-0161
...
36
SHIELD, HEAT FRONT MTD-791-182516
...
37
SHORT BLOCK MTD-753-06365
...
xx
Electric Start Not Shown MTD-49M2027P799
...
xx
ELECTRIC START BIT Not Shown MTD-49MESCBL799

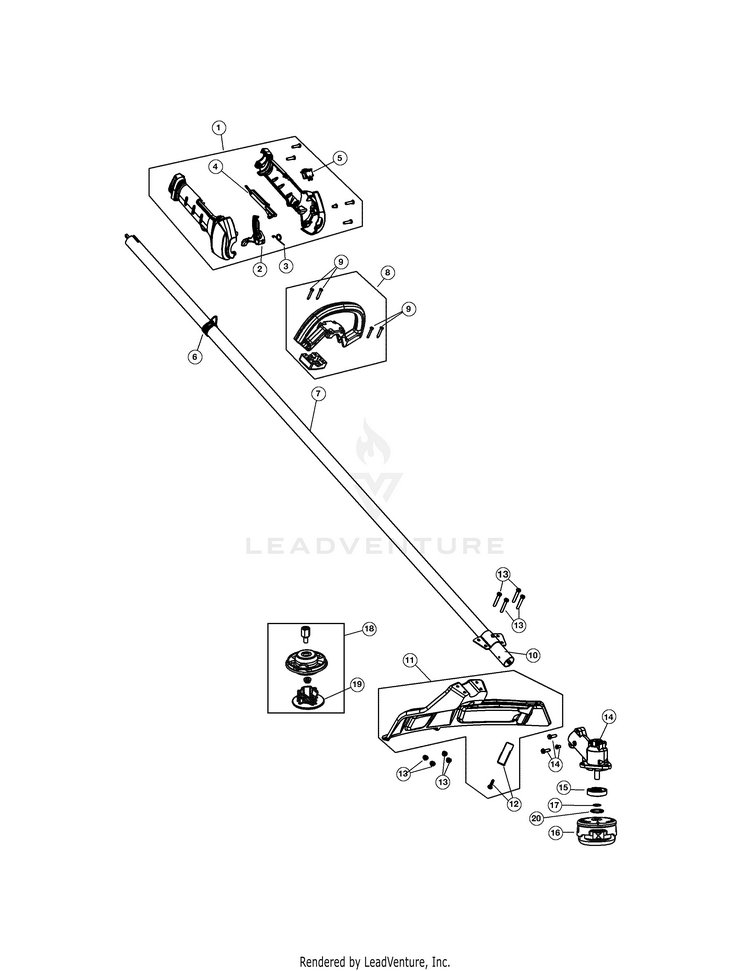

General Assembly

...
...
1
THROTTLE GRIP MTD-753-09645
...
2
Throttle Trigger MTD-731-04970B-10
...
3
TRIGGER SPRING MTD-753-05007
...
4
LOCK OUT LEVER MTD-731-04971B-10
...
5
Switch MTD-791-182405
...
6
SHOULDER STRAP CLAMP MTD-4301A
...
6
Shoulder Strap Clip MTD-791-610327
...
7
DRIVE SHAFT HOUSING MTD-753-05474
...
8
D-Handle Assembly (includes 9) MTD-753-05008
...
9
Screw MTD-791-181070
...
10
FLEX SHAFT 55.6" MTD-753-06098
...
11
Shield Assembly (includes 12) MTD-753-05820
...
12
Blade Assembly MTD-753-05821
...
13
Screw & Nut MTD-753-06125
...
14
Gearbox MTD-791-182193
...
15
Gearbox Spacer MTD-791-182196
...
16
Cutting Head Assembly MTD-753-06102
...
17
Palnut MTD-753-04348
...
18
HEAD ASSEMBLY W/HDW DE MTD-753-05779
...
19
Glide Plate MTD-753-05780
...
20
Washer MTD-753-06395
...
xx
Locking Rod Tool Not shown MTD-791-613226
...
xx
TUBE:LINE:SEARS DE Not shown MTD-697-00368
...
xx
Shoulder Strap Not shown MTD-753-05896
...
...
...
...
...
