Craftsman 41AD2TBC799 (316.791920) Gas String Trimmer

Model: 41AD2TBC799 (316.791920)

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

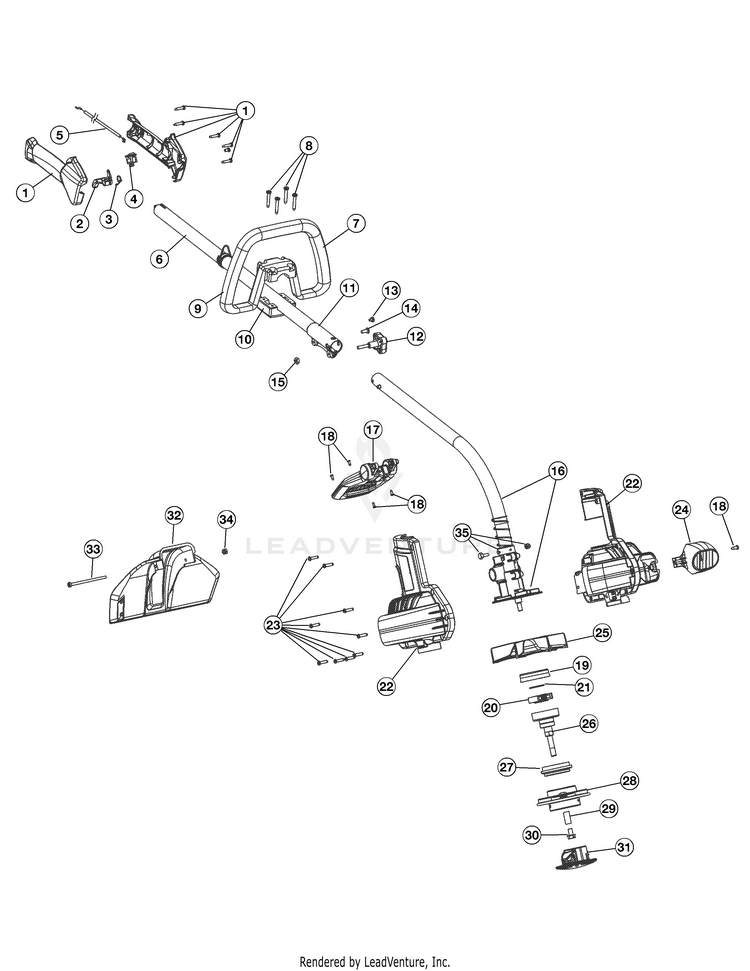

Boom and Trimmer

...
...
1
Throttle Housing Assembly (includes 2-4) MTD-753-04234
...
2
Throttle Trigger MTD-753-04119
...
3
Throttle Trigger Spring MTD-791-182690
...
4
Switch Assembly MTD-791-182405
...
5
Throttle Cable (marked 746-04234) MTD-753-05222
...
6
Upper Drive Shaft Housing Assembly MTD-753-04236
...
7
D-HANDLE A MTD-791-180869
...
8
Screw MTD-791-181070
...
9
HANDLE-LOOP MTD-791-182167
...
10
BASE-LOOP HANDLE MTD-791-182168
...
11
Split Boom Coupler (includes 12-15) MTD-753-1190
...
12
CLICK LINK CLAMP MTD-697-00661-9
...
13
Screw MTD-791-182057
...
14
Bolt MTD-791-181617
...
15
Adjustment Knob Nut MTD-712-04018A
...
16
LOWER DRIVE SHAFT MTD-753-05272
...
17
HANDLE SHAFT ASSEMBLY MTD-753-05258
...
18
Screw, 10-9 x .50 MTD-1755
...
19
CLUTCH DRUM CONTAI MTD-753-05233
...
20
CLUTCH ASSEMBLY MTD-753-05257
...
21
Washer MTD-9162-1
...
22
HOUSING ASSEMBLY MTD-753-05273
...
23
Screw MTD-710-04508
...
24
NOZZLE MTD-753-05275
...
25
IMPELLER MTD-753-05276
...
26
CLUTCH DRUM W/SPOO MTD-753-05277
...
27
ADAP:CS BOOM MTD-753-05034
...
28
HASSLE FREE HEAD MTD-753-05279
...
29
SPACER MTD-753-05280
...
30
BOLT 5/16-18 MTD-710-04562
...
31
FIXED HEAD CAP MTD-731-05193
...
32
GUARD ASSEMBLY W/BLADE MTD-753-05282
...
33
SCREW 10-24 x 3.25 MTD-710-04563
...
34
HEX NUT MTD-712-0161
...
35
CLAMP ASSEMBLY-LOWER MTD-791-153597
...
...
...
...
...
