Craftsman 41ACETBC799 (316.745400) Electric String Trimmers

Model: 41ACETBC799 (316.745400)

Save
 Part Not Listed?Part Not Listed?
product name

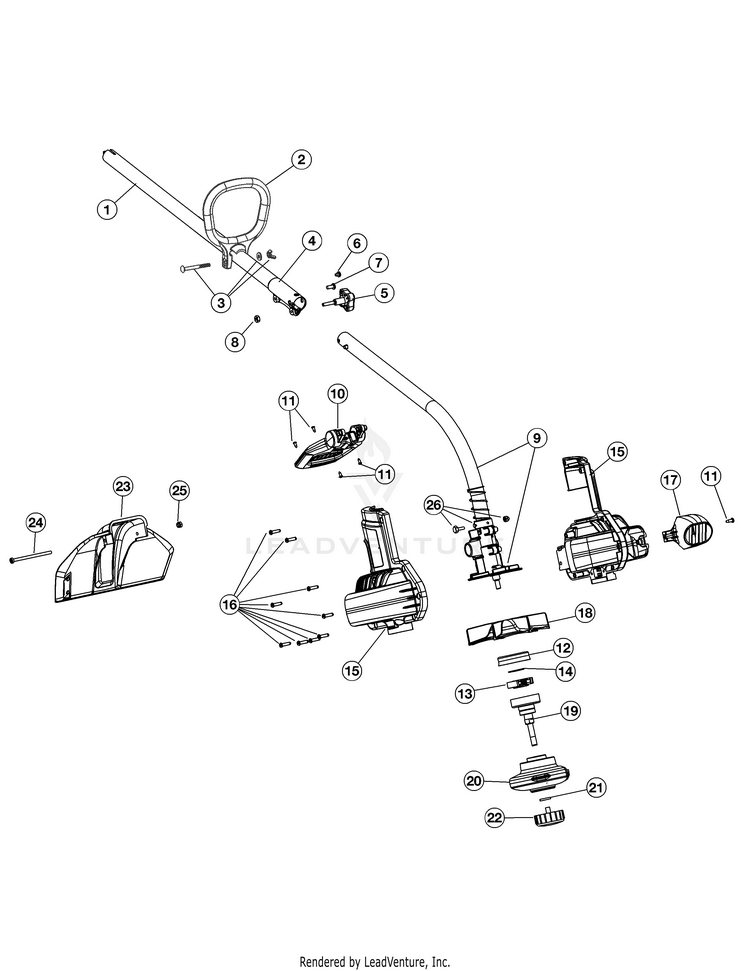

Drive & Head

...
...
1
HOUSING ASSEMBLY UPPER W/FLEXSHAFT MTD-753-04345
...
2
D-HANDLE AND HARDWARE MTD-791-153064
...
3
D-Handle Hardware Assembly MTD-791-181587
...
4
Split Boom Coupler (includes 5-8) MTD-753-1190
...
5
CLICK LINK CLAMP MTD-697-00661-9
...
6
Screw MTD-791-182057
...
7
Bolt MTD-791-181617
...
8
Adjustment Knob Nut MTD-712-04018A
...
9
LOWER DRIVE SHAFT MTD-753-05272
...
10
HANDLE SHAFT ASSEMBLY MTD-753-05258
...
11
Screw, 10-9 x .50 MTD-1755
...
12
CLUTCH DRUM CONTAI MTD-753-05233
...
13
CLUTCH ASSEMBLY MTD-753-05257
...
14
Washer MTD-9162-1
...
15
HOUSING ASSEMBLY MTD-753-05273
...
16
Screw MTD-710-04508
...
17
NOZZLE MTD-753-05275
...
18
IMPELLER MTD-753-05276
...
19
CLUTCH DRUM W/SPOO MTD-753-05277
...
20
Cutting Head Assembly MTD-753-08193
...
21
L-Wash. 3/8" I.D. MTD-736-0169
...
22
Bump Head Knob Assembly MTD-791-153066B
...
23
GUARD ASSEMBLY W/BLADE MTD-753-05282
...
24
SCREW 10-24 x 3.25 MTD-710-04563
...
25
HEX NUT MTD-712-0161
...
26
CLAMP ASSEMBLY-LOWER MTD-791-153597

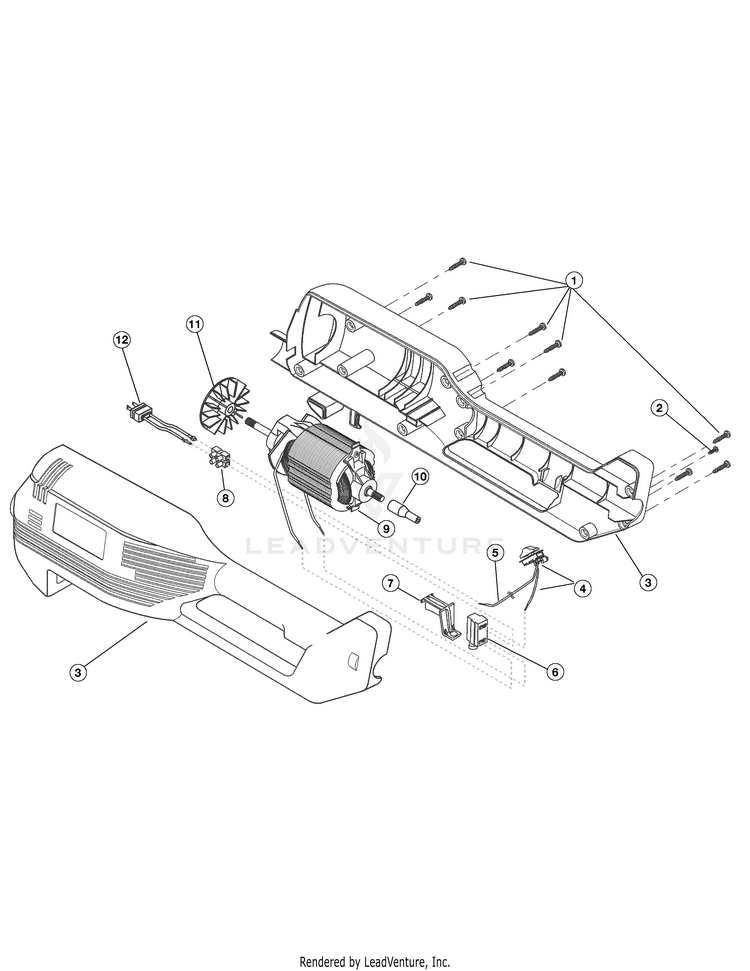

General Assembly

...
...
1
ASSEMBLY, HOUSING SCREW MTD-791-180300
...
2
Anti-Rotation Screw MTD-791-145569
...
3
MOTOR HOUSING ASSEMBLY MTD-753-05341
...
4
ASSEMBLY, 2-SPEED SWITCH MTD-791-180302
...
5
LEAD, WIRE MTD-791-180559
...
6
ASSEMBLY, SWITCH MTD-791-180150
...
7
TRIGGER, ELECTRIC MTD-791-182318
...
8
BLOCK, TERMINAL MTD-791-180305
...
9
MOTOR ASSEMBLY MTD-753-05342
...
10
DRIVER, ELECTRIC TRIMMER MTD-791-180152
...
11
Cooling Fan MTD-791-180155
...
12
PLUG, RECESSED MTD-791-181645
...
...
...
...
...
