Craftsman 312-174-099 (247.882902) (1992) Snow Thrower

Model: 312-174-099 (247.882902) (1992)

Save
 Part Not Listed?Part Not Listed?
product name

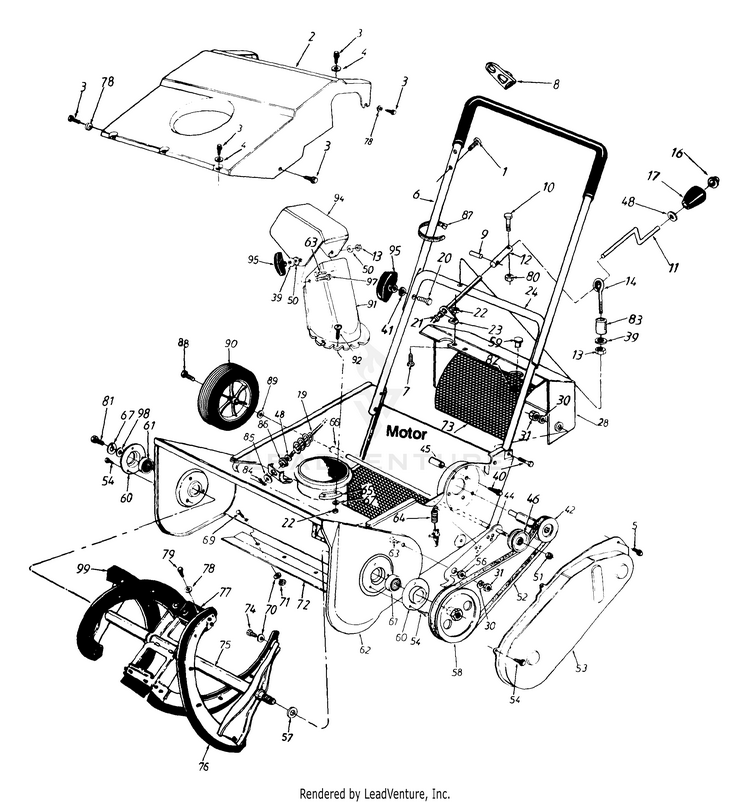

Pulley And Shaft Assembly

...
...
1
SCREW #7-19 C 1.0 MTD-710-1150
...
2
SHROUD MTD-731-1050
...
3
Hex B-Tap Scr. #10 x .38" MTD-910-0429
...
4
SPRING WASHER MTD-736-0370
...
5
SCREW 1/4-14 x .625 MTD-710-0892
...
6
HANDLE ASSEMBLY-UPPER MTD-649-0157
...
7
Hex Bolt 1/4-20 x 1/2" Lg. MTD-STD522505
...
8
CORD MINDER MTD-725-1590
...
9
Rolled Pin, 1/8 x .63 MTD-915-0138
...
10
SCREW-TRUSS MACH MTD-710-1057
...
11
CRANK ROD - UPR HDLE MTD-747-0809
...
12
Sleeve MTD-723-0408
...
13
Hex L-Nut 5/16-18 Thd. MTD-STD541431
...
14
EYE-BOLT MTD-747-0416A
...
?15
BUSHING .380 ID MTD-941-0475
...
16
Retainer - Push Cap 3/8" Dia. MTD-726-0100
...
17
Knob - Black MTD-920-0171
...
?19
CHUTE CRANK - LOWER MTD-647-0001
...
20
Carriage Bolt 5/16-18 x 2 MTD-710-1174
...
21
BUSHING .380 ID MTD-941-0475
...
22
Hex L-Nut 1/4-20 Thd. MTD-712-0291
...
23
CHUTE CRANK BRACKET MTD-784-5178A
...
24
LOWER HANDLE S/T SEARS /BLACK MTD-749-0863
...
28
Dash Panel (Electric) MTD-784-5184B
...
30
L-Wash. 5/16" I.D. MTD-STD551131
...
31
Hex Nut 5/16-18 Thd. MTD-STD541031
...
39
Bell-Wash. .345" I.D. x .88" O.D. MTD-736-0242
...
40
Hex Bolt 5/16-18 x 1-1/2" Lg. MTD-STD523115
...
41
SADDLE WASHER MTD-736-0486
...
42
WELDED SHAFT & PULLEY ASSEMBLY MTD-611-0006
...
44
KIT-IDLER/BRAKE BRACKET MTD-753-05156
...
45
Spacer.325" I.D. MTD-950-0589
...
46
Idler - Flat 2-1/8" O.D. MTD-756-0313
...
48
Washer 3/8" I.D. x 5/8" O.D. MTD-736-0140
...
50
Washer 5/16" I.D. x 1-1/4" O.D. MTD-736-0231
...
51
Hex L-Nut 3/8-24 Thd. MTD-STD541537
...
52
V-Belt 1/2 x 35.0" Lg. MTD-954-0101A
...
53
BELT COVER SINGLE (POWDER BLACK) MTD-790-00045C-0637
...
54
Tap Scr. 1/4 x 3/8" (Special Tap) MTD-710-0352
...
56
Spacer - Shoulder MTD-748-0234
...
57
Fl-Wash. .51" I.D. MTD-736-0326
...
58
"V"-Pulley 1/2-20 L.H. Thd. MTD-756-0475
...
59
RIVET187X0.415 BLIND STL/S MTD-728-0225
...
60
BEARING CUP (POWDER BLACK) MTD-784-5174-0637
...
61
BALL BEARING MTD-941-0600
...
62
BLOWER HOUSING MTD-684-0003
...
63
Truss Mach. Scr. 5/16-18 x 3/4" Lg. MTD-710-0323
...
64
IDLER SPRING MTD-732-0671
...
65
Chute Flange Keeper MTD-731-0851A
...
66
AXLE-WHEEL (.500X18GAX21.5) MTD-711-0904
...
67
L-Wash. 1/4" I.D. MTD-STD551125
...
69
Carriage Bolt 1/4-20 x .62" Lg. MTD-710-0134
...
70
Washer 1/4" MTD-STD551025
...
71
Hex Jam Nut 1/4-20 Thd. MTD-STD541225
...
72
Scraper Bar MTD-731-1033
...
73
Baffle MTD-724-0191
...
74
Tap Scr. 1/4 x 5/8" Lg. MTD-710-0896
...
75
AUGER ASSEMBLY MTD-984-04027A
...
76
Rubber Spiral - L.H. MTD-931-0780A
...
77
Rubber Paddle MTD-931-0782A
...
78
Washer 3/16" I.D. x 7/8" O.D. MTD-736-0400
...
79
Special Screw, #10-16 x .625 MTD-710-04669
...
80
Hex L-Nut #6-32 Thd. MTD-712-0135
...
81
Tap Scr. 1/4 x 5/8" Lg. MTD-710-0875
...
82
Fl-Wash..203" I.D. x .812" MTD-736-0490
...
83
EYEBOLT SPACER MTD-741-0585
...
84
Cotter Pin 3/32" x 3/4" MTD-STD560907
...
85
Washer .406" I.D. x 1-1/4" O.D. MTD-736-0133
...
86
BUSHING-HEX MTD-741-0403
...
87
TIE-PLASTIC MTD-726-0303
...
88
Retainer - Push Cap 1/2" Dia. MTD-726-0221
...
89
Washer 1/2" I.D. MTD-STD551050
...
90
WHEEL ASSEMBLY W/TIRE MTD-734-1529
...
91
LOWER CHUTE DISC MTD-731-1126A
...
92
Truss Mach. Scr. 1/4-20 x 1.0" Lg. MTD-710-0166A
...
94
DISCHARGE CHUTE-UPR SHORT SEA MTD-731-1125
...
95
Star Knob MTD-720-04072A
...
97
Carriage Bolt 5/16-18 x 1" Lg. MTD-STD533110
...
98
Fl-Wash. .25" I.D. MTD-736-0176
...
99
Rubber Spiral - L.H. MTD-931-0780A

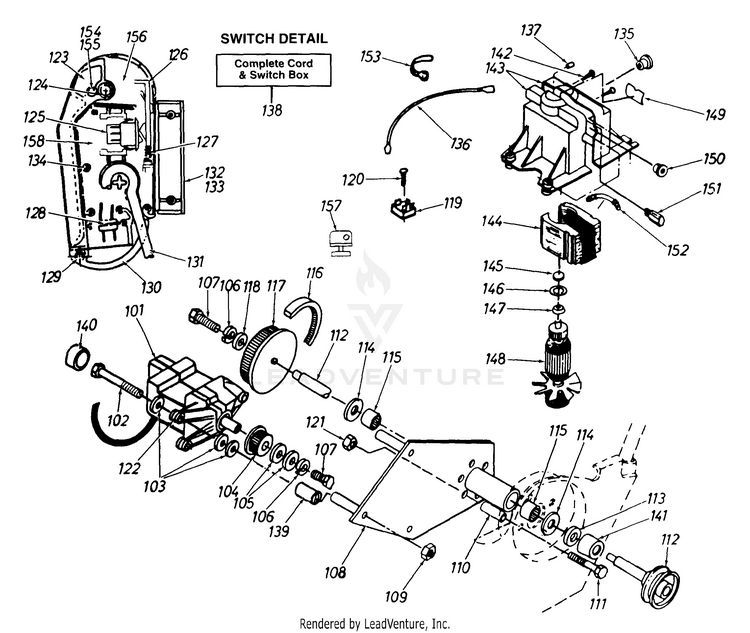

Pulley And Shaft Assembly

...
...
?15
BUSHING .380 ID MTD-941-0475
...
?19
CHUTE CRANK - LOWER MTD-647-0001
...
101
Motor and Switch Box Ass'y. (Includes Nos. 104, 105, 106, 107, 122) MTD-831-60051
...
102
SCREW MTD-710-1123
...
103
Washer 1/4" MTD-736-3020
...
104
Pulley - Motor (227) (Part of Armature & Bearing Ass'y. #148) MTD-756-0548
...
105
Fl-Wash. .27" I.D. x .948" MTD-736-0176
...
106
L-Wash. 1/4" I.D. MTD-STD551125
...
107
Hex Bolt 1/4-20 x 3/4" Grade 5 (Special) MTD-STD522507
...
108
Plate Assembly (Includes Bearings #115) MTD-684-0005
...
109
Lock Nut 1/4-20 Thd. MTD-STD541425
...
110
Spacer.325" I.D. MTD-950-0589
...
111
Hex Bolt 5/16-18 x 1-1/2" Lg. MTD-STD523115
...
112
UNKNOWN MTD-NA
...
113
Fl-Wash. .635" I.D. MTD-736-0162
...
114
Washer - Thrust MTD-736-0489
...
115
NEEDLE BEARING MTD-741-0586
...
116
BELT-COG MTD-754-0426
...
117
PULLEY-SHAFT (71 TOOTH) MTD-756-0598
...
118
Internal L-Wash. 1/4" I.D. MTD-736-0498
...
119
RECTIFIER MTD-725-1631
...
120
Tap Scr. #10-24 x 3/4" MTD-710-0430
...
121
Lock Nut 5/16-18 Thd. MTD-STD541431
...
122
Insulator - Motor Housing MTD-721-0289
...
123
HANDLE-SWITCH BOX MTD-731-1210
...
124
SPRING MTD-732-0679
...
125
SWITCH MTD-725-1565
...
126
LATCH-SWITCH BOX MTD-731-1198
...
127
SPRING-LATCH (SW-B MTD-732-0681
...
128
2 PRONG PLUG (POLARIZED) (Part of Cord Ass'y. #131) MTD-929-0304
...
129
PLUG RETAINER SPRING MTD-932-0680
...
130
RETAINER-PLUG BLACK MTD-731-1211
...
131
Cord Assembly (Includes Plug #128 and all Terminals) MTD-729-0011
...
132
HOUSING-SWITCH-UPPER BOX W/KE MTD-725-1628
...
133
HOUSING-LOWER SWIT MTD-731-1209
...
134
SCREW (Not Shown) MTD-710-1147
...
135
Bushing - Split MTD-741-0588
...
136
Jumper Wire Assembly (Blue) MTD-629-0015
...
137
Pad - Pressure MTD-735-0242
...
138
Cord & Switch Box Ass'y. Complete MTD-625-0002
...
139
Spacer Insulator MTD-750-0824
...
140
END CAP MTD-720-0264
...
141
SPACER MTD-948-0201
...
142
SCREW MTD-710-1146
...
143
Kit - Motor Housing (Both Halves) MTD-724-0197
...
144
Field Assembly MTD-624-0020
...
145
WICK-OIL MTD-721-0265
...
146
O-RING MTD-721-0266
...
147
Bearing - Spherical MTD-741-0572
...
148
Armature & Pulley Ass'y. (Includes Nos. 104, 105, 106, 107) MTD-624-0019
...
149
SPRING-FIELD MTD-724-0159
...
150
BUSHING-STRAIN RELIEF MTD-731-1207
...
151
Brush Assembly MTD-818-60004
...
152
TIE-WIRE(FIELD) MTD-726-0302
...
153
TIE-PLASTIC MTD-726-0303
...
154
PIN-HANDLE LOCK MTD-715-0214
...
155
SPRING-HDLE LOCK P MTD-732-0670
...
156
PLATE-KEY SWITCH MTD-784-0296
...
157
KEY SWITCH-BLACK S/T MTD-725-1627
...
158
Jumper Wire Ass'y. MTD-818-60002
...
...
...
...
...
