Craftsman 247.889800 31AS2T6D799 (2018) Snow Thrower

Model: 247.889800 31AS2T6D799 (2018)

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

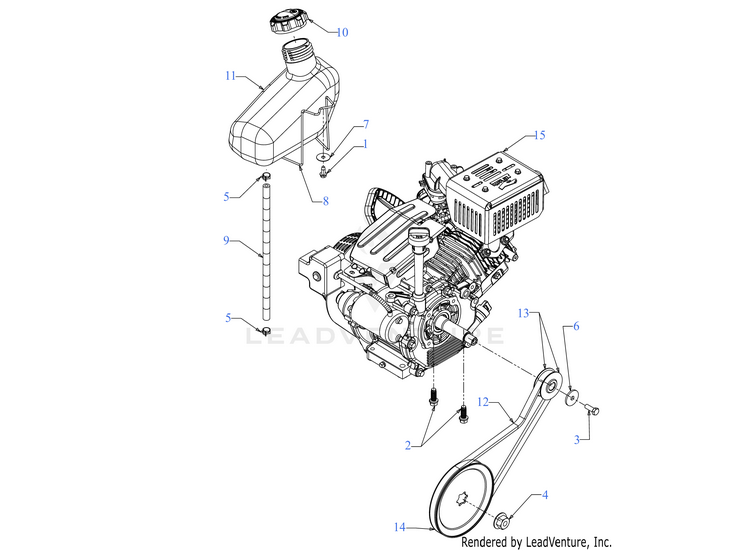

Engine Drive

...
...
1
SCREW 1/4-10:.625 MTD-710-04065
...
2
SCREW 3/8-16 x 1 MTD-710-0654A
...
3
SCREW 5/16-24 x .875 GR5 MTD-710-1245B
...
4
FLANGE NUT W/HUB MTD-912-0702
...
5
HOSE CLAMP 1/20 MTD-726-0205
...
6
WASHER-5/16 x 1.25X 1.27 MTD-736-0343
...
7
FLAT WASHER MTD-736-3092
...
8
SUPPORT WIRE MTD-747-05513
...
9
FUEL HOSE LOW PERMEATION 13" MTD-751-10349-13
...
10
FUEL CAP MTD-751-10487C
...
11
FUEL TANK (2 QT) MTD-751-14001B
...
12
V-BELT .500 x 35.00LG MTD-954-04050A
...
12
Cub Cadet AUGER BELT Retail Packaged Part MTD-490-501-C079
...
12
Genuine Factory Parts AUGER BELT Retail Packaged Part MTD-256963
...
13
HALF PULLEY MTD-956-0416B
...
14
AUGER PULLEY MTD-756-04443
...
15
COMPLETE ENGINE 208cc MTD-952Z270-JUA
...
...
...
...
...
