Craftsman 247.888742 31AH5DTQ799 (2018) Snow Thrower

Model: 247.888742 31AH5DTQ799 (2018)

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

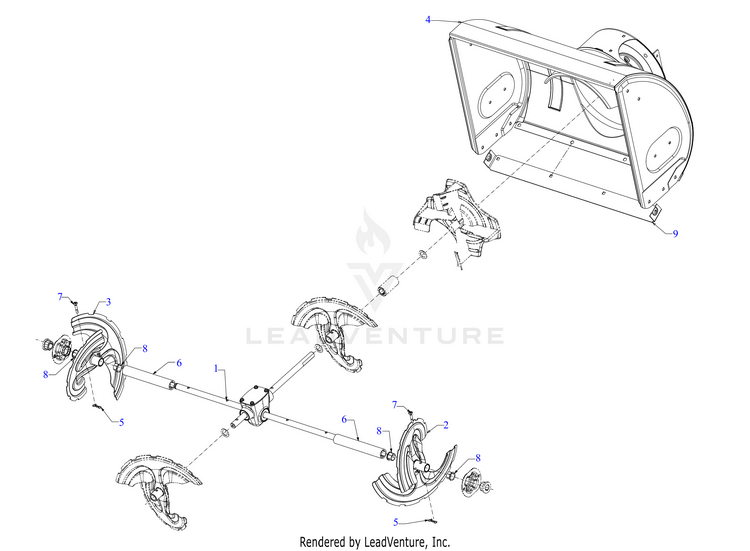

Auger Housing

...
...
1
GEARBOX ASSEMBLY 28" (See Separate Breakdown) MTD-918-06060
...
2
AUGER SPIRAL (LH) (Choose Color When Ordering) MTD-684-04107A
...
3
AUGER SPIRAL (RH) (Choose Color When Ordering) MTD-684-04108A
...
4
28" AUGER HOUSING ASSEMBLY (Choose Color When Ordering) MTD-684-05216A
...
5
BOW TIE COTTER PIN 1/4-5/16 MTD-714-04040
...
6
SPACER MTD-731-09558
...
7
SHEAR PIN (.25 x 1.50) MTD-738-05273
...
7
Cub Cadet SHEAR PINS (3X SNOW) MTD-490-241-C062
...
7
Troy-Bilt SHEAR PINS (3X SNOW) MTD-490-241-Y062
...
7
KIT-SHEAR PIN 3 STAGE (05273/06654) MTD-753-10904
...
8
FLANGE BUSHING MTD-741-0493C
...
9
28" SHAVE PLATE (Choose Color When Ordering) MTD-790-00118
...
...
...
...
...
