Craftsman 247.887890 31AS68EE799 (2018) Snow Thrower

Model: 247.887890 31AS68EE799 (2018)

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?

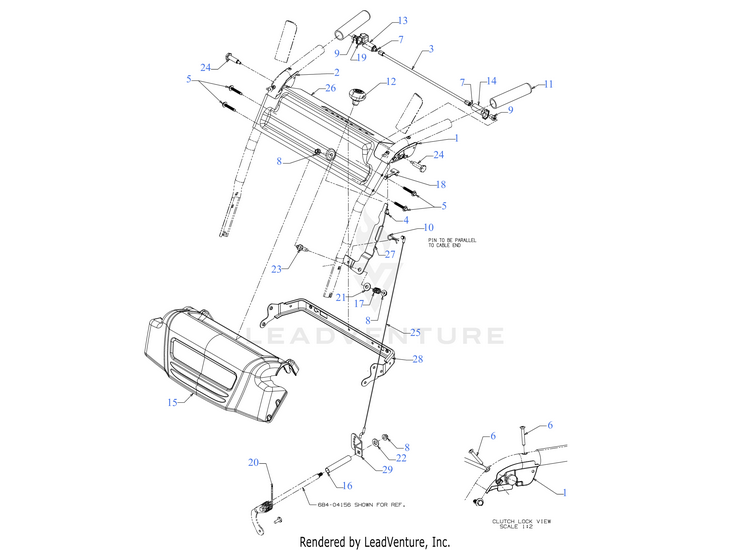

product name

Panel

...
...
1
CLUTCH LOCK HANDLE ASSEMBLY (LH) MTD-631-04133A
...
2
CLUTCH LOCK HANDLE ASSEMBLY (RH) MTD-631-04134B
...
3
PIVOT ROD MTD-684-04250
...
4
SCREW #8-16 x .50 MTD-710-04326
...
5
SCREW 1/4-20 x 1.625 MTD-710-04586
...
6
SCREW #10-24 x 1.375 MTD-710-1233
...
7
SCREW 1/4-20 x .50 MTD-710-3069
...
8
FLANGE LOCK NUT 5/16-18 MTD-712-04063
...
9
HEX NUT W/PATCH MTD-712-04081A
...
10
Inter. Cotter Pin 3/8" Dia. MTD-714-0145
...
11
GRIP MTD-720-0274
...
12
SHIFT KNOB MTD-720-04039
...
13
LOCK PLATE MTD-731-04894D
...
14
CLUTCH LOCK CAM MTD-731-04896C
...
15
PANEL HANDLE COVER MTD-731-06471
...
16
COVER .505 X .635 X 3.64 MTD-731-16011
...
17
COMPRESSION SPRING MTD-732-0193
...
18
CLUTCH SPRING MTD-732-04219C
...
19
TORSION SPRING MTD-732-04238B
...
20
TORSION SPRING MTD-732-04311A
...
21
FLAT WASHER .385X.870X.090 MTD-736-0262
...
22
FLAT WASHER MTD-936-3015
...
23
SHOULDER BOLT MTD-738-04118
...
24
SHOULDER SCREW .437 x 1.345 1/4-20 MTD-738-04348
...
25
SPEED SELECTOR CABLE (STEEL) MTD-946-04397A
...
26
HANDLE PANEL-STEEL W/O CUTOUT (Choose color when ordering) MTD-790-00219A
...
27
SPEED SHIFT LEVER (Choose color when ordering) MTD-790-00313A
...
28
HANDLE SUPPORT BRACKET (POWDER BLACK) MTD-790-00876-0637
...
29
SHIFT BRACKET REPLACEMENT KIT (790-01117) MTD-753-11084
...
...
...
...
...
