Craftsman 247.883963 31AH5DTH799 (2018) Snow Thrower

Model: 247.883963 31AH5DTH799 (2018)

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

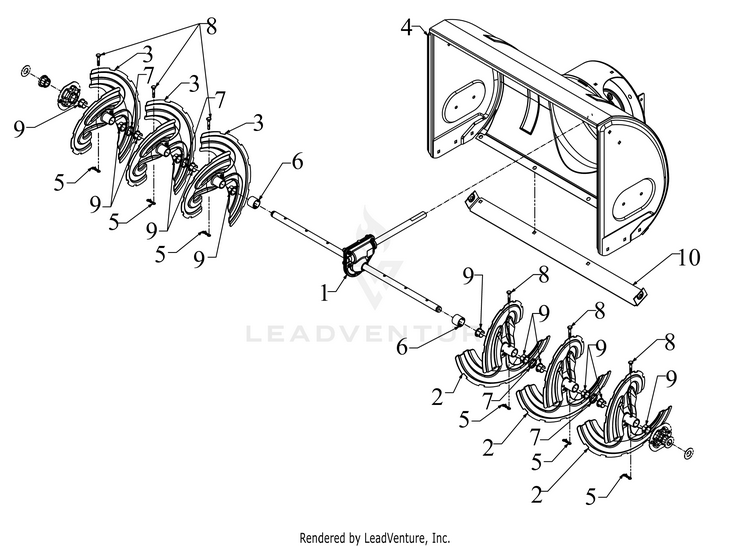

Auger Housing

...
...
1
30" GEARBOX ASSEMBLY (See Separate Breakdown) MTD-918-04165B
...
2
AUGER SPIRAL (LH) (2/15/22 & Before)*CHOOSE COLOR WHEN ORDERING* MTD-684-04107A
...
2
10T AUGER SPIRAL (LH) (2/15/22 & After)*CHOOSE COLOR WHEN ORDERING* MTD-684-06760
...
3
AUGER SPIRAL (RH) (2/15/22 & Before)*CHOOSE COLOR WHEN ORDERING* MTD-684-04108A
...
3
10T AUGER SPIRAL (RH) (2/15/22 & After)*CHOOSE COLOR WHEN ORDERING* MTD-684-06761
...
4
30" AUGER HOUSING MTD-684-05205A
...
5
BOW TIE COTTER PIN 1/4-5/16 MTD-714-04040
...
6
SPACER 1.25OD x .75ID X1.00 LG MTD-731-04870
...
7
SPCR 1.25 OD x 75IDX2.00LG MTD-731-04871
...
8
SHEAR PIN .25 x 1.50 GR2 MTD-738-04124A
...
8
Cub Cadet SHEAR PINS (2X SNOW) Retail Packaged Part MTD-490-241-C063
...
8
SHEAR PINS QTY 4 Retail Packaged Part MTD-OEM-738-04124
...
9
FLANGE BUSHING MTD-741-0493C
...
10
30" SHAVE PLATE *CHOOSE COLOR WHEN ORDERING* MTD-790-00119
...
...
...
...
...
