Craftsman 21AB40M7799 (247.299301) (2012) Tiller

Model: 21AB40M7799 (247.299301) (2012)

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

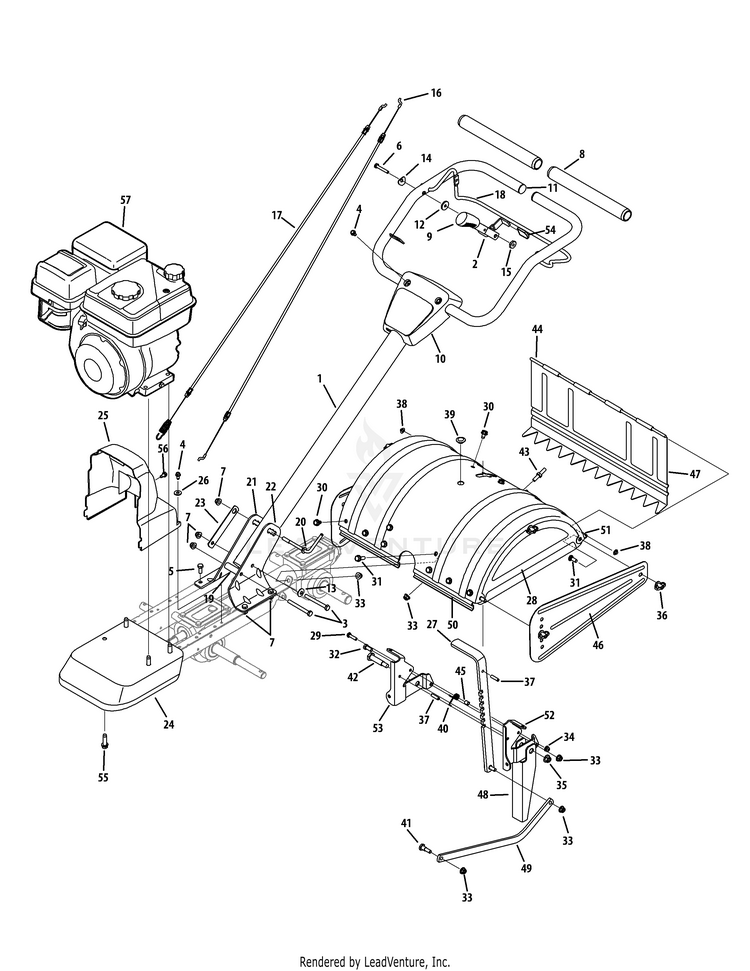

Handle & Tine Shield

...
...
1
UPPER HANDLE ASSEMBLY (CRAFTSMAN RED) MTD-649-04098B-4044
...
2
REVERSE HANDLE ASSEMBLY MTD-686-04135
...
3
Hex Screw, 5/16-18 x 3.00 MTD-710-0189
...
4
Hex Washer Screw, 1/4-20 x 0.500 MTD-710-0599
...
5
SCREW 5/16-18 x .875 GR5 HXFLG HD MTD-710-1238A
...
6
Hex Lock Screw, 1/4-20 x 1.62 MTD-710-3288
...
7
Flange Lock Nut, 5/16-18 MTD-712-04063
...
8
Foam Grip, .970 x 11.0 MTD-720-0278A
...
9
BRAKE HANDLE GRIP MTD-731-04735
...
10
HANDLE COVER W/O SWITCH HOLE MTD-731-06253B
...
11
END PLUG MTD-735-04105A
...
12
Fl-Wash. .27" I.D. x .948" MTD-736-0176
...
13
Bell Washer, .340 x .872 x .060 MTD-736-0242
...
14
Saddle Wash. .32" I.D. MTD-736-0451
...
15
Shoulder Spacer, .375 x .165 MTD-738-0440
...
16
Reverse Cable MTD-946-04504
...
17
Forward Cable MTD-946-04506
...
18
CLUTCH BAIL MTD-747-04789A-0637
...
19
Spacer, .322 x .625 x 2.00 MTD-750-0885A
...
20
Handle Adjustment Crank MTD-786-0340B
...
21
RH Handle Bracket MTD-786-04344-4044
...
22
LH Handle Bracket MTD-786-04345-4044
...
23
400 Nut Retainer Bracket MTD-786-04346
...
24
Front Bumper MTD-786-04360-4044
...
25
Belt Cover MTD-731-06529
...
26
Flat Washer, .28 x .74 x .063 MTD-736-0173
...
27
DEPTH ADJUSTMENT BRACKET MTD-786-04356A-4044
...
28
End Cover Assembly MTD-686-0044B-4044
...
29
SCREW 1/4-20 X1.00 GR5 MTD-710-0597
...
30
Hex Washer Screw, 5/16-18 x 0.625 MTD-710-0604A
...
31
SCREW 5/16-18 x .875 GR5 HXFLG HD MTD-710-1238A
...
32
SCREW 5/16-18 x .75 GR5 MTD-710-3008
...
33
Flange Lock Nut, 5/16-18 MTD-712-04063
...
34
Flange Lock Nut, 1/4-20 MTD-712-04064
...
35
Flange Lock Nut, 3/8-16 MTD-712-04065
...
36
Wing Nut w/ Bell Washer, 5/16-18 MTD-712-0421
...
37
Spring Pin, 1/4 x 1.00 MTD-715-0108
...
38
Cap Speed Nut, 1/4 MTD-926-0106
...
39
Deck Hole Plug MTD-731-05512
...
40
Torsion Spring MTD-732-04320
...
41
Shoulder Screw, 5/16-18 x .405 x .345 MTD-738-04320
...
42
SCREW:SHLDR:0.498X1.630:3/8-16 MTD-738-0533
...
43
Hex Screw, 5/16-18 x .75 MTD-938-0849
...
44
Tiller Flap Rod MTD-747-0432
...
45
Round Spacer, .370 x .260 x .410 MTD-750-05349
...
46
Side Shield MTD-786-0090A-4044
...
47
Rear Tine Shield MTD-786-0113A-4044
...
48
Stop Reverse Arm MTD-786-04092-4044
...
49
Depth Drag Bar MTD-786-04104-4044
...
50
Tine Shield Mount Bracket MTD-786-04352A-4044
...
51
Tine Shield MTD-786-04355A-4044
...
52
LH Tail Bracket MTD-786-04363-4044
...
53
RH Tail Bracket MTD-786-04364-4044
...
54
GRIP MTD-920-04173
...
55
Hex Washer Screw, 3/8-16 x 1.250 MTD-710-0502A
...
56
Hex Washer Screw, 3/8-16 x 1.250 MTD-710-0896
...
57
COMPLETE ENGINE 208cc MTD-952Z170-A0
...
...
...
...
...
