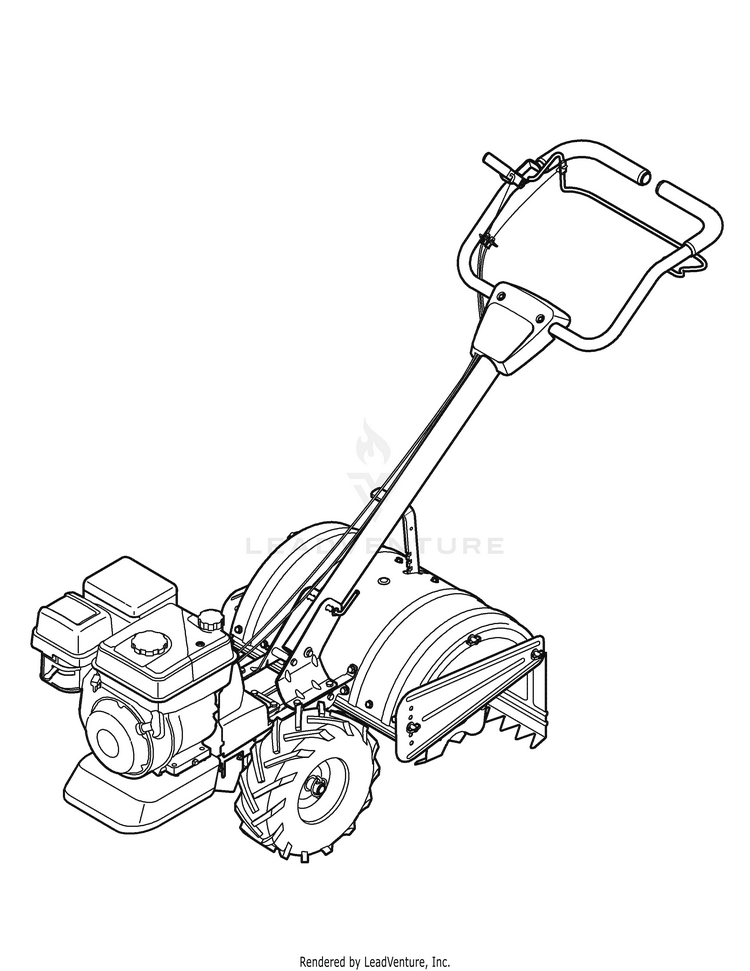

Craftsman 21AB40M1099 (247.29930) (2010) Tiller

Model: 21AB40M1099 (247.29930) (2010)

Save
 Part Not Listed?Part Not Listed?
product name

.Quick Reference

...
...
xx
SPARK PLUG (F6RTC/RN11YC/BPR6ES) MTD-951-10292A
...
xx
Pre Filter MTD-951-10794
...
xx
Air Filter MTD-951-10794
...
xx
Fuel Filter MTD-951-10652
...
xx
FUEL CAP MTD-951-10917B
...
xx
V-Belt, 4L x 25.375 Long MTD-954-04090
...
xx
V-Belt, 3L x 29.125 Long MTD-954-04091
...
xx
Idler Pulley MTD-684-04168
...
xx
Clutch Cable - FWD MTD-946-04506
...
xx
Clutch Cable - REV MTD-946-04504
...
xx
Tine Assembly, LH MTD-642-04071-4044
...
xx
Tine Assembly, RH MTD-642-04072-4044
...
xx
Complete Wheel Assy., 13 x 5 x 6 MTD-934-04652
...
xx
Foam Grip MTD-720-0278A
...
xx
Shift Control Knob MTD-NA
...
xx
Handle Knob MTD-NA

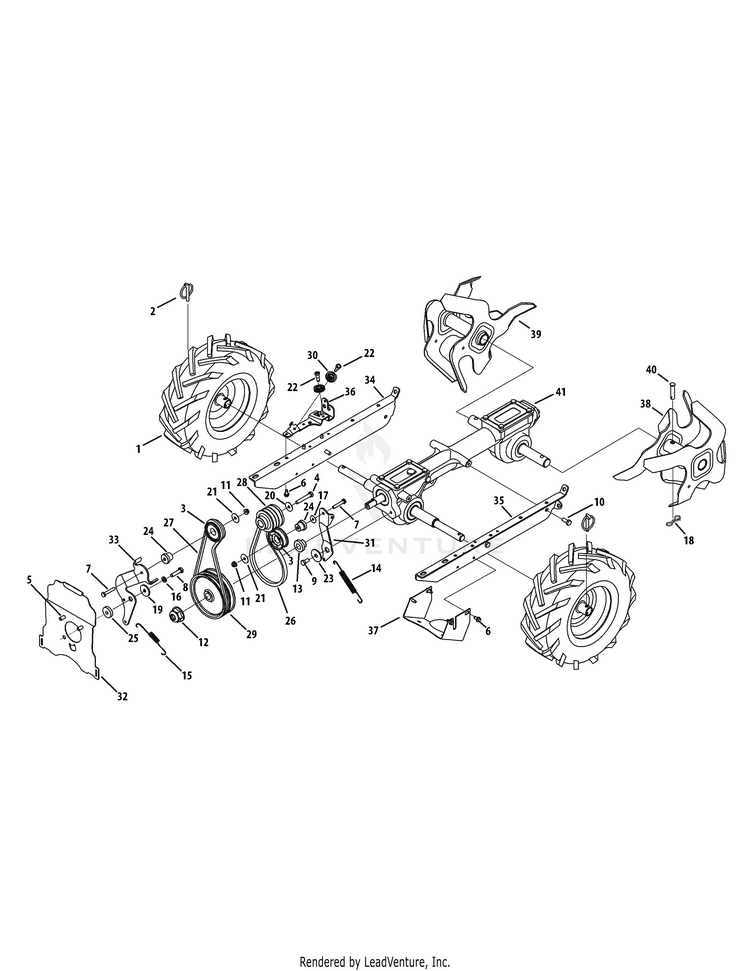

Drive Assembly

...
...
1
Complete Wheel Assy., 13 x 5 x 6 MTD-934-04652
...
2
Klik Pin MTD-714-0143A
...
3
Idler Pulley Assembly MTD-684-04168
...
4
Hex Head Screw, 3/8-24 x 2.00 MTD-710-0151
...
5
Hex Head Screw, 5/16-24 x .625 MTD-710-0170
...
6
Self Tapping Screw, 1/4-20 x .500 MTD-710-0599
...
7
Hex Head Screw, 1/4-20 x 1.50 MTD-710-0606
...
8
Hex Head Screw, 5/16-18 x 1.25 MTD-710-0672
...
9
Hex Head Screw, 5/16-18 x .75, Patch MTD-710-1880
...
10
SCREW 5/16-18 x .75 GR5 MTD-710-3008
...
11
Nylon Hex Lock Nut, 1/4-20 MTD-712-04064
...
12
Nut, 9/16-18, Flange Lock MTD-712-0700
...
13
Hub, 5/8 Spline MTD-718-04407
...
14
Extension Spring, .480 OD X 5.00 LG MTD-732-04085
...
15
Extension Spring, 4.20 LG MTD-732-04276A
...
16
Lock Washer, 5/16 MTD-936-0119
...
17
Washer, .28 x .74 x .063 MTD-736-0173
...
18
Internal Cotter Pin MTD-714-04043
...
19
Flat Washer, .330 X 1.25 X .120 MTD-736-0343
...
20
Bell-Wash. .396" I.D. x 1.14" O.D. MTD-736-0452
...
21
Flat Washer, .265 x 1.0 x .030 MTD-736-3092
...
22
SHOULDER SCREW MTD-738-04425
...
23
Pivot Idler Spacer MTD-748-04087A
...
24
Shoulder Spacer, .260 x .785 x .538 MTD-750-04571
...
25
Pivot Idler Spacer MTD-750-04907
...
26
V-Belt, 4L x 25.375 Long MTD-954-04090
...
27
V-Belt, 3L x 29.125 Long MTD-954-04091
...
28
Engine Pulley MTD-756-04198A
...
29
Transmission Pulley MTD-756-04355
...
30
Cable Roller MTD-756-0625
...
31
Idler Bracket, Forward MTD-786-04312
...
32
Cover Plate MTD-786-04343-4044
...
33
Idler Bracket, Reverse MTD-786-04346
...
34
FRAME (RH) (CRAFTSMAN RED) MTD-786-04416B-4044
...
35
FRAME (LH) (CRAFTSMAN RED) MTD-786-04415D-4044
...
36
CABLE BRACKET ROLLER (CRAFTSMAN RED) MTD-786-04357A-4044
...
37
Pulley Shield MTD-786-04371-4044
...
38
Tine Assembly, LH MTD-642-04071-4044
...
39
Tine Assembly, RH MTD-642-04072-4044
...
40
Clevis Pin MTD-711-0415

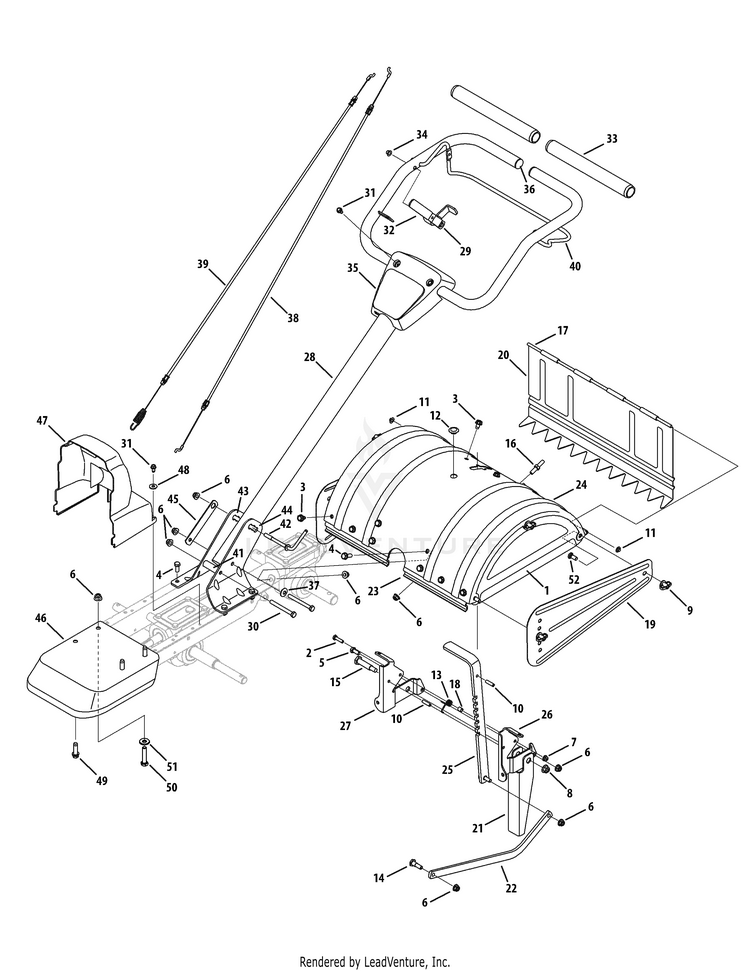

Handle & Tine Shield

...
...
1
End Cover Assembly MTD-686-0044B-4044
...
2
SCREW 1/4-20 X1.00 GR5 MTD-710-0597
...
3
Self Tapping Screw, 5/16-18 x .625 MTD-710-0604A
...
4
SCREW 5/16-18 x .875 GR5 HXFLG HD MTD-710-1238A
...
5
SCREW 5/16-18 x .75 GR5 MTD-710-3008
...
6
Nylon Hex Lock Nut, 5/16-18 MTD-712-04063
...
7
Nylon Hex Lock Nut, 1/4-20 MTD-712-04064
...
8
Flange Lock Nut, 3/8-16 MTD-712-04065
...
9
Wing Nut, 5/16-18 MTD-712-0421
...
10
Spirol Pin MTD-715-0108
...
11
Cap Nut, 1/4 Rod MTD-926-0106
...
12
Hole Plug MTD-731-05512
...
13
Torsion Spring MTD-732-04320
...
14
Shoulder Screw, .405 x .435 5/16-18 MTD-738-04320
...
15
SCREW:SHLDR:0.498X1.630:3/8-16 MTD-738-0533
...
16
Stop Screw MTD-938-0849
...
17
Tiller Flap Rod MTD-747-0432
...
18
Spacer MTD-750-05349
...
19
Side Shield MTD-786-0090A-4044
...
20
Rear Tine Shield MTD-786-0113A-4044
...
21
Stop Reverse Arm MTD-786-04092-4044
...
22
Depth Drag Bar MTD-786-04104-4044
...
23
Tine Shield Mount Bracket MTD-786-04352A-4044
...
24
Tine Shield MTD-786-04355A-4044
...
25
DEPTH ADJUSTMENT BRACKET MTD-786-04356A-4044
...
26
LH Tail Bracket MTD-786-04363-4044
...
27
RH Tail Bracket MTD-786-04364-4044
...
28
UPPER HANDLE ASSEMBLY (CRAFTSMAN RED) MTD-649-04054-4044
...
29
SERVICE REPLACEMENT KIT MTD-753-06955
...
30
Hex Head Screw, 5/16-18 x 3.00 MTD-710-0189
...
31
Self-Tapping Screw, 1/4-20 x 1/2 MTD-710-0599
...
32
Reverse Handle Grip MTD-720-0270A
...
33
Foam Handle Grip MTD-720-0278A
...
34
Cap Nut, .3125 dia. MTD-726-0135
...
35
HANDLE COVER W/O SWITCH HOLE MTD-731-06253B
...
36
END PLUG MTD-735-04105A
...
37
Bell Washer, .340 x .872 x .060 MTD-736-0242
...
38
Reverse Cable MTD-946-04504
...
39
Forward Cable MTD-946-04506
...
40
CLUTCH BAIL MTD-747-04789A-0637
...
41
Spacer, .322 x .625 x 2.00 MTD-750-0885A
...
42
Handle Adjust Crank MTD-786-0340B
...
43
RH Handle Bracket MTD-786-04344-4044
...
44
LH Handle Bracket MTD-786-04345-4044
...
45
Retainer Nut Bracket MTD-786-04358
...
46
Front Bumper MTD-786-04360-4044
...
47
Belt Cover MTD-731-06529
...
48
Flat Washer, .28 x .74 x .063 MTD-736-0173
...
49
SEMS Screw, 3/8-16 MTD-710-0502A
...
50
SCREW 5/16-18 x 1.5 LG MTD-710-0805A
...
51
Bell Washer, .827 x .331 x .098 MTD-736-04193

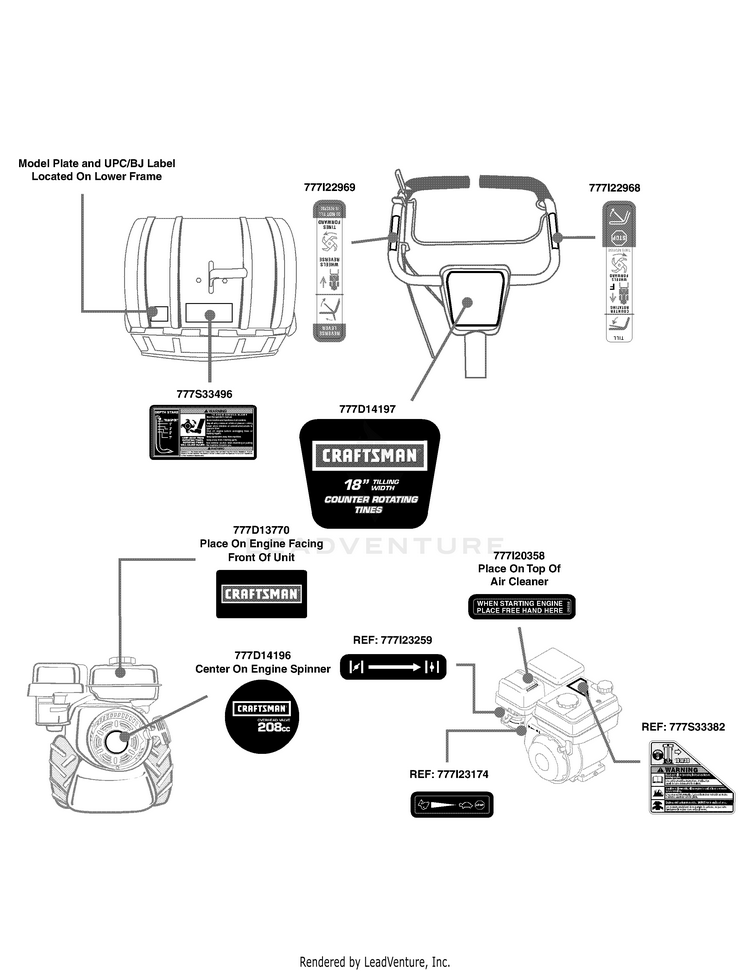

Label Map

...
...
777S33496
LBL:TLR:TNSHLD:WRN/DPTH/SPRK MTD-777S33496
...
777D13770
LABEL-SNOW GAS TANK CRAFTSMAN PRO MTD-777D13770
...
777D14196
LABEL-TILLER ENGINE CRAFTSMAN MTD-777D14196
...
777S33382
LBL:CHR:MTD ENG:WARN/10W30 MTD-777S33382
...
777I23174
LABEL-ENGINE THROTTLE MTD-777I23174
...
777I23259
LBL:CH:MTD ENG:CHOKE MTD-777I23259
...
777I20358
LBL-PLACE HAND HERE MTD-777I20358
...
777D14197
LABEL-TILLER HANDLE CRAFTSMAN MTD-777D14197
...
777I22969
LABEL-TILLER 650 HANDLE/RGHT REV MTD-777I22969
...
777I22968
LABEL-TILLER 640/650 HANDLE MTD-777I22968

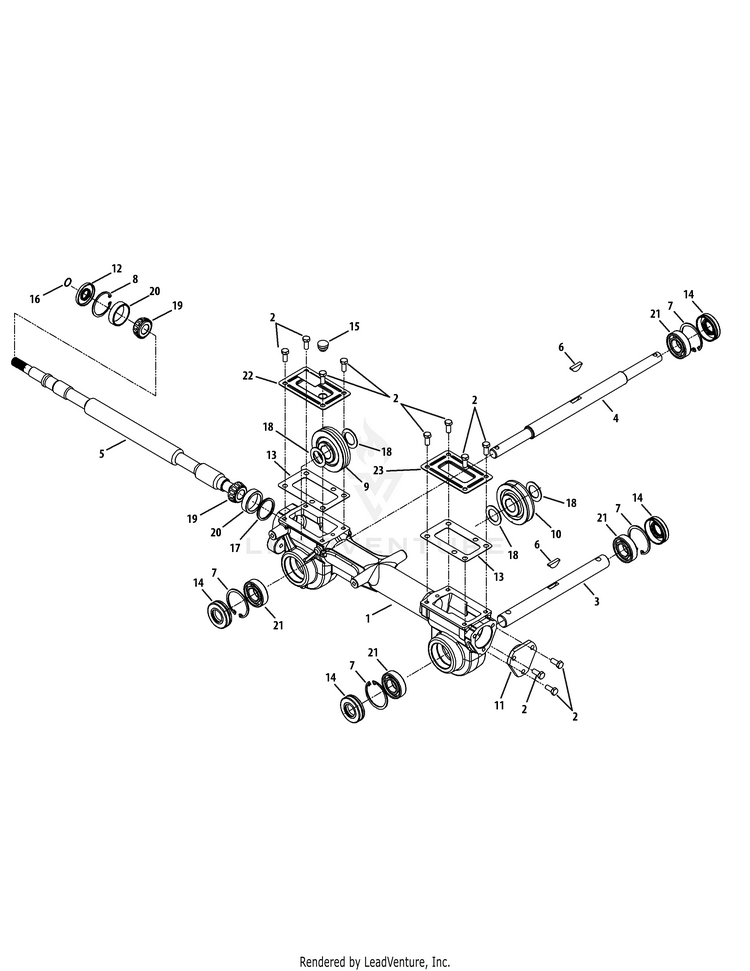

Transmission

...
...
1
Housing, Transmission MTD-919-04184A
...
2
SCREW 5/16-18 x .75 GR5 MTD-710-3008
...
3
Shaft, Tiller MTD-911-04844
...
4
Shaft, Wheel MTD-911-04854
...
5
Shaft, Worm MTD-911-05028
...
6
Key, Hi Pro .25 x 1.062 MTD-714-04059
...
7
Retaining Ring MTD-716-0204
...
8
Retaining Ring, Int MTD-716-04102
...
9
Worm Gear, 61t, RH MTD-917-04380
...
10
Worm Gear, 30t, LH MTD-917-04381
...
11
Bearing Cover MTD-918-04435
...
12
Seal, Oil, .750 Shaft x 1.783 Bore MTD-921-04030
...
13
Gasket, Gear Housing MTD-921-04229
...
14
Seal, Oil, 1.00 Shaft x 2.00 Bore MTD-721-04232
...
15
Rubber Plug, Oil MTD-721-04271
...
16
Wire Ring MTD-732-0614
...
17
Washer, Flat, 1.50 x 1.75 x .062 Washers used to obtain .005 to .015 allowable end play on drive shaft MTD-736-04305
...
17
Washer, Flat, 1.50 x 1.75 x .005 Washers used to obtain .005 to .015 allowable end play on drive shaft MTD-736-04306
...
17
Washer, Flat, 1.50 x 1.75 x .03 Washers used to obtain .005 to .015 allowable end play on drive shaft MTD-736-04307
...
17
Washer, Flat, 1.50 x 1.75 x .010 Washers used to obtain .005 to .015 allowable end play on drive shaft MTD-736-04308
...
18
Washer, Flat, 1.010 x 1.56 x .060 MTD-736-0745
...
19
Cone Bearing MTD-941-04298
...
20
Bearing Cup MTD-941-04299
...
21
Ball Bearing MTD-741-3114
...
22
Cover, Transmission MTD-786-04366
...
23
TRANSMISSION COVER (POWDER BLACK) MTD-786-04392-0637
...
xx
Transmission Assembly Not Shown MTD-918-04815A

Engine Assembly 170-T0A

...
...
1
Bolt, Flange M6 x 16 MTD-710-04968
...
2
Valve Cover MTD-951-11054B
...
2
Valve Cover Furnish 951-11063A, Valve Cover Gasket Kit MTD-951-11054B
...
3
Breather Hose MTD-731-07059
...
4
Breather Hose Clamp MTD-726-04101
...
5
VALVE COVER GASKET MTD-751P11565B
...
5
VALVE COVER GASKET Furnish 951-10798A, Short Block MTD-751P11565B
...
5
VALVE COVER GASKET Furnish 951-11063A, Valve Cover Gasket Kit MTD-751P11565B
...
5
VALVE COVER GASKET Furnish 951-10799, Cylinder Head Assembly MTD-751P11565B
...
5
VALVE COVER GASKET Furnish 951-10819, Cylinder Head Service Kit MTD-751P11565B
...
5
VALVE COVER GASKET Furnish 951-10802A, Gasket Kit Complete MTD-751P11565B
...
6
Nut, Pivot Locking MTD-751-11124
...
7
Valve Adjusting Nut MTD-751-11123
...
7
Valve Adjusting Nut Furnish 951-10799, Cylinder Head Assembly MTD-751-11123
...
8
Rocker Arm Furnish 951-10799, Cylinder Head Assembly MTD-NA
...
9
Rocker Arm Stud MTD-710-04902
...
9
Rocker Arm Stud Furnish 951-10799, Cylinder Head Assembly MTD-710-04902
...
10
Push Rod Guide Furnish 951-10799, Cylinder Head Assembly MTD-NA
...
11
Valve Spring Retainer-Intake Furnish 951-10799, Cylinder Head Assembly MTD-NA
...
12
Exhaust Valve Adjustor Furnish 951-10799, Cylinder Head Assembly MTD-NA
...
13
Valve Spring Retainer-Exhaust Furnish 951-10799, Cylinder Head Assembly MTD-NA
...
14
Valve Spring Furnish 951-10799, Cylinder Head Assembly MTD-NA
...
15
Valve Seal Furnish 951-10819, Cylinder Head Service Kit MTD-NA
...
16
BOLT M8 x 55 MTD-710-05100
...
16
BOLT M8 x 55 Furnish 951-10819, Cylinder Head Service Kit MTD-710-05100
...
17
Cylinder Head Furnish 951-10799, Cylinder Head Assembly MTD-NA
...
18
SPARK PLUG (F6RTC/RN11YC/BPR6ES) MTD-951-10292A
...
19
Muffler Stud MTD-710-04911
...
19
Muffler Stud Furnish 951-10657, Muffler Stud Assembly MTD-710-04911
...
20
Exhaust Pipe Gasket Furnish 951-10798A, Short Block MTD-NA
...
20
Exhaust Pipe Gasket Furnish 951-10799, Cylinder Head Assembly MTD-NA
...
20
Exhaust Pipe Gasket Furnish 951-10801A, Gasket Kit External MTD-NA
...
20
Exhaust Pipe Gasket Furnish 951-10802A, Gasket Kit Complete MTD-NA
...
21
Nut MTD-712-04214
...
22
MUFFLER MTD-751P18511
...
23
HEX FLANGE BOLT M5x10 MTD-710-09956
...
24
Carburetor Stud MTD-710-05101
...
25
CARBURETOR INSULATOR GASKET MTD-751P11567B
...
25
CARBURETOR INSULATOR GASKET Furnish 951-10798A, Short Block MTD-751P11567B
...
25
CARBURETOR INSULATOR GASKET Furnish 951-10799, Cylinder Head Assembly MTD-751P11567B
...
25
CARBURETOR INSULATOR GASKET Furnish 951-10801A, Gasket Kit External MTD-751P11567B
...
25
CARBURETOR INSULATOR GASKET Furnish 951-10802A, Gasket Kit Complete MTD-751P11567B
...
26
INSULATOR MTD-751P11568A
...
26
INSULATOR Furnish 951-10798A, Short Block MTD-751P11568A
...
26
INSULATOR Furnish 951-10799, Cylinder Head Assembly MTD-751P11568A
...
26
INSULATOR Furnish 951-10802A, Gasket Kit Complete MTD-751P11568A
...
27
CARBURETOR GASKET MTD-751P12005B
...
27
CARBURETOR GASKET Furnish 951-10801A, Gasket Kit External MTD-751P12005B
...
27
CARBURETOR GASKET Furnish 951-10802A, Gasket Kit Complete MTD-751P12005B
...
28
Carburetor Assembly (Incl. Ref No. a-x) MTD-951-12785
...
29
CARBURETOR GASKET PLATE MTD-951-11571
...
29
CARBURETOR GASKET PLATE Furnish 951-10798A, Short Block MTD-951-11571
...
29
CARBURETOR GASKET PLATE Furnish 951-10802A, Gasket Kit Complete MTD-951-11571
...
30
Air Cleaner Housing MTD-951-10806
...
31
Nut MTD-712-04213
...
32
Throttle Control Knob MTD-951-11067
...
33
Self-Tapping Bolt M4.2×16 MTD-710-05275
...
35
Lower Housing Furnish 951-10818, Air Cleaner Housing Assembly MTD-NA
...
36
Air Cleaner Foam Wrap Furnish 951-10794, Air Cleaner MTD-NA
...
37
Air Cleaner Element Furnish 951-10794, Air Cleaner MTD-NA
...
37
Genuine Factory Parts AIR FILTER Retail Packaged Part MTD-OEM-751-10794
...
38
Upper Housing Furnish 951-10818, Air Cleaner Housing Assembly MTD-NA
...
39
CYLINDER HEAD GASKET MTD-951-11572
...
39
CYLINDER HEAD GASKET Furnish 951-10798A, Short Block MTD-951-11572
...
39
CYLINDER HEAD GASKET Furnish 951-10799, Cylinder Head Assembly MTD-951-11572
...
39
CYLINDER HEAD GASKET Furnish 951-10819, Cylinder Head Service Kit MTD-951-11572
...
39
CYLINDER HEAD GASKET Furnish 951-10802A, Gasket Kit Complete MTD-951-11572
...
40
Push Rod Kit MTD-951-10648
...
41
Valve Lifter Furnish 951-10798A, Short Block MTD-NA
...
42
Dowel Pin 10×16 MTD-715-04108
...
42
Dowel Pin 10×16 Furnish 951-10799, Cylinder Head Assembly MTD-715-04108
...
43
Exhaust Valve Furnish 951-10799, Cylinder Head Assembly MTD-NA
...
43
Exhaust Valve Furnish 951-10647, Valve Kit MTD-NA
...
44
Intake Valve Furnish 951-10799, Cylinder Head Assembly MTD-NA
...
44
Intake Valve Furnish 951-10647, Valve Kit MTD-NA
...
45
PISTON RING SET MTD-751P12111A
...
45
PISTON RING SET Furnish 951-10798A, Short Block MTD-751P12111A
...
46
Piston Pin Clip Furnish 951-10798A, Short Block MTD-NA
...
47
Piston Furnish 951-10798A, Short Block MTD-NA
...
48
Piston Pin Furnish 951-10798A, Short Block MTD-NA
...
49
Bolt MTD-710-04915
...
50
Air Shield MTD-951-11113
...
51
CONNECTING ROD MTD-751P11573A
...
51
CONNECTING ROD Furnish 951-10798A, Short Block MTD-751P11573A
...
52
Governor Shaft MTD-951-14053
...
52
Governor Shaft Furnish 951-10798A, Short Block MTD-951-14053
...
52
Governor Shaft Furnish 951-11588, Crankcase Kit MTD-951-14053
...
53
Governor Shaft O-Ring MTD-736-04461
...
53
Governor Shaft O-Ring Furnish 951-10798A, Short Block MTD-736-04461
...
53
Governor Shaft O-Ring Furnish 951-11588, Crankcase Kit MTD-736-04461
...
53
Governor Shaft O-Ring Furnish 951-10802A, Gasket Kit Complete MTD-736-04461
...
54
OIL SEAL MTD-951-11902A
...
54
OIL SEAL Furnish 951-10798A, Short Block MTD-951-11902A
...
54
OIL SEAL Furnish 951-11588, Crankcase Kit MTD-951-11902A
...
55
Cotter Pin MTD-714-04078
...
55
Cotter Pin Furnish 951-10798A, Short Block MTD-714-04078
...
55
Cotter Pin Furnish 951-11588, Crankcase Kit MTD-714-04078
...
56
CAMSHAFT ASSEMBLY MTD-951-11575
...
56
CAMSHAFT ASSEMBLY Furnish 951-10798A, Short Block MTD-951-11575
...
57
Radial Ball Bearing MTD-951-11369
...
57
Radial Ball Bearing Furnish 951-10798A, Short Block MTD-951-11369
...
57
Radial Ball Bearing Furnish 951-11587 Crankshaft Kit MTD-951-11369
...
57
Radial Ball Bearing Furnish 951-11586, Crankcase Cover Kit MTD-951-11369
...
57
Radial Ball Bearing Furnish 951-11588, Crankcase Kit MTD-951-11369
...
58
Crankshaft Assembly Furnish 951-10798A, Short Block MTD-NA
...
58
Crankshaft Assembly Furnish 951-11587 Crankshaft Kit MTD-NA
...
59
WOODRUFF KEY MTD-751P10307A
...
59
WOODRUFF KEY Furnish 951-11587 Crankshaft Kit MTD-751P10307A
...
60
GOVERNOR GEAR MTD-751P11576A
...
60
GOVERNOR GEAR Furnish 951-10798A, Short Block MTD-751P11576A
...
61
DOWEL PIN 9 X 14 MTD-715-04096A
...
61
DOWEL PIN 9 X 14 Furnish 951-10798A, Short Block MTD-715-04096A
...
62
Dowel Pin, 9 x 14 MTD-715-04089
...
62
Dowel Pin, 9 x 14 Furnish 951-10798A, Short Block MTD-715-04089
...
63
CRANKCASE GASKET MTD-751P11371B
...
63
CRANKCASE GASKET Furnish 951-10798A, Short Block MTD-751P11371B
...
63
CRANKCASE GASKET Furnish 951-11587 Crankshaft Kit MTD-751P11371B
...
63
CRANKCASE GASKET Furnish 951-11586, Crankcase Cover Kit MTD-751P11371B
...
63
CRANKCASE GASKET Furnish 951-10802A, Gasket Kit Complete MTD-751P11371B
...
64
Crankcase Cover Furnish 951-10798A, Short Block MTD-NA
...
64
Crankcase Cover Furnish 951-11586, Crankcase Cover Kit MTD-NA
...
65
Bolt MTD-710-04932
...
65
Bolt Furnish 951-10798A, Short Block MTD-710-04932
...
65
Bolt Furnish 951-11586, Crankcase Cover Kit MTD-710-04932
...
66
O-RING 15.8 x 2.5 MTD-951-11577
...
66
O-RING 15.8 x 2.5 Furnish 951-10798A, Short Block MTD-951-11577
...
66
O-RING 15.8 x 2.5 Furnish 951-10801A, Gasket Kit External MTD-951-11577
...
66
O-RING 15.8 x 2.5 Furnish 951-10669, Oil Fill Plug Assembly MTD-951-11577
...
66
O-RING 15.8 x 2.5 Furnish 951-10802A, Gasket Kit Complete MTD-951-11577
...
67
Oil Filler Plug Furnish 951-10798A, Short Block MTD-NA
...
67
Oil Filler Plug Furnish 951-10669, Oil Fill Plug Assembly MTD-NA
...
68
OIL SEAL 25 x 41.25 x 6 MTD-951-11578
...
68
OIL SEAL 25 x 41.25 x 6 Furnish 951-10798A, Short Block MTD-951-11578
...
68
OIL SEAL 25 x 41.25 x 6 Furnish 951-11587 Crankshaft Kit MTD-951-11578
...
68
OIL SEAL 25 x 41.25 x 6 Furnish 951-11586, Crankcase Cover Kit MTD-951-11578
...
68
OIL SEAL 25 x 41.25 x 6 Furnish 951-11588, Crankcase Kit MTD-951-11578
...
68
OIL SEAL 25 x 41.25 x 6 Furnish 951-10802A, Gasket Kit Complete MTD-951-11578
...
69
Crankcase Complete Furnish 951-10798A, Short Block MTD-NA
...
69
Crankcase Complete Furnish 951-11588, Crankcase Kit MTD-NA
...
70
FLAT WASHER MTD-736-04440A
...
70
FLAT WASHER Furnish 951-10798A, Short Block MTD-736-04440A
...
70
FLAT WASHER Furnish 951-10801A, Gasket Kit External MTD-736-04440A
...
70
FLAT WASHER Furnish 951-10802A, Gasket Kit Complete MTD-736-04440A
...
71
Oil Drain Plug MTD-710-04906
...
71
Oil Drain Plug Furnish 951-10798A, Short Block MTD-710-04906
...
73
Ignition Coil MTD-951-10792
...
74
Bolt MTD-710-04919
...
75
Flywheel MTD-951-10805
...
76
COOLING FAN MTD-951-10909B
...
77
Starter Cup MTD-951-10911
...
78
Flywheel Nut M14 MTD-712-04287
...
81
BLOWER HOUSING MTD-951-11583
...
82
FLAT WASHER MTD-736-04455B
...
83
Bolt MTD-710-04914
...
84
Recoil Starter Assembly MTD-951-10790
...
85
PRIMER BRACKET MTD-951-11584
...
86
Bolt MTD-710-05103
...
87
Governor Spring MTD-951-11585
...
88
THROTTLE SPRING MTD-751P10664A
...
89
THROTTLE LINKAGE MTD-751P10665A
...
90
Governor Arm MTD-951-11106
...
91
Nut M6 MTD-712-05015
...
92
Governor Arm Bolt MTD-710-04908
...
94
Fuel Hose Furnish 951-10650, Fuel Line Kit MTD-NA
...
95
Hose Clamp Furnish 951-10650, Fuel Line Kit MTD-NA
...
97
ENGINE/DIPSTICK COVER MTD-951-10662
...
98
Bolt MTD-710-04905
...
100
O-Ring MTD-951-11380
...
101
Dipstick Assembly MTD-631-05020AP
...
102
Dipstick Gauge Furnish 951-10655, Dipstick Assembly MTD-NA
...
103
Dipstick Cap Furnish 951-10655, Dipstick Assembly MTD-NA
...
105
FUEL CAP (Incl. Gasket & Retainer) MTD-951-10917B
...
106
Fuel Filter MTD-951-10652
...
107
Fuel Tank MTD-951-12159
...
108
Fuel Tank Nipple MTD-951-10651
...
109
Bolt MTD-710-04918
...
110
Blower Housing Shield MTD-951-11109
...
a
CHOKE CONTROL LEVER MTD-751P20448
...
a
CHOKE CONTROL LEVER Furnish 951-10797, Carburetor Assembly MTD-751P20448
...
a
CHOKE CONTROL LEVER Furnish 951-10800A, Carburetor Kit Major MTD-751P20448
...
b
Choke Shaft Furnish 951-10797, Carburetor Assembly MTD-NA
...
c
Choke Plate Furnish 951-10797, Carburetor Assembly MTD-NA
...
d
Throttle Shaft Furnish 951-10797, Carburetor Assembly MTD-NA
...
e
Throttle Plate Furnish 951-10797, Carburetor Assembly MTD-NA
...
f
Screw Furnish 951-10797, Carburetor Assembly MTD-NA
...
g
Lock Washer Furnish 951-10797, Carburetor Assembly MTD-NA
...
h
Idle Jet Assembly Furnish 951-10797, Carburetor Assembly MTD-NA
...
h
Idle Jet Assembly Furnish 951-10800A, Carburetor Kit Major MTD-NA
...
i
Throttle Plate Gasket Furnish 951-10797, Carburetor Assembly MTD-NA
...
i
Throttle Plate Gasket Furnish 951-10800A, Carburetor Kit Major MTD-NA
...
j
Idle Speed Adjusting Screw Furnish 951-10797, Carburetor Assembly MTD-NA
...
j
Idle Speed Adjusting Screw Furnish 951-10800A, Carburetor Kit Major MTD-NA
...
k
Mixture Screw Furnish 951-10797, Carburetor Assembly MTD-NA
...
l
Carburetor Body Furnish 951-10797, Carburetor Assembly MTD-NA
...
m
Float Pin Furnish 951-10797, Carburetor Assembly MTD-NA
...
m
Float Pin Furnish 951-10800A, Carburetor Kit Major MTD-NA
...
n
Main Nozzle Furnish 951-10797, Carburetor Assembly MTD-NA
...
n
Main Nozzle Furnish 951-10800A, Carburetor Kit Major MTD-NA
...
o
Needle Valve (Float) Furnish 951-10797, Carburetor Assembly MTD-NA
...
o
Needle Valve (Float) Furnish 951-10800A, Carburetor Kit Major MTD-NA
...
p
Main Jet Furnish 951-10797, Carburetor Assembly MTD-NA
...
p
Main Jet Furnish 951-10800A, Carburetor Kit Major MTD-NA
...
q
Needle Valve Spring Furnish 951-10797, Carburetor Assembly MTD-NA
...
q
Needle Valve Spring Furnish 951-10800A, Carburetor Kit Major MTD-NA
...
r
Float Furnish 951-10797, Carburetor Assembly MTD-NA
...
r
Float Furnish 951-10800A, Carburetor Kit Major MTD-NA
...
s
Fuel Bowl Gasket MTD-951-11589
...
s
Fuel Bowl Gasket Furnish 951-10797, Carburetor Assembly MTD-951-11589
...
s
Fuel Bowl Gasket Furnish 951-10800A, Carburetor Kit Major MTD-951-11589
...
t
Fuel Bowl Furnish 951-10797, Carburetor Assembly MTD-NA
...
u
FUEL BOWL BOLT GASKET NLAUD MTD-710-04904
...
u
FUEL BOWL BOLT GASKET NLAUD Furnish 951-10797, Carburetor Assembly MTD-710-04904
...
u
FUEL BOWL BOLT GASKET NLAUD Furnish 951-10800A, Carburetor Kit Major MTD-710-04904
...
v
Fuel Bowl Mounting Bolt MTD-710-04945
...
v
Fuel Bowl Mounting Bolt Furnish 951-10797, Carburetor Assembly MTD-710-04945
...
w
FUEL DRAIN PLUG GASKET MTD-951-11349A
...
w
FUEL DRAIN PLUG GASKET Furnish 951-10797, Carburetor Assembly MTD-951-11349A
...
w
FUEL DRAIN PLUG GASKET Furnish 951-10800A, Carburetor Kit Major MTD-951-11349A
...
x
FUEL DRAIN PLUG MTD-710-04938
...
x
FUEL DRAIN PLUG Furnish 951-10797, Carburetor Assembly MTD-710-04938
...
xx
SPARK ARRESTOR (Not Shown) MTD-951-10829
...
xx
SHORTBLOCK ASSEMBLY (Not Shown) (Incl. Ref No. 5, 20, 25, 26, 29, 39, 41, 45-48, 51-58, 60-71) MTD-951-10798A
...
xx
CRANKSHAFT KIT (Not Shown) (Incl. Ref No. 57-59, 63, 68) MTD-951-11587
...
xx
Valve Cover Kit (Not Shown) (Incl. Ref No. 2, 5) MTD-951-12626
...
xx
Cylinder Head Assembly (Not Shown) (Incl. Ref No. 5, 7-14, 17,20, 25, 26, 39, 42-44) MTD-951-10799
...
xx
CRANKCASE COVER KIT (Not Shown) (Incl. Ref No. 57, 63-65, 68) MTD-951-11586
...
xx
CRANKCASE KIT (Not Shown) (Incl. Ref No. 52-55, 57, 68, 69) MTD-951-11588
...
xx
Gasket Kit - External (Not Shown) (Incl. Ref No. 20, 25, 27, 66, 70) MTD-951-10801A
...
xx
Air Cleaner Housing Assembly (Not Shown) (Incl. Ref No. 35, 38) MTD-951-10818
...
xx
CARBURETOR REBUILD KIT (Not Shown) (Incl. Ref No. a, h-j, m-s, u, w) MTD-951-12783
...
xx
Valve Kit (Not Shown) (Incl. Ref No. 43, 44) MTD-951-10647A
...
xx
Dipstick Assembly (Not Shown) (Incl. Ref No. 102, 103) MTD-631-05020AP
...
xx
Oil Fill Plug Assembly (Not Shown) (Incl. Ref No. 66, 67) MTD-951-10669
...
xx
Fuel Line Kit (Not Shown) (Incl. Ref No. 94, 95) MTD-951-10650
...
xx
Muffler Stud Assembly (Not Shown) (Incl. Ref No. 19) MTD-951-10657
...
xx
Cylinder Head Service Kit (Not Shown) (Incl. Ref No. 5, 15, 16, 39) MTD-951-10819
...
xx
Air Cleaner (Not Shown) (Incl. Ref No. 36, 37) MTD-951-10794
...
xx
Genuine Factory Parts AIR FILTER Retail Packaged Part MTD-OEM-751-10794
...
xx
GASKET KIT (COMPLETE) (Not Shown) (Incl. Ref No. 5, 20, 25-27, 29, 39, 53, 63, 66, 68, 70) MTD-951-10802A
...
xx
Recoil Spring & Pulley Assembly (Not Shown) (Incl. Pulley & Spring) MTD-951-10826
...
xx
Starter Pulley (Not Shown) Furnish 951-10826, Recoil Spring & Pulley Assembly MTD-NA
...
xx
Recoil Spring (Not Shown) Furnish 951-10826, Recoil Spring & Pulley Assembly MTD-NA
...
xx
Gasket (Not Shown) Furnish 951-10917, Fuel Cap MTD-NA
...
xx
Gasket Retainer (Not Shown) Furnish 951-10917, Fuel Cap MTD-NA
...
xx
COMPLETE ENGINE 208cc (Not Shown) MTD-952Z170-A0
...
...
...
...
...
Processing
