Craftsman 21A-34M8799 340 Series (2016) 340 Series 21A-34M8799 (2016) Tiller

Model: 21A-34M8799 340 Series (2016)

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

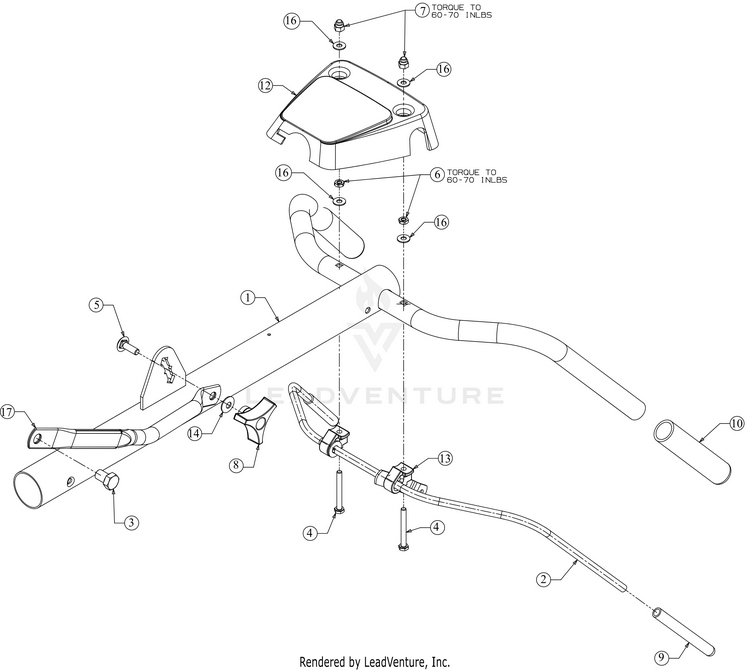

Handle Assembly

...
...
1
HANDLE ASSEMBLY MTD-649-04040-4044
...
2
CLUTCH HANDLE ASSEMBLY MTD-686-0083-0637
...
3
BOLT 1/2-20 X .75 GR5 MTD-710-06053
...
4
SCREW 1/4-20 X 2.25 GR5 MTD-710-0641
...
5
SCREW 5/16-18 X 1.00 MTD-710-1236
...
6
HEX NUT MTD-912-0298
...
7
Acorn Lock Nut 1/4-20 MTD-712-0442
...
8
HANDLE KNOB MTD-720-0195
...
9
CLUTCH GRIP MTD-720-0269
...
10
GRIP MTD-720-0274
...
11
ADHESIVE (Not Shown) MTD-NA
...
12
HANDLE COVER W/O SWITCH HOLE MTD-731-06253B
...
13
HANDLE CLUTCH HOLDER MTD-931-1645B
...
14
BELL WASHER .337 X.867 X .057 MTD-736-0242
...
15
Fl-Wash. .385" I.D. x 7/8" MTD-736-0300
...
16
Flat Washer .271" I.D. x .630" O.D. MTD-736-3020
...
17
Handle Brace MTD-749-1401A-0691
...
...
...
...
...
