Craftsman 21A-34M8799 340 Series (2016) 340 Series 21A-34M8799 (2016) Tiller

Model: 21A-34M8799 340 Series (2016)

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

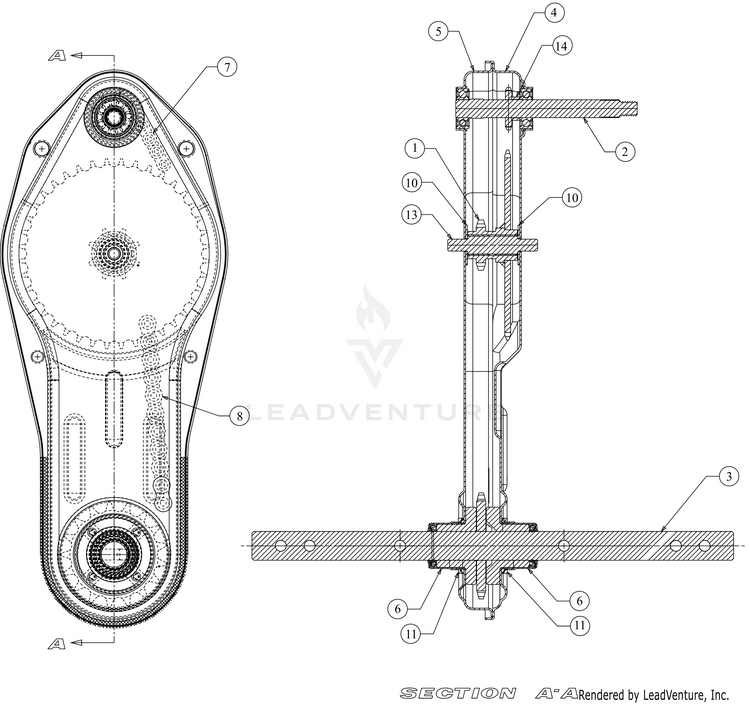

Chain Case

...
...
1
N/A (Not Serviceable; Order Part Number 986-0091B) MTD-NA
...
2
N/A (Not Serviceable; Order Part Number 986-0091B) MTD-NA
...
3
N/A (Not Serviceable; Order Part Number 986-0091B) MTD-NA
...
4
N/A (Not Serviceable; Order Part Number 986-0091B) MTD-NA
...
4
RIVET (Not Shown) MTD-728-0131
...
4
GROOVE BALL BEARING (Not Shown) MTD-741-0145
...
5
N/A (Not Serviceable; Order Part Number 986-0091B) MTD-NA
...
5
RIVET (Not Shown) MTD-728-0131
...
5
GROOVE BALL BEARING (Not Shown) MTD-741-0145
...
6
N/A (Not Serviceable; Order Part Number 986-0091B) MTD-NA
...
7
#420 CHAIN 1/2 PITCH MTD-913-0312
...
8
#50 CHAIN 5/8 PITCH MTD-913-0328
...
9
N/A (Not Shown) MTD-NA
...
10
FLAT WASHER MTD-936-0406
...
11
N/A (Not Serviceable; Order Part Number 986-0091B) MTD-NA
...
12
GREASE (Not Shown) MTD-NA
...
13
N/A (Not Serviceable; Order Part Number 986-0091B) MTD-NA
...
14
N/A (Not Serviceable; Order Part Number 986-0091B) MTD-NA
...
...
...
...
...
