Craftsman 21A-34M8799 247.299342 (2018) Tiller

Model: 21A-34M8799 247.299342 (2018)

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

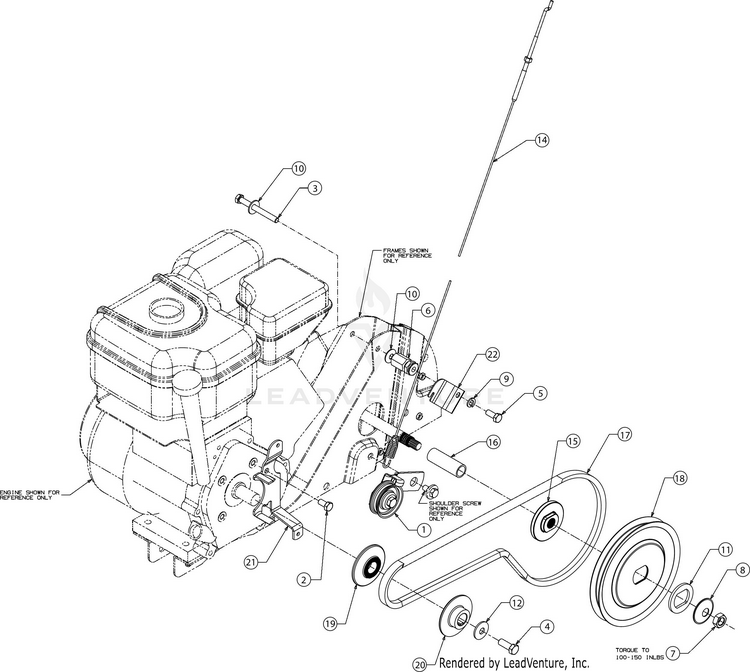

Drive

...
...
1
IDLER BRACKET ASSEMBLY MTD-686-0088
...
1
SCREW 3/8-16 X 1.25 GR5 MTD-710-3005
...
1
JAM LOCK NUT MTD-712-0266A
...
1
IDLER PULLEY MTD-756-0313
...
1
IDLER BRACKET MTD-786-0144-0637
...
1
BELT KEEPER MTD-786-0149
...
2
HEX SCREW 5/16-24 X .62 MTD-710-0170
...
3
HEX SCREW 5/16-18 X 3.00 MTD-710-0189
...
4
SCREW 3/8-24 X 1.00 GR8 MTD-710-1039
...
5
SCREW 5/16-18 x .75 GR5 MTD-710-3008
...
6
SPECIAL HEX NUT MTD-711-1036A
...
7
NUT MTD-712-3029
...
8
BELL WASHER .535 ID X1.50 OD X.052 MTD-736-0112
...
9
LOCK WASHER 5/16 MTD-936-0119
...
10
BELL WASHER .337 X.867 X .057 MTD-736-0242
...
11
RETAINING WASHER MTD-736-0312
...
12
Bell-Wash. .396" I.D. x 1.14" O.D. MTD-736-0452
...
14
CABLE MTD-946-0918
...
15
PULLEY MOUNTING ADAPTER MTD-948-0350
...
16
SPACER MTD-950-0892
...
17
V-BELT MTD-954-0428
...
18
PULLEY MTD-756-0585
...
19
ENGINE PULLEY INNER HALF MTD-756-0971
...
20
ENGINE PULLEY OUTER HALF MTD-756-0972
...
21
BELT COVER BRACKET MTD-786-0039B-0637
...
22
CABLE BRACKET GUIDE MTD-786-0129-0637
...
...
...
...
...
