Craftsman 21A-34M8799 (247.299342) (2015) Tiller

Model: 21A-34M8799 (247.299342) (2015)

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

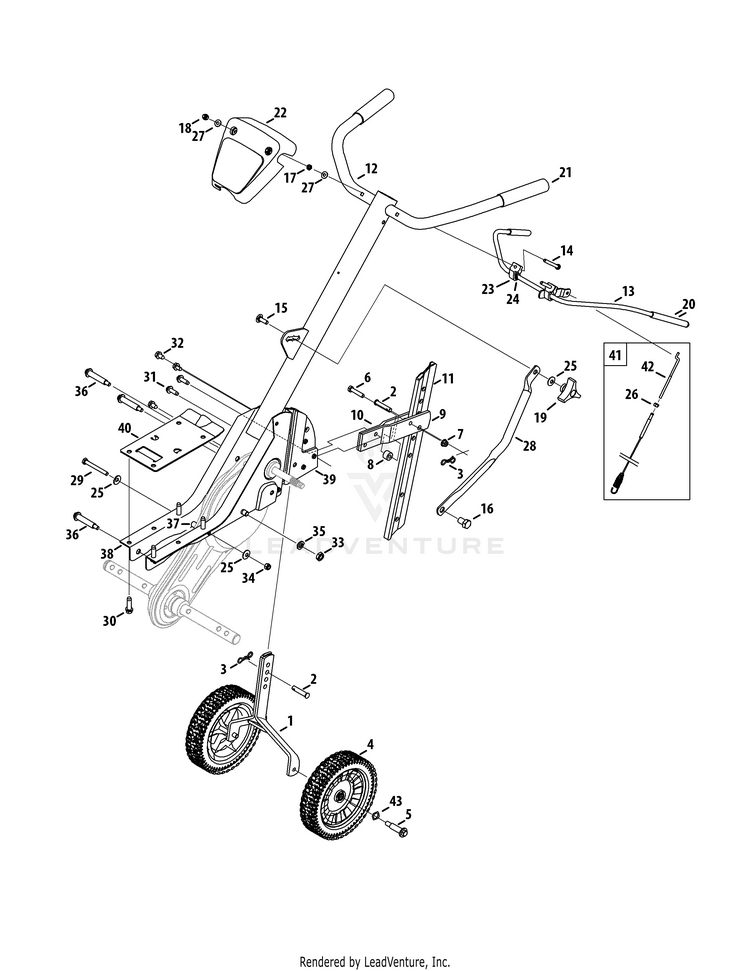

General Assembly

...
...
1
Wheel Bracket Assembly MTD-686-0081A-0637
...
2
Clevis Pin MTD-711-0415
...
3
Cotter Pin MTD-714-04043
...
4
Wheel Assembly, 8 x 1.75 MTD-734-04547
...
5
Shoulder Screw, 3/8-16 x .496 x 1.445 MTD-738-0929
...
6
Hex Screw, 5/16-18 x 1.50 MTD-710-0805A
...
7
Flange Lock Nut, 5/16-18 MTD-712-04063
...
8
Spacer, .325 x .75 x .520 MTD-750-0890
...
9
LH Tail Bracket MTD-786-0003-0637
...
10
RH Tail Bracket MTD-786-0004-0637
...
11
Depth Bar MTD-786-0005-0637
...
12
Handle Assembly MTD-649-04040-4044
...
13
Clutch Bail MTD-686-0083-0637
...
14
Hex Screw, 1/4-20 x 2.25 MTD-710-0641
...
15
Carriage Screw, 5/16-18 x 1.00 MTD-710-1236
...
16
Hex Screw, 1/2-20 x .750 MTD-710-06053
...
17
Jam Nut, 1/4-20 MTD-912-0298
...
18
Acorn Lock Nut 1/4-20 MTD-712-0442
...
19
Handle Knob MTD-720-0195
...
20
Grip, Clutch Bail MTD-720-0269
...
21
Grip, Handle MTD-720-0274
...
22
HANDLE COVER W/O SWITCH HOLE MTD-731-06253B
...
23
Clutch Bail Holder MTD-931-1645B
...
24
Fl-Wash. .385" I.D. x 7/8" MTD-736-0300
...
25
Bell Washer, .340 x .872 x .060 MTD-736-0242
...
26
Hex Nut #10-24 Thd. MTD-712-0121
...
27
Flat Washer .271" I.D. x .630" O.D. MTD-736-3020
...
28
Handle Brace MTD-749-1401A-0691
...
29
Hex Screw, 5/16-18 x 3.00 MTD-710-0189
...
30
SEMS Screw, 3/8-16 MTD-710-0502A
...
31
Self-Tapping Screw, 5/16-18 x 1.00 MTD-710-0602
...
32
SCREW 5/16-18 x .750 MTD-710-04484
...
33
Jam Nut, 7/16-20 MTD-912-0240
...
34
Flange Lock Nut, 5/16-18 MTD-712-04063
...
35
Lock Washer, 7/16 MTD-936-0171
...
36
Shoulder Screw, 5/16-18 x .475 x 2.11 MTD-738-0934A
...
37
Spacer, .47 x .96 MTD-750-0470
...
38
RH Frame MTD-786-0138A-4044
...
39
LH Frame MTD-786-0139A-4044
...
40
Engine Mounting Plate MTD-786-0145A-4044
...
41
Forward Clutch Cable MTD-946-0918
...
42
Z-Fitting (inc. #43) MTD-946-0778
...
43
Wave Washer .53" I.D. MTD-736-0232
...
...
...
...
...
