Craftsman 21A-34M8799 (247.299342) (2015) Tiller

Model: 21A-34M8799 (247.299342) (2015)

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

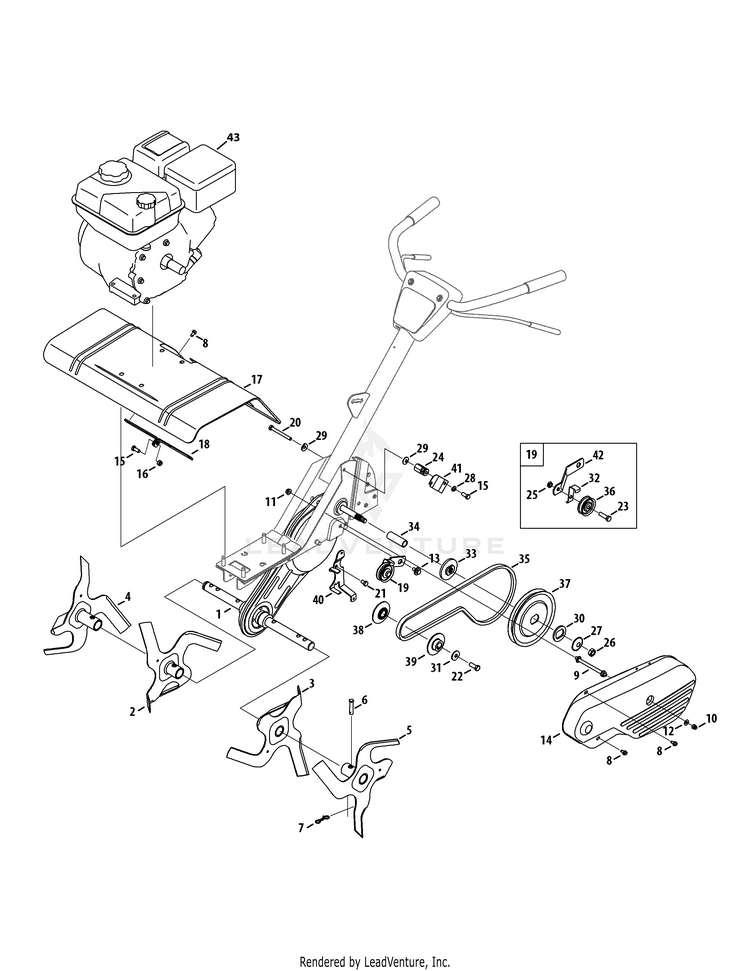

Drive Assembly

...
...
1
CHAIN CASE MTD-986-0091C
...
2
RH Inner Tine Assembly MTD-642-0002-0637
...
3
LH Inner Tine Assembly MTD-642-0003-0637
...
4
RH Outer Tine Assembly MTD-642-0004-0637
...
5
LH Outer Tine Assembly MTD-642-0005-0637
...
6
Clevis Pin MTD-711-0415
...
7
Bow Tie Cotter Pin MTD-714-04043
...
8
Screw, 1/4-20 x 0.500 MTD-710-0599
...
9
Belt Cover Bolt MTD-711-0919
...
10
Acorn Lock Nut 1/4-20 MTD-712-0442
...
11
HEX FLANGE NUT MTD-712-3004A
...
12
Flat Washer .271" I.D. x .630" O.D. MTD-736-3020
...
13
Shoulder Screw, 5/16-18 x .560 x .165 MTD-738-0930
...
14
Belt Cover MTD-786-0056-4044
...
15
SCREW 5/16-18 x .75 GR5 MTD-710-3008
...
16
Flange Lock Nut, 5/16-18 MTD-712-04063
...
17
Tine Shield MTD-786-0043A-4044
...
18
Tine Shield Bracket MTD-786-0053-0637
...
19
Idler Bracket Assembly MTD-686-0088
...
20
Hex Screw, 5/16-18 x 3.00 MTD-710-0189
...
21
Hex Screw, 5/16-24 x .625 MTD-710-0170
...
22
Hex Screw, 3/8-24 x 1.00 MTD-710-1039
...
23
Hex Screw, 3/8-16 x 1.25 MTD-710-3005
...
24
Hex Nut, 5/16-18 MTD-711-1036A
...
25
Jam Nut, 3/8-16 MTD-712-0266A
...
26
Jam Nut, 1/2-20 MTD-712-3029
...
27
Washer, .531 x 1.62 x .045 MTD-736-0112
...
28
Lock Washer, 5/16 MTD-936-0119
...
29
Bell Washer, .340 x .872 x .060 MTD-736-0242
...
30
Flat Washer, 1.26 x 1.87 x .150 MTD-736-0312
...
31
Bell-Wash. .396" I.D. x 1.14" O.D. MTD-736-0452
...
32
Belt Keeper MTD-786-0149
...
33
Pulley Adaptor MTD-948-0350
...
34
Spacer, .64 x 2.4 MTD-950-0892
...
35
Belt MTD-954-0428
...
36
Pulley, 1.88 MTD-756-0313
...
37
Pulley, 6.00 MTD-756-0585
...
38
Inner Engine Pulley MTD-756-0971
...
39
Outer Engine Pulley MTD-756-0972
...
40
Belt Keeper Bracket MTD-786-0039B-0637
...
41
Cable Guide Bracket MTD-786-0129-0637
...
42
Idler Bracket MTD-786-0144-0637
...
...
...
...
...
