Craftsman 21A-34M8799 (247.299341) (2012) Tiller

Model: 21A-34M8799 (247.299341) (2012)

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

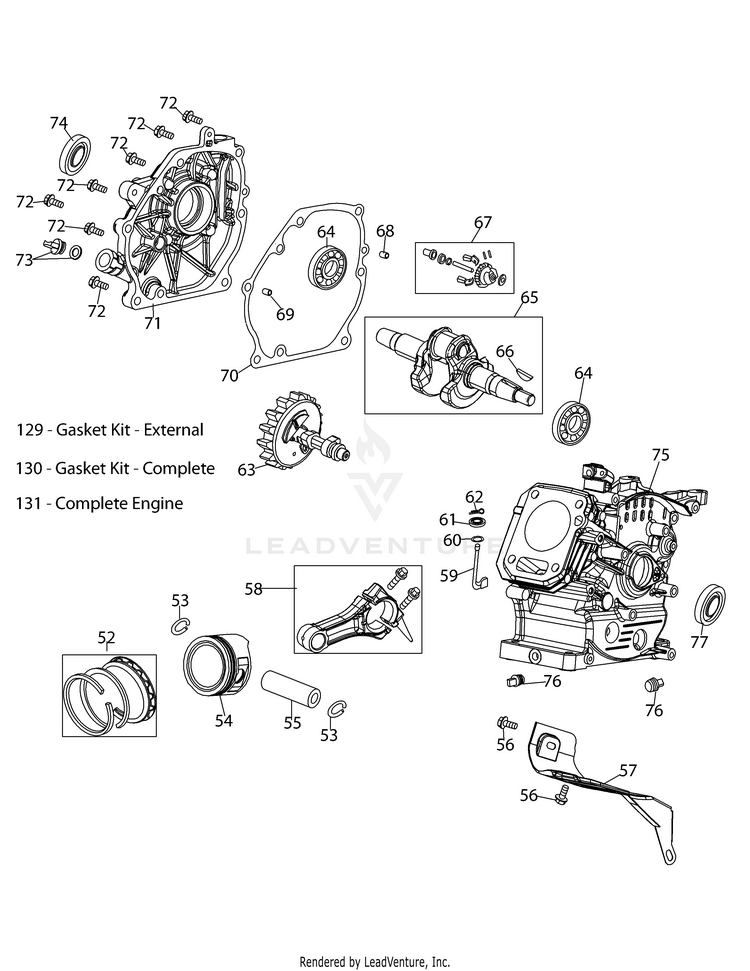

170-VU Crankshaft & Crankcase

...
...
52
PISTON RING SET MTD-751P12111A
...
53
PISTON PIN SNAP RING MTD-951-11632
...
54
Piston MTD-951-12007
...
55
PISTON PIN MTD-951-11633
...
56
Bolt M6×12 MTD-710-04915
...
57
Air Shield MTD-951-11113
...
58
CONNECTING ROD MTD-751P11573A
...
59
Governor Shaft MTD-951-14053
...
60
Washer 5.2×1.9 MTD-736-04461
...
61
OIL SEAL MTD-951-11902A
...
62
Cotter Pin MTD-714-04078
...
63
CAMSHAFT ASSEMBLY MTD-951-11575
...
64
Radial Ball Bearing, 6205 MTD-951-11369
...
65
Crankshaft Assembly MTD-951-12160
...
66
WOODRUFF KEY MTD-751P10307A
...
67
GOVERNOR GEAR MTD-751P11576A
...
68
DOWEL PIN 9 X 14 MTD-715-04096A
...
69
Dowel Pin 9×14 MTD-715-04089
...
70
CRANKCASE GASKET MTD-751P11371B
...
71
CRANKCASE COVER MTD-951-12125A
...
72
Bolt M8×32 MTD-710-04932
...
73
Oil Plug MTD-951-11283
...
74
OIL SEAL 25 x 41.25 x 6 MTD-951-11578
...
75
Shortblock Assembly (Incl.6,22,29,30,46,48,49,52,53,55,58-72,74-77) MTD-951-05031
...
76
Oil Drain Plug MTD-951-12514A
...
77
Oil Seal 25×41.25×6 MTD-951-12126
...
129
Gasket Kit-External (Incl.6,22,29-31,33) MTD-951-12026A
...
130
Gasket Kit - Complete (Incl.6,22,29-31,33,46,60,61,70,74,77) MTD-951-12572
...
131
COMPLETE ENGINE 208cc MTD-952Z170-A0
...
...
...
...
...
