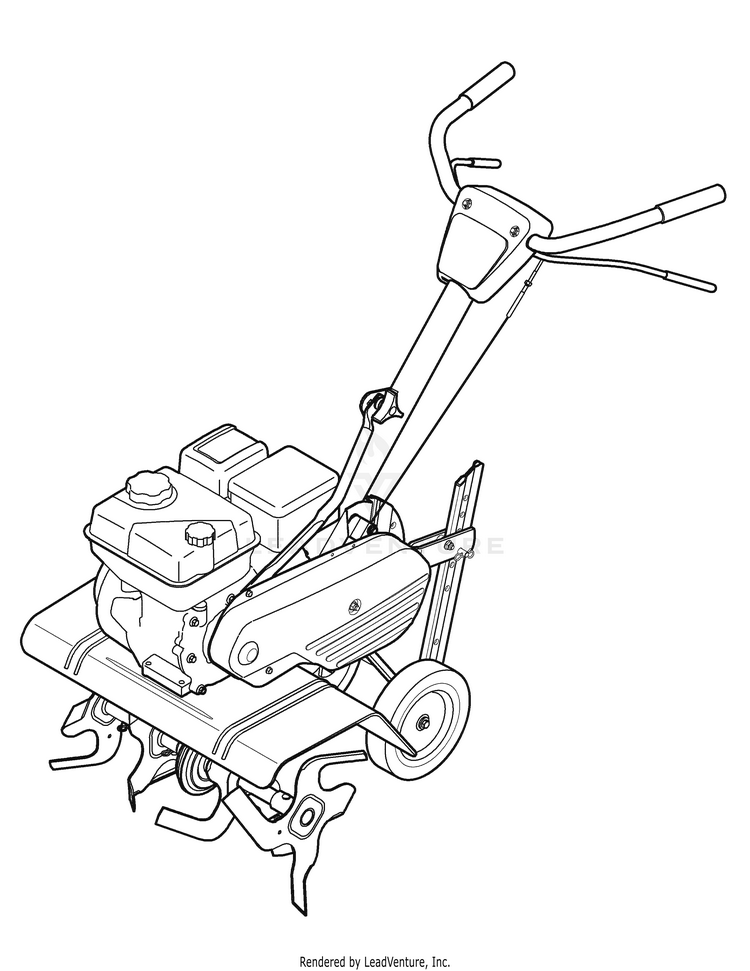

Craftsman 21A-34M5099 (247.29934) (2010) Tiller

Model: 21A-34M5099 (247.29934) (2010)

Save
 Part Not Listed?Part Not Listed?
product name

.Quick Reference

...
...
xx
SPARK PLUG (F6RTC/RN11YC/BPR6ES) MTD-951-10292A
...
xx
Pre Filter MTD-NA
...
xx
Air Filter MTD-951-10794
...
xx
Fuel Filter MTD-951-10652
...
xx
FUEL CAP MTD-951-10917B
...
xx
Drive Belt - FWD MTD-954-0428
...
xx
Drive Belt - REV MTD-NA
...
xx
Clutch Cable - FWD MTD-946-0918
...
xx
Clutch Cable - REV MTD-NA
...
xx
Tines - Outer - LH MTD-642-0005-0637
...
xx
Tines - Outer - RH MTD-642-0004-0637
...
xx
Tines - Inner - LH MTD-642-0003-0637
...
xx
Tines - Inner - RH MTD-642-0002-0637
...
xx
Wheel Assembly MTD-734-04547
...
xx
Foam Grip MTD-720-0274
...
xx
Handle Knob MTD-720-0195

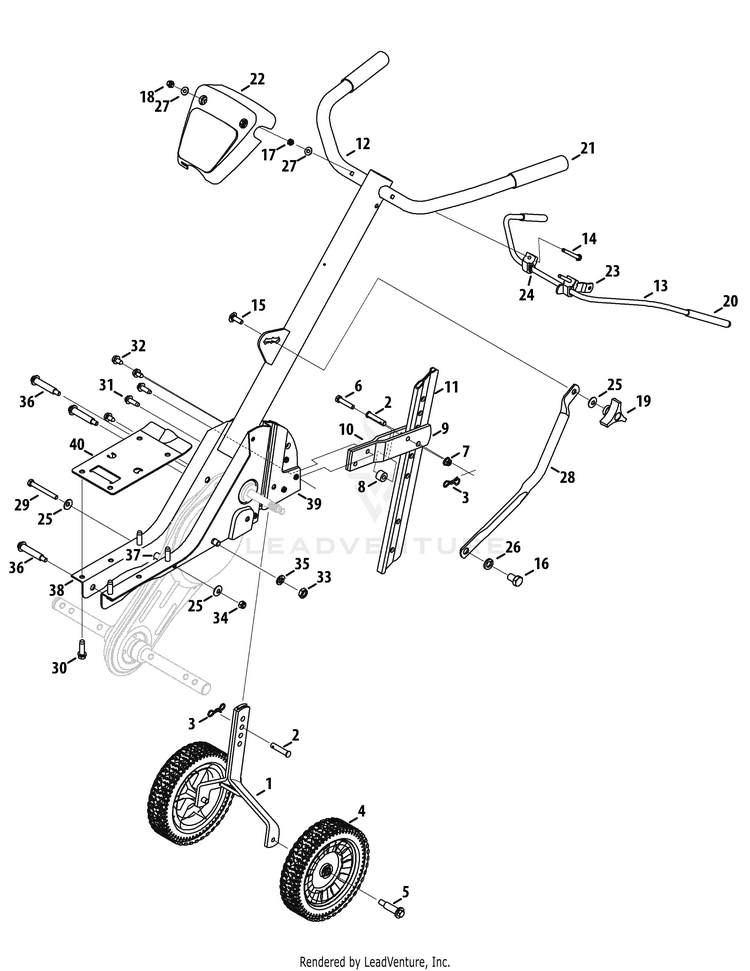

Handle Assembly

...
...
1
Wheel Bracket Assembly MTD-686-0081A-0637
...
2
Clevis Pin MTD-711-0415
...
3
Bow Tie Cotter Pin MTD-714-04043
...
4
Complete Wheel Assy. 8 x 1.75 MTD-734-04547
...
5
Shoulder Screw, .496 x 1.445 3/8-16 MTD-738-0929
...
6
SCREW 5/16-18 x 1.5 LG MTD-710-0805A
...
7
Nut, 5/16-18, Flange Lock MTD-712-04063
...
8
Spacer, .325 ID x .75 OD x .520 MTD-750-0890
...
9
Tail Bracket, LH MTD-786-0003-0637
...
10
Tail Bracket, RH MTD-786-0004-0637
...
11
Depth Bar MTD-786-0005-0637
...
12
Complete Handle Assembly MTD-649-04040-4044
...
13
Clutch Bail MTD-686-0083-0637
...
14
Hex Head Screw, 1/4-20 x 2.25 MTD-710-0641
...
15
Carriage Screw, 5/16-18 x 1.00 MTD-710-1236
...
16
Hex Head Screw, 1/2-20 x .750 MTD-710-3194
...
17
Jam Nut, 1/4-20 MTD-912-0298
...
18
Acorn Lock Nut 1/4-20 MTD-712-0442
...
19
Handle Knob MTD-720-0195
...
20
Grip, Clutch Bail MTD-720-0269
...
21
Grip, Handle MTD-720-0274
...
22
HANDLE COVER W/O SWITCH HOLE MTD-731-06253B
...
23
HANDLE CLUTCH HOLDER MTD-931-1645B
...
24
Fl-Wash. .344" I.D. x .62" MTD-736-0140
...
25
Bell Washer, .340 x .872 x .060 MTD-736-0242
...
26
L-Wash. 1/2" I.D. MTD-736-0921
...
27
Flat Washer .271" I.D. x .630" O.D. MTD-736-3020
...
28
Handle Brace MTD-749-1401A-0691
...
29
Hex Head Screw, 5/16-18 x 2.75 MTD-710-0176
...
30
SEMS Screw, 3/8-16 MTD-710-0502A
...
31
Self-Tapping Screw, 5/16-18 x 1.00 MTD-710-0602
...
32
Self-Tapping Screw, 5/16-18 x .625 MTD-710-0604A
...
33
Jam Nut, 7/16-20 MTD-912-0240
...
34
Nylon Hex Lock Nut, 5/16-18 MTD-912-0384
...
35
Lock Washer, 7/16 MTD-936-0171
...
36
Shoulder Bolt, 5/16-18 MTD-738-0934A
...
37
Spacer, .47 OD x .96 MTD-750-0470
...
38
Frame, RH MTD-786-0138A-4044
...
39
Frame, LH MTD-786-0139A-4044
...
40
Engine Mounting Plate MTD-786-0145A-4044

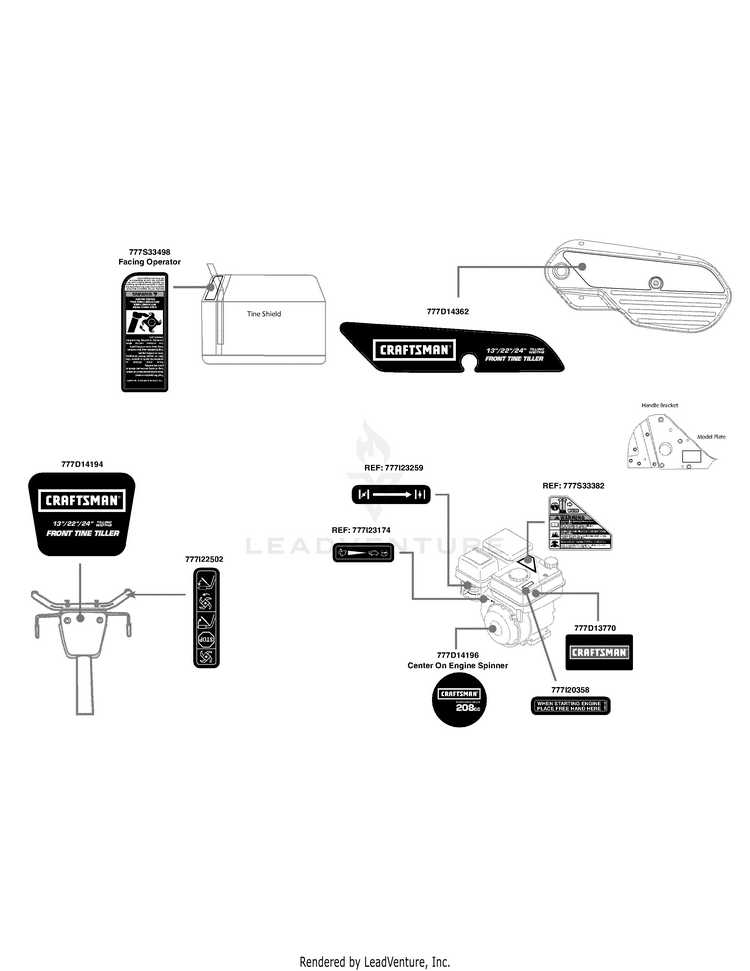

Label Map

...
...
777S33498
LBL:TLR/340:TN/SHLD:WRNG/SA MTD-777S33498
...
777D14194
LABEL-TILLER HANDLE CRAFTSMAN MTD-777D14194
...
777I22502
LABEL:TILLER HANDL MTD-777I22502
...
777D14196
LABEL-TILLER ENGINE CRAFTSMAN MTD-777D14196
...
777I23174
LABEL-ENGINE THROTTLE MTD-777I23174
...
777I23259
LBL:CH:MTD ENG:CHOKE MTD-777I23259
...
777S33382
LBL:CHR:MTD ENG:WARN/10W30 MTD-777S33382
...
777D13770
LABEL-SNOW GAS TANK CRAFTSMAN PRO MTD-777D13770
...
777I20358
LBL-PLACE HAND HERE MTD-777I20358
...
777D14362
LABEL-TILLER BELT GUARD CRAFTSMAN MTD-777D14362

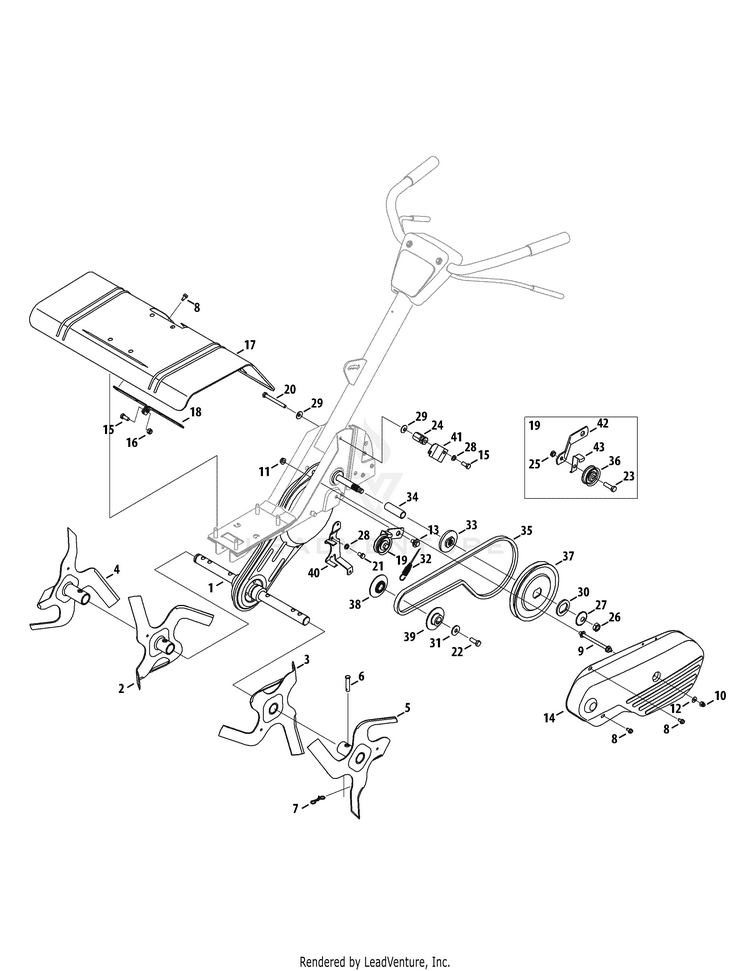

Tine & Shield Assembly

...
...
1
CHAIN CASE MTD-986-0091C
...
2
Inner Tine Assembly, RH MTD-642-0002-0637
...
3
Inner Tine Assembly, LH MTD-642-0003-0637
...
4
Outer Tine Assembly, RH MTD-642-0004-0637
...
5
Outer Tine Assembly, LH MTD-642-0005-0637
...
6
Clevis Pin MTD-711-0415
...
7
Bow Tie Cotter Pin MTD-714-04043
...
8
Screw, 1/4-20 x 0.500 MTD-710-0599
...
9
Bolt, Belt Cover MTD-711-0919
...
10
Nut, 1/4-28, Lock MTD-712-0392
...
11
HEX FLANGE NUT MTD-712-3004A
...
12
Flat Washer .271" I.D. x .630" O.D. MTD-736-3020
...
13
Shoulder Screw, .560 x .165 5/16-18 MTD-738-0930
...
14
Belt Cover MTD-786-0056-4044
...
15
SCREW 5/16-18 x .75 GR5 MTD-710-3008
...
16
Nut, 5/16-18, Flange Lock MTD-712-04063
...
17
Tine Shield MTD-786-0043A-4044
...
18
Bracket, Tine Shield MTD-786-0053-0637
...
19
Idler Bracket Assembly MTD-686-0088
...
20
Hex Head Screw, 5/16-18 x 3.00 MTD-710-0189
...
21
Hex Head Screw, 5/16-24 x .625 MTD-710-0237
...
22
Hex Head Screw, 3/8-24 x 1.00 MTD-710-1039
...
23
Hex Head Screw, 3/8-16 x 1.25 MTD-710-3005
...
24
Hex Nut, 5/16-18 MTD-711-1036A
...
25
Jamlock Nut, 3/8-16 MTD-712-0266A
...
26
Nut, 1/2-20, Jam MTD-712-3029
...
27
Washer, .531 x 1.62 x .045 MTD-736-0112
...
28
Lock Washer, 5/16 MTD-936-0119
...
29
Bell Washer, .340 x .872 x .060 MTD-736-0242
...
30
Flat Washer, 1.26 x 1.87 x .150 MTD-736-0312
...
31
Bell-Wash. .396" I.D. x 1.14" O.D. MTD-736-0452
...
32
Forward Clutch Cable MTD-946-0918
...
33
Pulley Adaptor MTD-948-0350
...
34
Spacer, .64 ID x 2.4 MTD-950-0892
...
35
Belt, 4L x 41.9 LG MTD-954-0428
...
36
Pulley 1.88 OD MTD-756-0313
...
37
Pulley 6.00 OD MTD-756-0585
...
38
Inner Engine Pulley MTD-756-0971
...
39
Outer Engine Pulley MTD-756-0972
...
40
Belt Keeper Bracket MTD-786-0039B-0637
...
41
Cable Guide Bracket MTD-786-0129-0637
...
42
Idler Bracket MTD-786-0144-0637
...
43
Belt Keeper MTD-786-0149

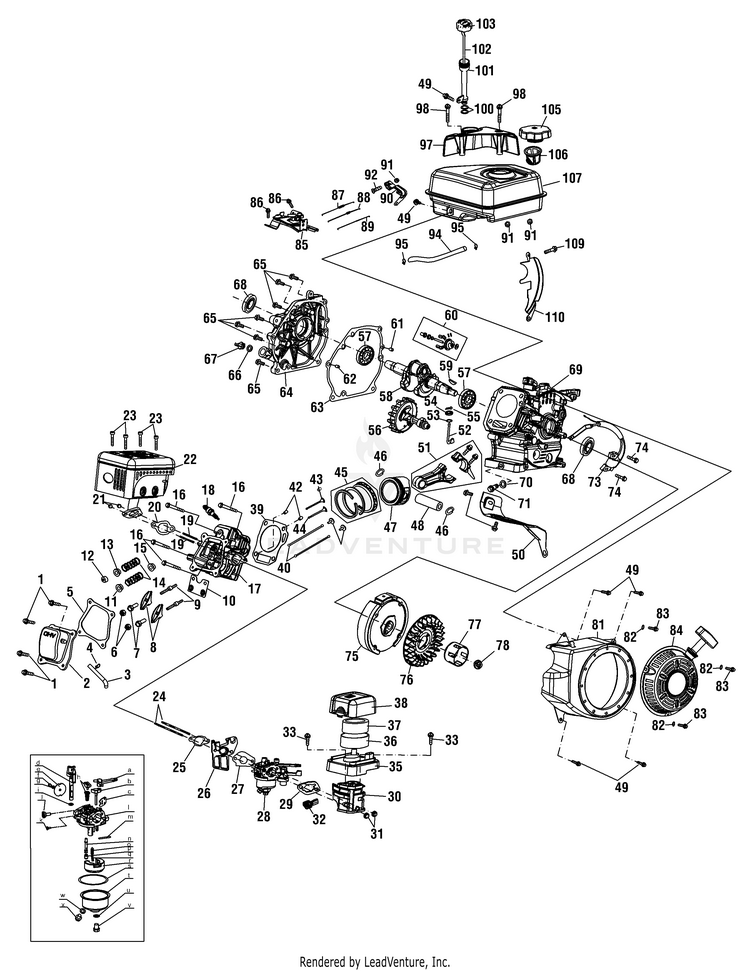

Engine Assembly 170-V0A

...
...
1
Bolt, Flange M6 x 16 MTD-710-04968
...
2
Valve Cover MTD-951-11054B
...
2
Valve Cover Furnish 951-11063A, Valve Cover Gasket Kit MTD-951-11054B
...
3
Breather Hose MTD-731-07059
...
4
Breather Hose Clamp MTD-726-04101
...
5
VALVE COVER GASKET MTD-751P11565B
...
5
VALVE COVER GASKET Furnish 951-10798A, Short Block MTD-751P11565B
...
5
VALVE COVER GASKET Furnish 951-11063A, Valve Cover Gasket Kit MTD-751P11565B
...
5
VALVE COVER GASKET Furnish 951-10799, Cylinder Head Assembly MTD-751P11565B
...
5
VALVE COVER GASKET Furnish 951-10819, Cylinder Head Service Kit MTD-751P11565B
...
5
VALVE COVER GASKET Furnish 951-10802A, Gasket Kit Complete MTD-751P11565B
...
6
Nut, Pivot Locking MTD-751-11124
...
7
Valve Adjusting Nut MTD-751-11123
...
7
Valve Adjusting Nut Furnish 951-10799, Cylinder Head Assembly MTD-751-11123
...
8
Rocker Arm Furnish 951-10799, Cylinder Head Assembly MTD-NA
...
9
Rocker Arm Stud MTD-710-04902
...
9
Rocker Arm Stud Furnish 951-10799, Cylinder Head Assembly MTD-710-04902
...
10
Push Rod Guide Furnish 951-10799, Cylinder Head Assembly MTD-NA
...
11
Valve Spring Retainer-Intake Furnish 951-10799, Cylinder Head Assembly MTD-NA
...
12
Exhaust Valve Adjustor Furnish 951-10799, Cylinder Head Assembly MTD-NA
...
13
Valve Spring Retainer-Exhaust Furnish 951-10799, Cylinder Head Assembly MTD-NA
...
14
Valve Spring Furnish 951-10799, Cylinder Head Assembly MTD-NA
...
15
Valve Seal Furnish 951-10819, Cylinder Head Service Kit MTD-NA
...
16
BOLT M8 x 55 MTD-710-05100
...
16
BOLT M8 x 55 Furnish 951-10819, Cylinder Head Service Kit MTD-710-05100
...
17
Cylinder Head Furnish 951-10799, Cylinder Head Assembly MTD-NA
...
18
SPARK PLUG (F6RTC/RN11YC/BPR6ES) MTD-951-10292A
...
19
Muffler Stud MTD-710-04911
...
19
Muffler Stud Furnish 951-10657, Muffler Stud Assembly MTD-710-04911
...
20
Exhaust Pipe Gasket Furnish 951-10798A, Short Block MTD-NA
...
20
Exhaust Pipe Gasket Furnish 951-10799, Cylinder Head Assembly MTD-NA
...
20
Exhaust Pipe Gasket Furnish 951-10801A, Gasket Kit External MTD-NA
...
20
Exhaust Pipe Gasket Furnish 951-10802A, Gasket Kit Complete MTD-NA
...
21
Nut MTD-712-04214
...
22
MUFFLER ASSEMBLY MTD-951-11590
...
23
HEX FLANGE BOLT M5x10 MTD-710-09956
...
24
Carburetor Stud MTD-710-05101
...
25
CARBURETOR INSULATOR GASKET MTD-751P11567B
...
25
CARBURETOR INSULATOR GASKET Furnish 951-10798A, Short Block MTD-751P11567B
...
25
CARBURETOR INSULATOR GASKET Furnish 951-10799, Cylinder Head Assembly MTD-751P11567B
...
25
CARBURETOR INSULATOR GASKET Furnish 951-10801A, Gasket Kit External MTD-751P11567B
...
25
CARBURETOR INSULATOR GASKET Furnish 951-10802A, Gasket Kit Complete MTD-751P11567B
...
26
INSULATOR MTD-751P11568A
...
26
INSULATOR Furnish 951-10798A, Short Block MTD-751P11568A
...
26
INSULATOR Furnish 951-10799, Cylinder Head Assembly MTD-751P11568A
...
26
INSULATOR Furnish 951-10802A, Gasket Kit Complete MTD-751P11568A
...
27
CARBURETOR GASKET MTD-751P12005B
...
27
CARBURETOR GASKET Furnish 951-10801A, Gasket Kit External MTD-751P12005B
...
27
CARBURETOR GASKET Furnish 951-10802A, Gasket Kit Complete MTD-751P12005B
...
28
Carburetor Assembly Not Shown (Incl. Ref No. a-x) MTD-951-12785
...
29
CARBURETOR GASKET PLATE MTD-951-11571
...
29
CARBURETOR GASKET PLATE Furnish 951-10798A, Short Block MTD-951-11571
...
29
CARBURETOR GASKET PLATE Furnish 951-10802A, Gasket Kit Complete MTD-951-11571
...
30
Air Cleaner Housing MTD-951-10806
...
31
Nut MTD-712-04213
...
32
Throttle Control Knob MTD-951-11067
...
33
Self-Tapping Bolt MTD-NA
...
35
Lower Housing Furnish 951-10818, Air Cleaner Housing Assembly MTD-NA
...
36
Air Cleaner Foam Wrap Furnish 951-10794, Air Cleaner MTD-NA
...
37
Air Cleaner Element Furnish 951-10794, Air Cleaner MTD-NA
...
37
Genuine Factory Parts AIR FILTER Retail Packaged Part MTD-OEM-751-10794
...
38
Upper Housing Furnish 951-10818, Air Cleaner Housing Assembly MTD-NA
...
39
CYLINDER HEAD GASKET MTD-951-11572
...
39
CYLINDER HEAD GASKET Furnish 951-10798A, Short Block MTD-951-11572
...
39
CYLINDER HEAD GASKET Furnish 951-10799, Cylinder Head Assembly MTD-951-11572
...
39
CYLINDER HEAD GASKET Furnish 951-10819, Cylinder Head Service Kit MTD-951-11572
...
39
CYLINDER HEAD GASKET Furnish 951-10802A, Gasket Kit Complete MTD-951-11572
...
40
Push Rod Kit Not Shown MTD-951-10648
...
41
Valve Lifter Furnish 951-10798A, Short Block MTD-NA
...
42
Dowel Pin 10×16 MTD-715-04108
...
42
Dowel Pin 10×16 Furnish 951-10799, Cylinder Head Assembly MTD-715-04108
...
43
Exhaust Valve Furnish 951-10799, Cylinder Head Assembly MTD-NA
...
43
Exhaust Valve Furnish 951-10647, Valve Kit MTD-NA
...
44
Intake Valve Furnish 951-10799, Cylinder Head Assembly MTD-NA
...
44
Intake Valve Furnish 951-10647, Valve Kit MTD-NA
...
45
PISTON RING SET MTD-751P12111A
...
45
PISTON RING SET Furnish 951-10798A, Short Block MTD-751P12111A
...
46
Piston Pin Clip Furnish 951-10798A, Short Block MTD-NA
...
47
Piston Furnish 951-10798A, Short Block MTD-NA
...
48
Piston Pin Furnish 951-10798A, Short Block MTD-NA
...
49
Bolt MTD-710-04915
...
50
Air Shield MTD-951-11113
...
51
CONNECTING ROD MTD-751P11573A
...
51
CONNECTING ROD Furnish 951-10798A, Short Block MTD-751P11573A
...
52
Governor Shaft MTD-951-14053
...
52
Governor Shaft Furnish 951-10798A, Short Block MTD-951-14053
...
52
Governor Shaft Furnish 951-11588, Crankcase Kit MTD-951-14053
...
53
Governor Shaft O-Ring MTD-736-04461
...
53
Governor Shaft O-Ring Furnish 951-10798A, Short Block MTD-736-04461
...
53
Governor Shaft O-Ring Furnish 951-11588, Crankcase Kit MTD-736-04461
...
53
Governor Shaft O-Ring Furnish 951-10802A, Gasket Kit Complete MTD-736-04461
...
54
OIL SEAL MTD-951-11902A
...
54
OIL SEAL Furnish 951-10798A, Short Block MTD-951-11902A
...
54
OIL SEAL Furnish 951-11588, Crankcase Kit MTD-951-11902A
...
55
Cotter Pin MTD-714-04078
...
55
Cotter Pin Furnish 951-10798A, Short Block MTD-714-04078
...
55
Cotter Pin Furnish 951-11588, Crankcase Kit MTD-714-04078
...
56
CAMSHAFT ASSEMBLY MTD-951-11575
...
56
CAMSHAFT ASSEMBLY Furnish 951-10798A, Short Block MTD-951-11575
...
57
Radial Ball Bearing MTD-951-11369
...
57
Radial Ball Bearing Furnish 951-10798A, Short Block MTD-951-11369
...
57
Radial Ball Bearing Furnish 951-11587, Crankshaft Kit MTD-951-11369
...
57
Radial Ball Bearing Furnish 951-11586, Crankcase Kit MTD-951-11369
...
57
Radial Ball Bearing Furnish 951-11588, Crankcase Kit MTD-951-11369
...
58
Crankshaft Assembly Furnish 951-10798A, Short Block MTD-NA
...
58
Crankshaft Assembly Furnish 951-11587, Crankshaft Kit MTD-NA
...
59
WOODRUFF KEY MTD-751P10307A
...
59
WOODRUFF KEY Furnish 951-11587, Crankshaft Kit MTD-751P10307A
...
60
GOVERNOR GEAR MTD-751P11576A
...
60
GOVERNOR GEAR Furnish 951-10798A, Short Block MTD-751P11576A
...
61
DOWEL PIN 9 X 14 MTD-715-04096A
...
61
DOWEL PIN 9 X 14 Furnish 951-10798A, Short Block MTD-715-04096A
...
62
Dowel Pin, 9 x 14 MTD-715-04089
...
62
Dowel Pin, 9 x 14 Furnish 951-10798A, Short Block MTD-715-04089
...
63
CRANKCASE GASKET MTD-751P11371B
...
63
CRANKCASE GASKET Furnish 951-10798A, Short Block MTD-751P11371B
...
63
CRANKCASE GASKET Furnish 951-11587, Crankshaft Kit MTD-751P11371B
...
63
CRANKCASE GASKET Furnish 951-11586, Crankcase Kit MTD-751P11371B
...
63
CRANKCASE GASKET Furnish 951-10802A, Gasket Kit Complete MTD-751P11371B
...
64
Crankcase Cover Furnish 951-10798A, Short Block MTD-NA
...
64
Crankcase Cover Furnish 951-11586, Crankcase Kit MTD-NA
...
65
Bolt MTD-710-04932
...
65
Bolt Furnish 951-10798A, Short Block MTD-710-04932
...
65
Bolt Furnish 951-11586, Crankcase Kit MTD-710-04932
...
66
O-RING 15.8 x 2.5 MTD-951-11577
...
66
O-RING 15.8 x 2.5 Furnish 951-10798A, Short Block MTD-951-11577
...
66
O-RING 15.8 x 2.5 Furnish 951-10801A, Gasket Kit External MTD-951-11577
...
66
O-RING 15.8 x 2.5 Furnish 951-10669, Oil Fill Plug Assembly MTD-951-11577
...
66
O-RING 15.8 x 2.5 Furnish 951-10802A, Gasket Kit Complete MTD-951-11577
...
67
Oil Filler Plug Furnish 951-10798A, Short Block MTD-NA
...
67
Oil Filler Plug Furnish 951-10669, Oil Fill Plug Assembly MTD-NA
...
68
OIL SEAL 25 x 41.25 x 6 MTD-951-11578
...
68
OIL SEAL 25 x 41.25 x 6 Furnish 951-10798A, Short Block MTD-951-11578
...
68
OIL SEAL 25 x 41.25 x 6 Furnish 951-11587, Crankshaft Kit MTD-951-11578
...
68
OIL SEAL 25 x 41.25 x 6 Furnish 951-11586, Crankcase Kit MTD-951-11578
...
68
OIL SEAL 25 x 41.25 x 6 Furnish 951-11588, Crankcase Kit MTD-951-11578
...
68
OIL SEAL 25 x 41.25 x 6 Furnish 951-10802A, Gasket Kit Complete MTD-951-11578
...
69
Crankcase Complete Furnish 951-10798A, Short Block MTD-NA
...
69
Crankcase Complete Furnish 951-11588, Crankcase Kit MTD-NA
...
70
FLAT WASHER MTD-736-04440A
...
70
FLAT WASHER Furnish 951-10798A, Short Block MTD-736-04440A
...
70
FLAT WASHER Furnish 951-10801A, Gasket Kit External MTD-736-04440A
...
70
FLAT WASHER Furnish 951-10802A, Gasket Kit Complete MTD-736-04440A
...
71
Oil Drain Plug MTD-710-04906
...
71
Oil Drain Plug Furnish 951-10798A, Short Block MTD-710-04906
...
73
Ignition Coil MTD-951-10792
...
74
Bolt MTD-710-04919
...
75
Flywheel MTD-951-10805
...
76
COOLING FAN MTD-951-10909B
...
77
Starter Cup MTD-951-10911
...
78
Flywheel Nut M14 MTD-712-04287
...
81
BLOWER HOUSING MTD-951-11583
...
82
FLAT WASHER MTD-736-04455B
...
83
Bolt MTD-710-04914
...
84
Recoil Starter Assembly MTD-951-10790
...
85
PRIMER BRACKET MTD-951-11584
...
86
Bolt MTD-710-05103
...
87
Governor Spring MTD-951-11585
...
88
THROTTLE SPRING MTD-751P10664A
...
89
THROTTLE LINKAGE MTD-751P10665A
...
90
Governor Arm MTD-951-11106
...
91
Nut M6 MTD-712-05015
...
92
Governor Arm Bolt MTD-710-04908
...
94
Fuel Hose Furnish 951-10650, Fuel Line Kit MTD-NA
...
95
Hose Clamp Furnish 951-10650, Fuel Line Kit MTD-NA
...
97
ENGINE/DIPSTICK COVER MTD-951-10662
...
98
Bolt MTD-710-04905
...
100
O-Ring MTD-951-11380
...
101
Dipstick Assembly MTD-631-05020AP
...
102
Dipstick Gauge Furnish 951-10655, Dipstick Assembly MTD-NA
...
103
Dipstick Cap Furnish 951-10655, Dipstick Assembly MTD-NA
...
105
FUEL CAP (Incl. Gasket & Retainer) MTD-951-10917B
...
106
Fuel Filter MTD-951-10652
...
107
Fuel Tank MTD-951-12159
...
109
Bolt MTD-710-04918
...
110
Blower Housing Shield MTD-951-11109
...
a
CHOKE CONTROL LEVER MTD-751P20448
...
a
CHOKE CONTROL LEVER Furnish 951-10797, Carburetor Assembly MTD-751P20448
...
a
CHOKE CONTROL LEVER Furnish 951-10800A, Carburetor Kit Major MTD-751P20448
...
b
Choke Shaft Furnish 951-10797, Carburetor Assembly MTD-NA
...
c
Choke Plate Furnish 951-10797, Carburetor Assembly MTD-NA
...
d
Throttle Shaft Furnish 951-10797, Carburetor Assembly MTD-NA
...
e
Throttle Plate Furnish 951-10797, Carburetor Assembly MTD-NA
...
f
Screw Furnish 951-10797, Carburetor Assembly MTD-NA
...
g
Lock Washer Furnish 951-10797, Carburetor Assembly MTD-NA
...
h
Idle Jet Assembly Furnish 951-10797, Carburetor Assembly MTD-NA
...
h
Idle Jet Assembly Furnish 951-10800A, Carburetor Kit Major MTD-NA
...
i
Throttle Plate Gasket Furnish 951-10797, Carburetor Assembly MTD-NA
...
i
Throttle Plate Gasket Furnish 951-10800A, Carburetor Kit Major MTD-NA
...
j
Idle Speed Adjusting Screw Furnish 951-10797, Carburetor Assembly MTD-NA
...
j
Idle Speed Adjusting Screw Furnish 951-10800A, Carburetor Kit Major MTD-NA
...
k
Mixture Screw Furnish 951-10797, Carburetor Assembly MTD-NA
...
l
Carburetor Body Furnish 951-10797, Carburetor Assembly MTD-NA
...
m
Float Pin Furnish 951-10797, Carburetor Assembly MTD-NA
...
m
Float Pin Furnish 951-10800A, Carburetor Kit Major MTD-NA
...
n
Main Nozzle Furnish 951-10797, Carburetor Assembly MTD-NA
...
n
Main Nozzle Furnish 951-10800A, Carburetor Kit Major MTD-NA
...
o
Needle Valve (Float) Furnish 951-10797, Carburetor Assembly MTD-NA
...
o
Needle Valve (Float) Furnish 951-10800A, Carburetor Kit Major MTD-NA
...
p
Main Jet Furnish 951-10797, Carburetor Assembly MTD-NA
...
p
Main Jet Furnish 951-10800A, Carburetor Kit Major MTD-NA
...
q
Needle Valve Spring Furnish 951-10797, Carburetor Assembly MTD-NA
...
q
Needle Valve Spring Furnish 951-10800A, Carburetor Kit Major MTD-NA
...
r
Float Furnish 951-10797, Carburetor Assembly MTD-NA
...
r
Float Furnish 951-10800A, Carburetor Kit Major MTD-NA
...
s
Fuel Bowl Gasket MTD-951-11589
...
s
Fuel Bowl Gasket Furnish 951-10797, Carburetor Assembly MTD-951-11589
...
s
Fuel Bowl Gasket Furnish 951-10800A, Carburetor Kit Major MTD-951-11589
...
t
Fuel Bowl Furnish 951-10797, Carburetor Assembly MTD-NA
...
u
FUEL BOWL BOLT GASKET NLAUD MTD-710-04904
...
u
FUEL BOWL BOLT GASKET NLAUD Furnish 951-10797, Carburetor Assembly MTD-710-04904
...
u
FUEL BOWL BOLT GASKET NLAUD Furnish 951-10800A, Carburetor Kit Major MTD-710-04904
...
v
Fuel Bowl Mounting Bolt MTD-710-04945
...
v
Fuel Bowl Mounting Bolt Furnish 951-10797, Carburetor Assembly MTD-710-04945
...
w
FUEL DRAIN PLUG GASKET MTD-951-11349A
...
w
FUEL DRAIN PLUG GASKET Furnish 951-10797, Carburetor Assembly MTD-951-11349A
...
w
FUEL DRAIN PLUG GASKET Furnish 951-10800A, Carburetor Kit Major MTD-951-11349A
...
x
FUEL DRAIN PLUG MTD-710-04938
...
x
FUEL DRAIN PLUG Furnish 951-10797, Carburetor Assembly MTD-710-04938
...
xx
Valve Kit Not Shown (Incl. Ref No. 43, 44) MTD-951-10647A
...
xx
Fuel Line Kit Not Shown (Incl. Ref No. 94, 95) MTD-951-10650
...
xx
Fuel Tank Nipple Not Shown MTD-951-10651
...
xx
Dipstick Assembly Not Shown (Incl. Ref No. 102, 103) MTD-631-05020AP
...
xx
Muffler Stud Assembly Not Shown (Incl. Ref No. 19) MTD-951-10657
...
xx
Oil Fill Plug Assembly Not Shown (Incl. Ref No. 66, 67) MTD-951-10669
...
xx
Air Cleaner Not Shown (Incl. Ref No. 36, 37) MTD-951-10794
...
xx
Genuine Factory Parts AIR FILTER Retail Packaged Part MTD-OEM-751-10794
...
xx
SHORTBLOCK ASSEMBLY Not Shown (Incl. Ref No. 5, 20, 25, 26, 29, 39, 41, 45-48, 51-58, 60-71) MTD-951-10798A
...
xx
Cylinder Head Assembly Not Shown (Incl. Ref No. 5, 7-14, 17, 20, 25, 26, 39, 42-44) MTD-951-10799
...
xx
CARBURETOR REBUILD KIT Not Shown (Incl. Ref No. a, h-j, m-s, u, w) MTD-951-12783
...
xx
Gasket Kit - External Not Shown (Incl. Ref No. 20, 25, 27, 66, 70) MTD-951-10801A
...
xx
GASKET KIT (COMPLETE) Not Shown (Incl. Ref No. 5, 20, 25-27, 29, 39, 53, 63, 66, 68, 70) MTD-951-10802A
...
xx
Air Cleaner Housing Assembly Not Shown (Incl. Ref No. 35, 38) MTD-951-10818
...
xx
Cylinder Head Service Kit Not Shown (Incl. Ref No. 5, 15, 16, 39) MTD-951-10819
...
xx
Recoil Spring & Pulley Assembly (Incl. Pulley & Spring) MTD-951-10826
...
xx
SPARK ARRESTOR Not Shown MTD-951-10829
...
xx
Valve Cover Kit Not Shown (Incl. Ref No. 2, 5) MTD-951-12626
...
xx
CRANKCASE COVER KIT Not Shown (Incl. Ref No. 57, 63, 64, 65, 68) MTD-951-11586
...
xx
CRANKSHAFT KIT Not Shown (Incl. Ref No. 57-59, 63, 68) MTD-951-11587
...
xx
CRANKCASE KIT Not Shown (Incl. Ref No. 52-55, 57, 68, 69) MTD-951-11588
...
xx
Gasket Not Shown Furnish 951-10917, Fuel Cap MTD-NA
...
xx
Gasket Retainer Not Shown Furnish 951-10917, Fuel Cap MTD-NA
...
xx
Starter Pulley Not Shown Furnish 951-10826, Recoil Spring & Pulley Assembly MTD-NA
...
xx
Recoil Spring Not Shown Furnish 951-10826, Recoil Spring & Pulley Assembly MTD-NA
...
xx
COMPLETE ENGINE 208cc Not Shown MTD-952Z170-V0A
...
...
...
...
...
Processing
