Craftsman 21A-144R099 (316.29270) Tiller

Model: 21A-144R099 (316.29270)

Save
 Part Not Listed?Part Not Listed?
product name

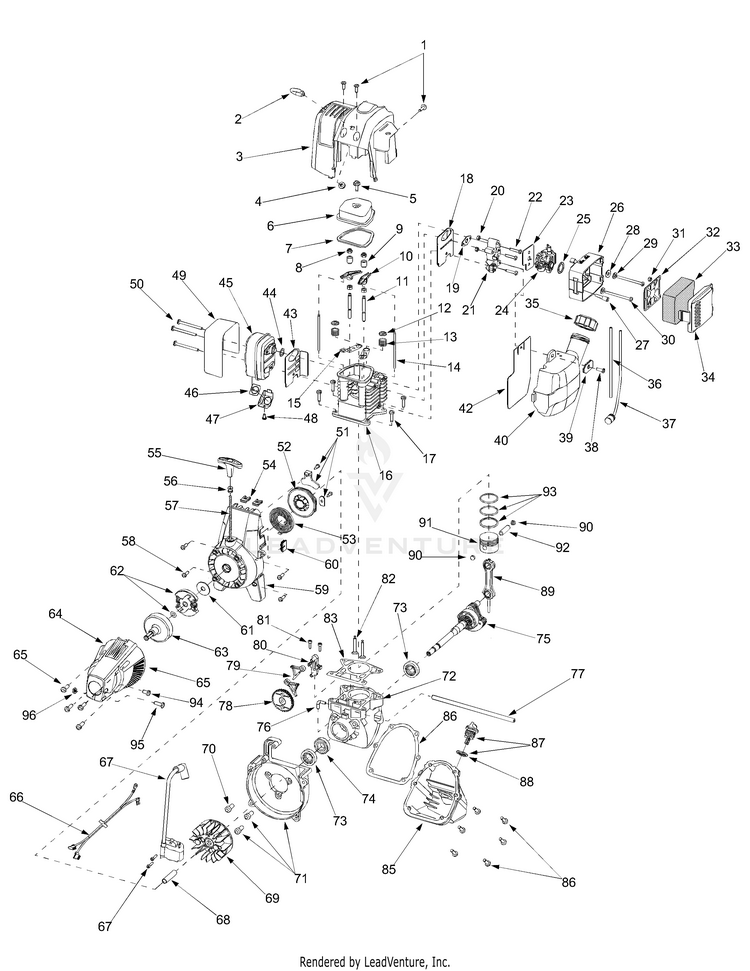

Engine Parts

...
...
1
Engine Cover Screws MTD-753-04994
...
2
GUIDE, ROPE (AC-2. MTD-791-182651
...
3
COVER:ENG:REAR:W/HOL MTD-753-04028
...
4
LOCKNUT, ¼ "-20 W/ MTD-791-182652
...
5
Valve Cover Screw MTD-791-181025
...
6
COVER, VALVE W/O BRE MTD-791-182098
...
7
Valve Cover Gasket MTD-791-182099
...
8
NUT, ROCKER ADJUST MTD-791-182340
...
9
PIVOT, ROCKER ARM MTD-791-182101
...
10
ARM, ROCKER MTD-791-182100
...
11
STUD, ROCKER ARM MTD-791-182341
...
12
RET, VALVE SPRING MTD-791-182103
...
13
SPRING, VALVE MTD-791-181038
...
14
ROD, PUSH MTD-791-181033
...
15
GUIDE, PUSH ROD MTD-791-182102
...
16
CYLINDER ASSEMB MTD-791-182700
...
17
SCREW, M5 X18 MTD-9052-1
...
18
INTAKE BAFFLE MTD-753-1226
...
19
Carburetor Mount Gasket MTD-791-182749
...
20
NUT-DEE HANDLE MTD-791-181034
...
21
CARBURETOR INSULATOR MTD-753-04029
...
22
SCR, CARBU MTD-791-182348
...
23
CARBURETOR GASKET MTD-791-182732
...
24
Carburetor w/ Primer MTD-791-182654
...
25
Air Filter Gasket MTD-753-04030
...
26
AIR CLEANE MTD-791-182655
...
27
Breather Tube Assembly MTD-791-182097
...
28
O-RING MTD-791-181000
...
29
Washer MTD-791-182409
...
30
SCREW 5M X 0.8-7 NLAUD MTD-791-181750
...
31
NUT:HEX:M5:KEPS:ZN MTD-753-04032
...
32
PLATE, WALBRO AIR MTD-791-182657
...
33
Air Filter MTD-791-182658
...
34
COVER, AIR CLEANER ( MTD-791-182659
...
35
FUEL CAP ASSEMBLY MTD-753-04033
...
36
Fuel Return Line MTD-791-182352
...
37
Fuel Pick-up Line w/ Filter MTD-791-182353
...
38
SCREW, FUEL TANK BRA MTD-791-181080
...
39
RET, LOWER STAMPIN MTD-791-182354
...
40
FUEL TANK ASSEMBLY MTD-753-04034
...
41
FUEL TANK BUSHING MTD-753-04035
...
42
BAFFLE, FU MTD-791-182356
...
43
BAFFLE:MFLR:EXHAUST MTD-753-1232
...
44
MUFFLER GASKET MTD-9094-1
...
45
MUFFLER ASSEMBLY W/GASKET MTD-753-04036
...
46
SCREEN, AC MUFFLER SPARK MTD-791-180890
...
47
Screen Cover MTD-753-04037
...
48
SCREW, SCREEN COVER MTD-791-181046
...
49
SHIELD:MFLR:RADIANT MTD-753-1233
...
50
SCREW, MUFFLER MTD-791-182361
...
51
Pulley Retainer MTD-753-04288
...
52
PULLEY:START MTD-753-1199
...
53
SPR START MTD-753-1236
...
54
Nut Clip MTD-791-182366
...
55
Pull Handle MTD-631-04164B
...
56
Rope Guide MTD-791-611061
...
57
ROPE, STARTER .112 MTD-791-182661
...
58
Screw MTD-9054
...
59
HOUSING ASSEMBLY MTD-753-04038
...
60
GROMMET, WIRE (AC- MTD-791-182537
...
61
Washer MTD-9162-1
...
62
Starter Clutch Assembly MTD-753-05860
...
63
Clutch Drum MTD-791-153592
...
64
CLUTCH COVER MTD-753-1239
...
65
Clutch Cover Screw MTD-791-181345
...
66
WIRE HARNESS MTD-753-04039
...
67
IGNITION MODULE WITH SCREWS MTD-791-182725
...
68
SPACER MTD-791-181065
...
69
Flywheel Assembly MTD-753-05240
...
70
SCREW, 1/4-20X.562 F MTD-791-181861
...
71
ASSEMBLY, SHROUD (AC-2. MTD-791-182743
...
72
ASSEMBLY, CRANKCASE & P MTD-791-182376
...
73
SEAL, SEAL MTD-791-610309
...
74
Bearing MTD-791-182372
...
75
ASSEMBLY, POWERSHAFT & MTD-791-182380
...
76
FITTING, BREATHER MTD-791-182375
...
77
Breather Hose MTD-791-182379
...
78
CAM GEAR MTD-791-181015
...
79
FOLLOWER, MTD-753-1242
...
80
BRACKET, CAM MTD-791-181013
...
81
SCR, CAM BRACKET MTD-791-181012
...
82
VALVE MTD-791-181040
...
83
GASKET, CYLINDER B MTD-791-182374
...
84
GASKET, OIL PAN MTD-791-181018
...
85
PAN, OIL W/ GASKET MTD-791-182377
...
86
Screw MTD-9054
...
87
Dipstick Assembly MTD-791-182378
...
88
O-Ring MTD-791-182290
...
89
ROD, CONNECTING MTD-791-181009
...
90
BUTTON, WRIST PIN MTD-791-181008
...
91
PISTON ASSEMBLY:PSTN MTD-753-1243
...
92
PIN, WRIST MTD-791-181006
...
93
RING SET:PISTON MTD-753-04801
...
94
Antirotation Screw MTD-791-182519
...
95
SCREW:8-32X1.00":MAC MTD-753-1240
...
96
NUT:#8-32: MTD-753-1241
...
xx
SHBLK ASSEMBLY: MTD-753-1245
...
xx
CYLINDER ASSEMB MTD-791-182745
...
xx
Carburetor Repair Kit MTD-753-04014
...
xx
Gasket Diaphragm Repair Kit (parts not shown) MTD-753-1248
...
xx
Spark Plug MTD-794-00082

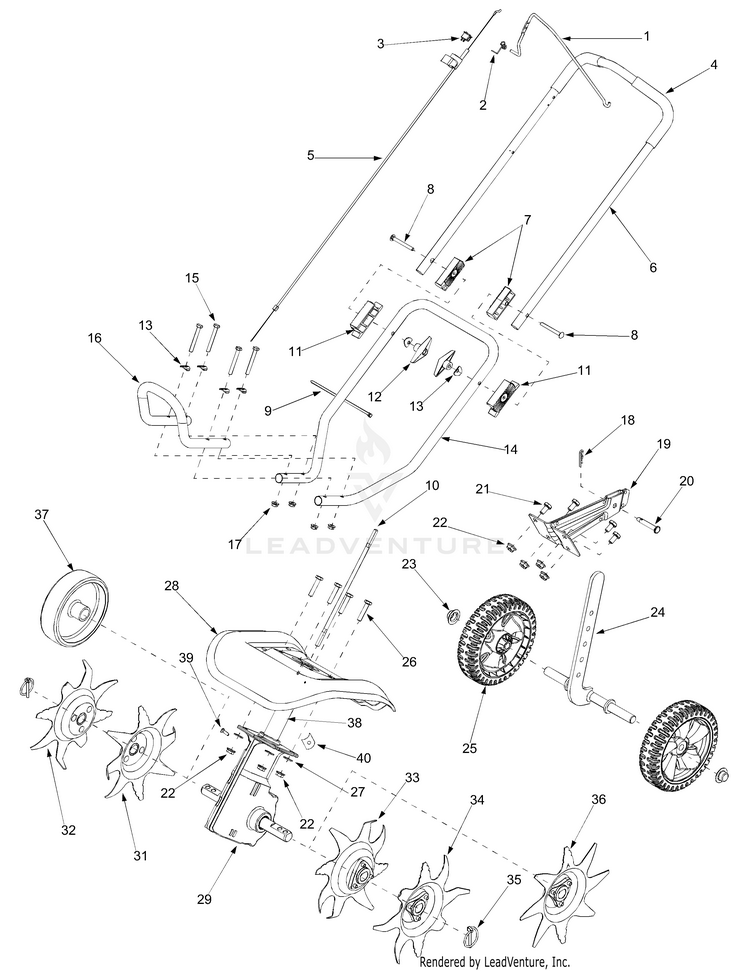

General Assembly

...
...
1
THROTTLE CONTROL BAIL MTD-753-04042
...
2
TORSION SPRING MTD-753-04043
...
3
On/Off Switch MTD-791-182673
...
4
FOAM GRIP - 9" MTD-720-0294A
...
5
THROTTLE CABLE MTD-753-04045
...
6
UPPER HANDLE MTD-753-04046
...
7
Upper Handle Insulator MTD-731-1268
...
8
Carriage Bolt 5/16-18 x 2 MTD-710-1174
...
9
Cable Tie MTD-725-0157
...
10
DRIVE SHAFT W/FERR MTD-791-181840
...
11
HANDLE INSULATOR MTD-753-04050
...
12
Star Knob MTD-720-04072A
...
13
Saddle Wash. .32" I.D. MTD-736-0451
...
14
Lower Handle MTD-749-1295A-0637
...
15
Hex Bolt 5/16-18 x 2.25" Lg. MTD-710-0395
...
16
FRONT HANDLE MTD-753-04055
...
17
Flange Lock Nut 5/16-18 MTD-753-04056
...
18
Hairpin Clip MTD-714-0104
...
19
Tailpiece Bracket Assembly MTD-753-04058
...
20
Clevis Pin MTD-711-1017
...
21
Hex Bolt 1/4-20 x .5" Lg. MTD-710-3013
...
22
LOCK NUT 1/4 MTD-912-3027
...
23
Push Cap MTD-726-0299
...
24
Wheel Support Bracket Assembly MTD-753-04063
...
25
Front Wheel, 7 x 1.8, Bar MTD-734-1988
...
26
Bolt MTD-6109
...
27
Flat Washer .271" I.D. x .630" O.D. MTD-736-3020
...
28
Tine Shield MTD-753-04067
...
29
Gearbox MTD-753-04075
...
31
TINE (INNER) (RH) MTD-753-04074
...
32
TINE (OUTER) (RH) MTD-753-04073
...
33
TINE (INNER) (LH) MTD-753-04072
...
34
TINE-OUTER (LH) MTD-753-04071
...
35
Click Pin MTD-753-04070
...
36
TINE-EDGER OUTER MTD-753-04069
...
37
PLASTIC WHEEL 5.0X1.38 MTD-753-04068
...
38
DRIVE SHAFT HOUSING ASSEMBLY MTD-753-04076
...
39
Hex Tap Scr. 1/4-20 x .5" Lg. MTD-710-0599
...
40
Retainer Sleeve MTD-753-04078
...
...
...
...
...
