Craftsman 19B40024OEM 42-Inch 3x Snow Thrower (2023 & After) Snow Thrower

Model: 19B40024OEM 42-Inch 3x Snow (2023, After)

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

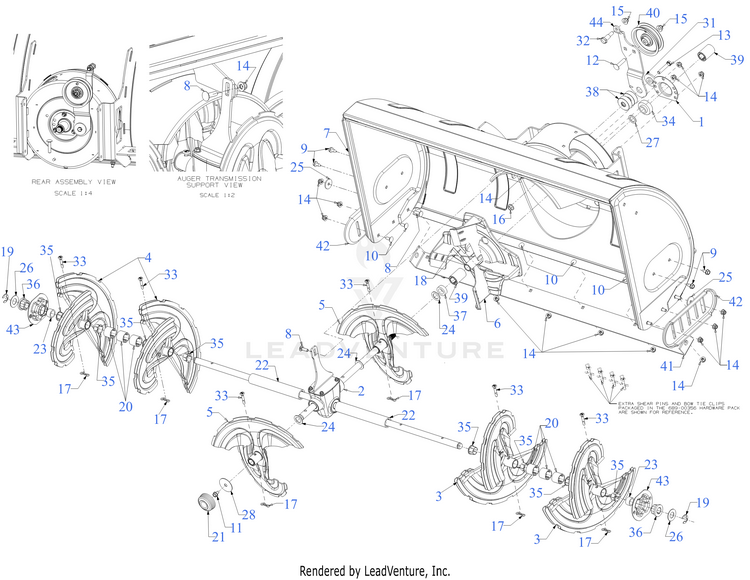

Auger Housing

...
...
1
HOUSING-BEARING MTD-05931A
...
2
42" AUGER GEARBOX ASSEMBLY (See Separate Breakdown) MTD-918-07340
...
3
AUGER ASSEMBLY (LH) *CHOOSE COLOR WHEN ORDERING* MTD-684-04163A
...
4
AUGER ASSEMBLY (RH) *CHOOSE COLOR WHEN ORDERING* MTD-684-04164A
...
5
ACCELERATOR AUGER W/BUSHNG (POWDER BLACK) *CHOOSE COLOR WHEN ORDERING* MTD-684-05015C-0637
...
6
IMPELLER ASSEMBLY (POWDER BLACK) MTD-684-05075-0637
...
7
42" AUGER HOUSING ASSEMBLY *CHOOSE COLOR WHEN ORDERING* MTD-684-05231
...
8
CARRIAGE BOLT 5/16-18 x 1.00 MTD-710-0276
...
9
SCREW 5/16-18 x .750 MTD-710-04484
...
10
CARRIAGE BOLT 5/16-18 x .75 MTD-710-0451
...
11
SCREW 5/16-18 x .500 MTD-710-0607
...
12
BOLT 3/8-16 x 1.69 GR5 MTD-710-06234
...
13
SCREW 3/8-16 x 2.0 GR 8 MTD-710-3096
...
14
FLANGE LOCK NUT 5/16-18 MTD-712-04063
...
15
NUT MTD-712-04065
...
16
FLANGE LOCK NUT MTD-712-04217
...
17
BOW TIE COTTER PIN 1/4-5/16 MTD-714-04040
...
18
ROLL PIN MTD-715-0114
...
19
E-RING MTD-716-0231
...
20
SPACER 1.25OD x .75ID X1.00 LG MTD-731-04870
...
21
CAP MTD-731-08637A
...
22
SPACER MTD-731-09558
...
23
SPACER MTD-731-10404
...
24
FLAT WASHER .793ID x 1.24OD x .060 MTD-736-0287
...
25
WASHER-5/16 x 1.25X 1.27 MTD-736-0343
...
26
FLAT WASHER MTD-736-0445
...
27
FLAT WASHER .75 x 1.13 x .10 MTD-736-04624
...
28
HUB CAP WASHER .406 x 1.92 x .060 MTD-736-3040
...
31
SHOULDER SPACER MTD-738-04162C
...
32
SHOULDER BOLT .50X.892X3/8 MTD-738-04518
...
33
SHEAR PIN (.25 x 1.50) MTD-738-05273
...
33
Cub Cadet SHEAR PINS (3X SNOW) MTD-490-241-C062
...
33
Troy-Bilt SHEAR PINS (3X SNOW) MTD-490-241-Y062
...
33
KIT-SHEAR PIN 3 STAGE (05273/06654) MTD-753-10904
...
34
BEARING W/OUT COLLAR MTD-941-0309
...
35
FLANGE BUSHING MTD-741-0493C
...
36
FLANGE BEARING MTD-741-05041
...
37
SPACER MTD-750-05218
...
38
SPACER .385ID x 1.75OD x .585THK MTD-750-06184
...
39
SPACER MTD-750-06261
...
40
FLAT PULLEY MTD-756-0627D
...
41
SHAVE PLATE 42" MTD-784-0396C-0637
...
42
SLIDE SHOE (POWDER BLACK) MTD-784-5038B-0637
...
43
HEX BREARING HOUSING *CHOOSE COLOR WHEN ORDERING* MTD-790-00534
...
44
IDLER PIVOT BRACKET (POWDER BLACK) MTD-790-00636-0637
...
xx
HARDWARE PACK (SPARE SHEAR PINS) MTD-689-00356A
...
...
...
...
...
