Craftsman 19B40024OEM 42-Inch 3x Snow Thrower (2023 & After) Snow Thrower

Model: 19B40024OEM 42-Inch 3x Snow (2023, After)

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

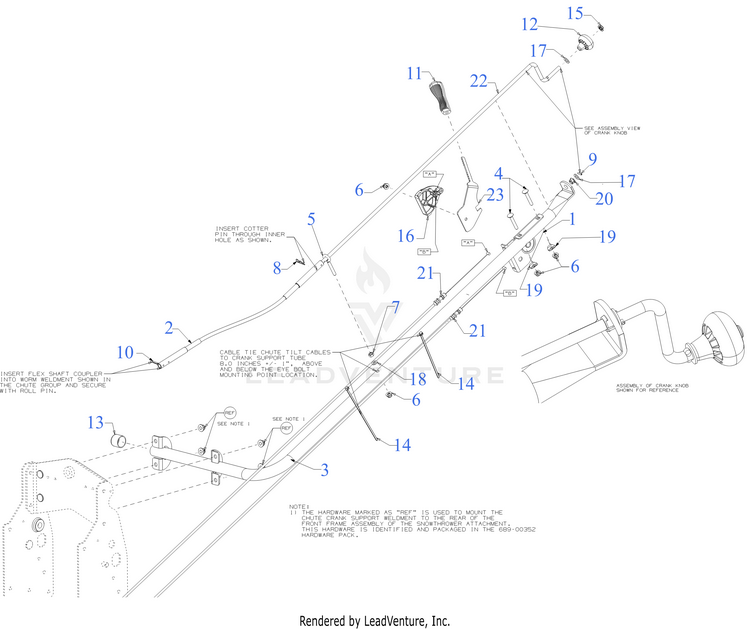

Chute Crank Assembly

...
...
1
CHUTE TILT BRACKET MTD-603-0302A-0637
...
2
CHUTE CRANK MTD-611-05064
...
3
CHUTE CRANK SUPPORT (POWDER BLACK) MTD-684-05094-0637
...
4
BOLT 5/16-18 x 2.00 GR5 MTD-710-0487
...
5
EYEBOLT 5/16-18 x 3.25 MTD-710-05050
...
6
FLANGE LOCK NUT 5/16-18 MTD-712-04063
...
7
HEX NUT 5/16-18 MTD-712-3010
...
8
INTERNAL COTTER PIN MTD-714-0101
...
9
ROLL PIN 1/18 DIA MTD-915-0138
...
10
ROLL PIN MTD-715-04095
...
11
HANDLE GRIP MTD-720-04049A
...
12
SHIFT KNOB MTD-720-04102
...
13
SEAT SPRING CAP MTD-720-05005
...
14
7" CABLE TIE MTD-725-0157
...
15
PUSH NUT MTD-726-0100
...
16
CABLE GUIDE MTD-731-1313C
...
17
FLAT WASHER MTD-736-0185
...
18
FLAT WASHER MTD-736-0264
...
19
SADDLE WASHER MTD-736-0451
...
20
BUSHING .380 ID MTD-941-0475
...
21
CHUTE CONTROL CABLE 74.5" MTD-946-04332A
...
22
CHUTE CRANK UPPER MTD-747-06436
...
23
CHUTE HANDLE TILT (POWDER BLACK) MTD-790-00650-0637
...
xx
HARDWARE PACK MTD-689-00352
...
...
...
...
...
