Craftsman 19B40024OEM 42-Inch 3x Snow Thrower (2023 & After) Snow Thrower

Model: 19B40024OEM 42-Inch 3x Snow (2023, After)

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

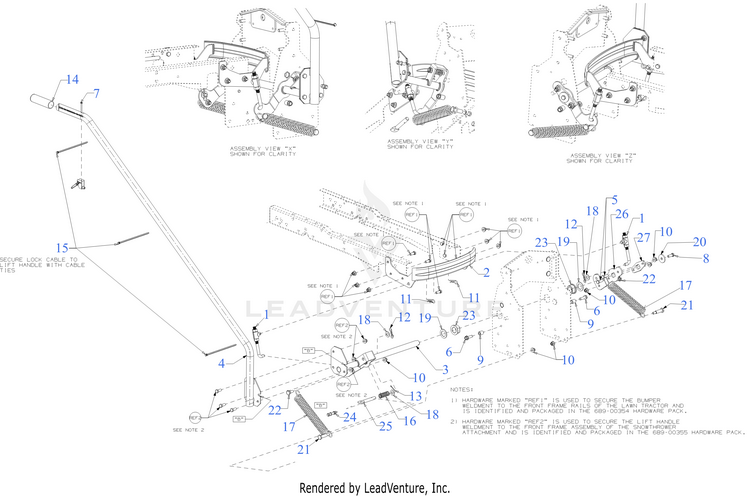

Lift Assembly

...
...
1
LIFT ROD FERRULE MTD-711-06143A
...
1
LIFT ADJUSTMENT LINK (Not Shown) MTD-747-06384
...
1
HEX NUT NYLOK 1/2-13 (Not Shown) MTD-712-05046
...
2
BUMPER ASSEMBLY (POWDER BLACK) MTD-683-05156-0637
...
3
LIFT SHAFT ASSEMBLY MTD-684-05084
...
4
LIFT HANDLE ASSEMBLY (POWDER BLACK) MTD-684-05085-0637
...
5
SCREW 3/8-16 x 1 GR5 MTD-710-0514
...
6
SCREW 3/8-16 X1.250 MTD-710-1315
...
7
SCREW #10-24 x 1.75 MTD-710-1625
...
8
SCREW 3/8-16X1.0 GR5 MTD-710-3118
...
9
SPACER .385 x .623 x .750 MTD-711-0396
...
10
NUT MTD-712-04065
...
11
HITCH PIN CLIP MTD-714-0147
...
12
BOW TIE COTTER PIN MTD-714-05005
...
13
COTTER PIN 3/32 x 1.25 MTD-714-3004
...
14
GRIP 1.188 x 4.562 MTD-720-04083
...
15
7" CABLE TIE MTD-725-0157
...
16
COMPRESSION SPRING .772 OD x 1.95 MTD-732-05216
...
17
EXTENSION SPRING 1.45 OD x 6.00 MTD-732-05231
...
18
FLAT WASHER .510 x .995 MTD-736-0272
...
19
FLAT WASHER 1.031 X1.62 X.095 MTD-736-0277
...
20
FLAT WASHER .45 x 1.5 x .172 HT MTD-736-3082A
...
21
SHOULDER SCREW .498 DIA x 1.450-THD MTD-738-0213
...
22
SHOULDER SCREW MTD-738-0380
...
23
FLANGE BEARING MTD-741-05810
...
24
LIFT CABLE MTD-946-05201
...
25
LIFT LOCK ROD MTD-747-06383A
...
26
LIFT BRACKET MTD-790-00649
...
27
LIFT LINK ADAPTER PLATE MTD-790-00657
...
xx
HARDWARE PACK MTD-689-00354
...
xx
HARDWARE PACK MTD-689-00355
...
...
...
...
...
