Craftsman 19B40024OEM 42-Inch 3x Snow Thrower (2023 & After) Snow Thrower

Model: 19B40024OEM 42-Inch 3x Snow (2023, After)

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

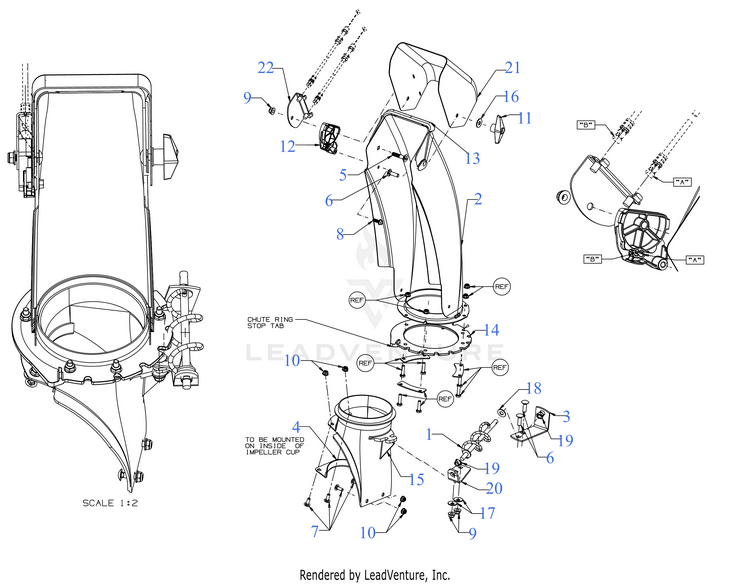

Chute

...
...
1
CHUTE CRANK ASSEMBLY MTD-684-0061A
...
2
LOWER CHUTE (POWDER BLACK) MTD-684-05072A-0637
...
3
CHUTE BRACKET *CHOOSE COLOR WHEN ORDERING* MTD-703-2735A
...
4
CHUTE REINFORCEMENT MTD-705-5226-0637
...
5
CARRIAGE BOLT 5/16-18 x 1.50 MTD-710-0262
...
6
CARRIAGE BOLT 5/16-18 x 1.00 MTD-710-0276
...
7
SCREW 1/4-20 x .75 GR5 MTD-710-0703
...
8
SCREW 1/4-15 x .750 MTD-710-0895
...
9
FLANGE LOCK NUT 5/16-18 MTD-712-04063
...
10
FLANGE LOCK NUT MTD-712-04064
...
11
Knob, Wing, 5/16-18 MTD-720-0284
...
12
CHUTE TILT GUIDE MTD-731-09535
...
13
UPPER CHUTE ADAPTER MTD-731-09539A
...
14
CHUTE CRANK RING MTD-731-10348
...
15
CHUTE ADAPTER MTD-731-1379D
...
16
Fl-Wash. .344" I.D. MTD-736-0159
...
17
BELL WASHER .337 X.867 x .057 MTD-736-0242
...
18
Fl-Wash. .385" I.D. x 7/8" MTD-736-0300
...
19
BUSHING .380 ID MTD-941-0475
...
20
CHUTE CRANK BRACKET MTD-784-5647-0637
...
21
UPPER STEEL CHUTE (REMOTE TILT) (6/1/22 & After)*CHOOSE COLOR WHEN ORDERING* MTD-790-03893
...
21
UPPER CHUTE STEEL (6/1/22 & Before)*CHOOSE COLOR WHEN ORDERING* MTD-790-00529
...
22
CABLE BRACKET GUIDE *CHOOSE COLOR WHEN ORDERING* MTD-790-00565A
...
...
...
...
...
