Craftsman 19B40024OEM 42-Inch 3x Snow Thrower (2023 & After) Snow Thrower

Model: 19B40024OEM 42-Inch 3x Snow (2023, After)

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

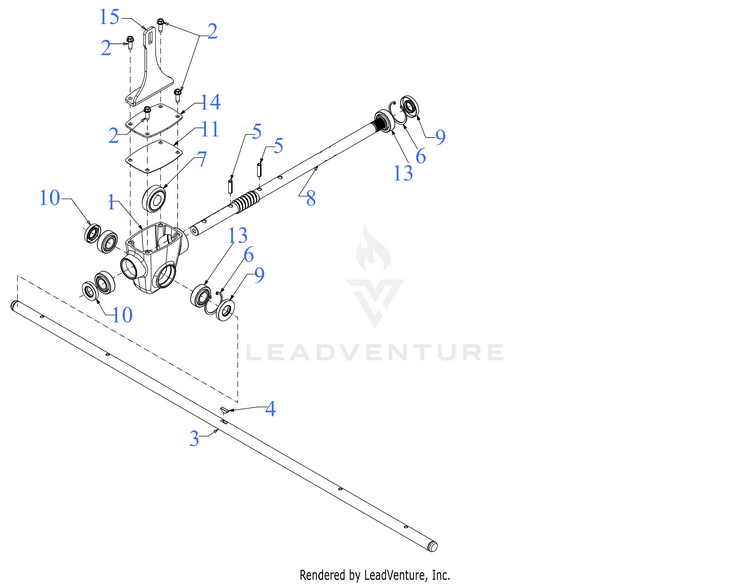

Auger Gearbox

...
...
1
AUGER HOUSING GEARBOX MTD-919-05029
...
2
SCREW 1/4-20 x .750 MTD-710-0642
...
3
AUGER AXLE MTD-711-06278
...
4
KEY 3/16 x 5/8 HI-PRO MTD-914-0161
...
5
ROLL PIN MTD-715-04034
...
6
SNAP RING MTD-716-05001
...
7
WORM GEAR 20T MTD-917-04861
...
8
WORM SHAFT MTD-917-05236
...
9
OIL SEAL MTD-721-04612
...
10
OIL SEAL MTD-721-04613
...
11
GEARBOX COVER GASKET MTD-921-04614A
...
13
BALL BEARING MTD-941-05042
...
14
GEARBOX COVER MTD-783-08281
...
15
GEARBOX SUPPORT BRACKET *CHOOSE COLOR WHEN ORDERING* MTD-790-00835
...
xx
42" AUGER GEARBOX ASSEMBLY MTD-918-07340
...
...
...
...
...
