Craftsman 19A30011799 (247.24035) (2012) Attachment

Model: 19A30011799 (247.24035) (2012)

Save
 Part Not Listed?Part Not Listed?
product name

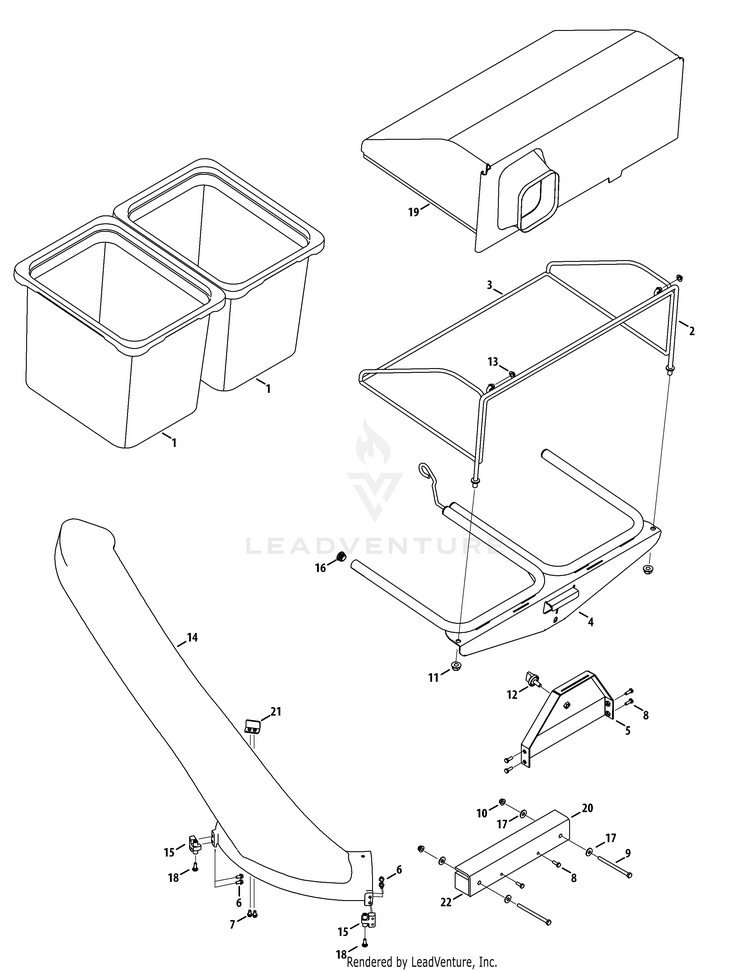

General Assembly

...
...
1
Grass Bag MTD-964-04167
...
2
BAGGER TOP COVER ASSEMBLY Once this part is No Longer Available, Please order 683P05062 MTD-683P05062
...
2
BAGGER TOP COVER ASSEMBLY (This assembly incls. 683-04771, 683-04772 & 764-04148B) MTD-683P05062
...
3
BAGGER TOP COVER ASSEMBLY Once this part is No Longer Available, Please order 683P05062 MTD-683P05062
...
3
BAGGER TOP COVER ASSEMBLY (This assembly incls. 683-04771, 683-04772 & 764-04148B) MTD-683P05062
...
4
SUPPORT ASSEMBLY (POWDER BLACK) MTD-683-04775A-0637
...
5
BAG SUPPORT BRACKET MTD-983-05137
...
6
Hex Lock Screw, 1/4-15, 0.75 MTD-710-0895
...
7
Tap Screw, 1/4-20, 0.500 MTD-710-0599
...
8
Hex Head Screw, 1/4-20, .75 MTD-710-3015
...
9
Hex Head Screw, 5/16-18, 4.50 MTD-710-3195
...
10
Flange Lock Nut, 5/16-18 MTD-712-04063
...
11
Flange Lock Nut, 1/2-13 MTD-712-04150
...
12
Knob, 3/8-16, .875 MTD-720-04061
...
13
Push Cap 3/8" Rod MTD-726-0100
...
14
BAG CHUTE 30" MTD-731-08548B
...
15
Chute Mount Bracket MTD-731-08834
...
16
Plug End MTD-735-0246A
...
17
Fl-Wash. .344" I.D. MTD-736-0159
...
18
Shoulder Screw, 1/4-15, .750 MTD-738-04519
...
19
GRASSCATCHER TOP MTD-764-04148B
...
20
WEIGHT BAR BRACKET MTD-783-07380-0712
...
21
SWITCH BRACKET MTD-783-07286A-0637
...
22
KIT-SERVICE CWT MTD-753-08183
...
...
...
...
...
