Craftsman 19A127 Rear Mount Weight Kit 19A-127-100 Attachment

Model: 19A127 Rear Mount Weight Kit 19A-127-100

Save
 Part Not Listed?Part Not Listed?
product name

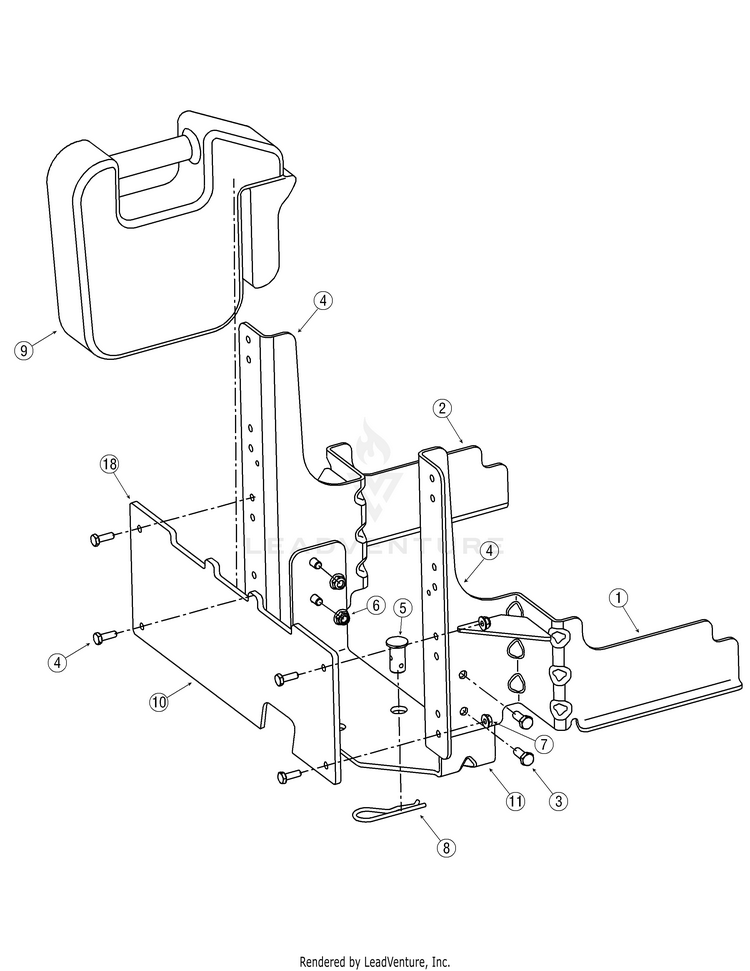

General Assembly 1

...
...
1
MOUNTING BRACKET - RH MTD-683-04348
...
2
FAST ATTACH BRACKET ASSEMBLY (POWDER BLACK) MTD-683-04350-0637
...
3
SCREW 5/16-18 x .75 GR5 MTD-710-3008
...
4
Hex Head Screw, 1/4-20 x .75 MTD-710-3015
...
5
Clevis Pin, .62 Dia. MTD-711-0309A
...
6
Flange Lock Nut, 5/16-18 MTD-712-04063
...
7
Flange Lock Nut, 1/4-20 MTD-712-04064
...
8
Internal Cotter Pin, .148 x 3.00 MTD-714-0117
...
9
Genuine Factory Parts WEIGHT - SUITCASE 42LB PLASTIC MTD-490-900-M059
...
10
Rear Weight Plate MTD-783-05244-0637
...
11
Support Cross Bracket MTD-783-0765-0637

General Assembly 2

...
...
1
Carriage Screw, 5/16-18 x 1.00" MTD-710-0276
...
2
SCREW 5/16-18 x .75 GR5 MTD-710-3008
...
3
Clevis Pin, .62" Dia. MTD-711-0309A
...
4
Flange Lock Nut, 5/16-18 MTD-712-04063
...
5
Internal Cotter Pin, .148 x 3.00 MTD-714-0117
...
6
MOUNTING SUPPORT (RH) MTD-783-06156-0637
...
7
Rear Attachment Bracket MTD-783-06168-0637
...
8
GRASSBAG HITCH BRACKET MTD-783-06230-0637
...
9
SUPPORT (LH) MTD-783-06231-0637
...
10
Genuine Factory Parts WEIGHT - SUITCASE 42LB PLASTIC MTD-490-900-M059
...
...
...
...
...
