Craftsman 18A-407-099 (247.370253) (1998) Electric Mower

Model: 18A-407-099 (247.370253) (1998)

Save
 Part Not Listed?Part Not Listed?
product name

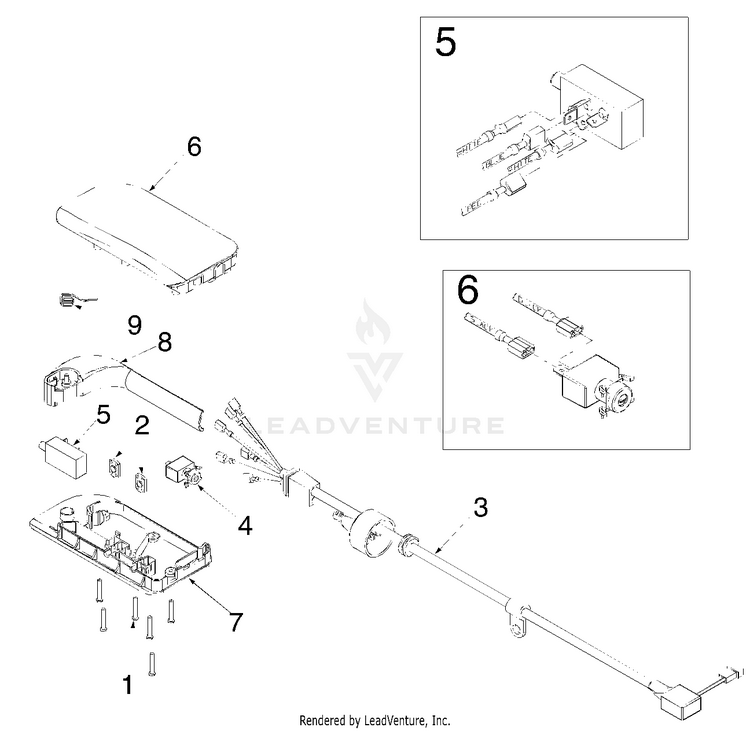

Cord & Switch Assembly (P/N 625-0050)

...
...
1
SCREW #7-19 C 1.0 MTD-710-1150
...
2
NUT MTD-712-0189
...
3
CORD-MOTOR 115V W/ MTD-724-0248
...
4
CIRCUIT BREAKER MTD-925-1712
...
5
SWITCH-PLUNGER MTD-725-1731
...
6
HOUSING-UPPER SWIT MTD-731-1985
...
7
LOWER SWITCH HOUSING MTD-731-1986
...
8
LEVER-SWITCH CONTR MTD-731-1987
...
9
TORSION SPRING MTD-732-0935

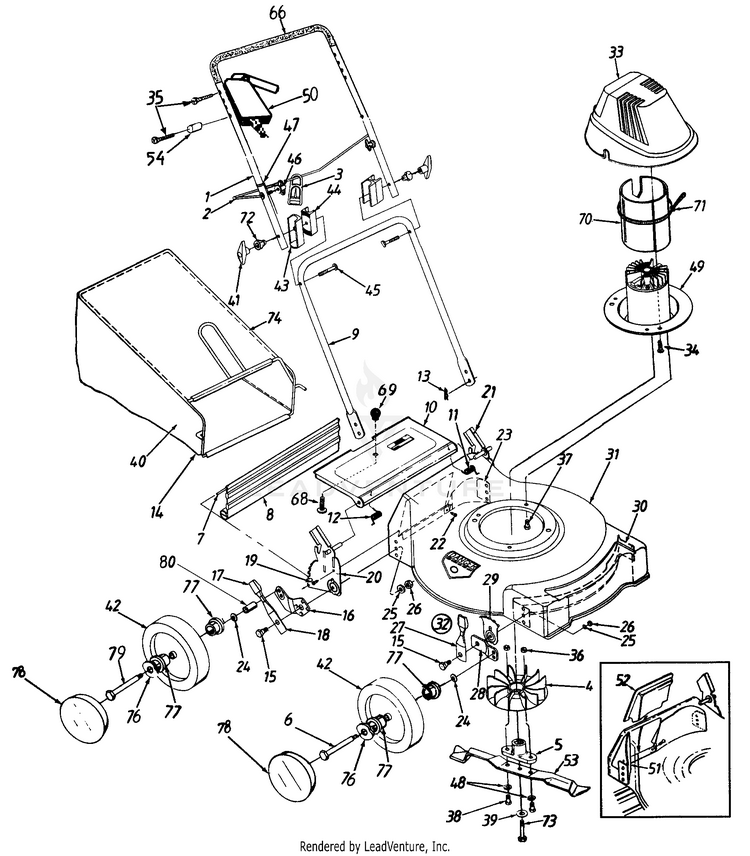

General Assembly

...
...
1
UPPER HANDLE MTD-749-0886
...
2
GUIDE ROD MTD-747-1094
...
3
CORD MINDER MTD-725-1590
...
4
FAN MTD-731-1270
...
5
BLADE ADAPTER MTD-748-0356
...
6
Axle Bolt MTD-738-0102
...
7
FLAP WIRE MTD-732-0712
...
8
FLAP MTD-731-1261
...
9
HANDLE-LOW MTD-749-0885
...
10
CHUTE DOOR MTD-782-7025-0637
...
11
SPRING-DOOR (LH) MTD-932-0677
...
12
Door Spring (R. H.) MTD-732-0678
...
13
Hairpin Clip MTD-714-0104
...
14
FRONT CATCHER FRAME MTD-764-0326
...
15
Shld. Bolt 5" X .434" MTD-738-0507B
...
16
BAR-PIVOT (RH) *ON MTD-14765
...
xx
BAR-PIVOT (LH) *ON (Not Shown) MTD-14766
...
17
HEIGHT ADJUSTMENT KNOB MTD-731-13116-1
...
18
SPRING LEVER MTD-732-0417A
...
19
Hex AB-Tap Scr. MTD-710-0896
...
20
HANDLE BRACKET ASSEMBLY (RH) (POWDER BLACK) MTD-682-0516-0637
...
21
KIT-HANDLE BRACKET MTD-753-05994
...
22
Torx. Mach. AB-Tap Scr. MTD-710-1017
...
23
Rear Baffle MTD-782-5026
...
24
Bell Washer .38" I.d. x .88"o.d. MTD-736-0105
...
25
BELL WASHER MTD-936-0356
...
26
Hex Nut 3/8-16 Thd. MTD-712-0798
...
27
Front Spring Lever MTD-94832
...
28
Pivot Bar MTD-15262B
...
29
Height Adjustment Plate MTD-787-01290A
...
30
FRONT BAFFLE MTD-782-5025-0637
...
31
19" DECK ASSEMBLY MTD-782-0054B
...
32
Height Adj. Ass'y. Comp. (R.H.) MTD-753-06761
...
xx
Height Adj. Ass'y. Comp. (R.H.) (Not Shown) MTD-753-06761
...
33
COVER-MOTOR BLACK MTD-731-1263
...
34
Scr. #10-24 x .75" Lg. MTD-710-3009
...
35
C-Sunk Scr.1/4-20 x 1.8" Lg. MTD-710-0605
...
36
Hex Nut 3/8-24 Thd. MTD-712-0241
...
37
Hex Tt-Tap Scr. 3/8-16 x 1" Lg. MTD-710-0654A
...
38
Hex Bolt 3/8-24 x 1.25" Lg. MTD-710-0191
...
39
Bell Washer .396" I.d. x 1.14" MTD-736-0452
...
40
GRASSBAG MTD-764-0446
...
xx
BAG REPLACEMENT KIT 19" MTD-753-04867
...
41
Star Knob MTD-720-04072A
...
42
Wheel - LH MTD-734-1855
...
42
TREAD TYPE - DIAMOND 7" x 1.50" MTD-734-1699
...
42
WHEEL ASSEMBLY SET OF 2 8x1.7 (GRAY) MTD-934-1841
...
42
Wheel Ass'y. Comp. (Bearing P/N 741-0484) MTD-734-1978
...
xx
BALL BEARING MTD-941-0484
...
43
Upper Handle Insulator MTD-731-1268
...
44
LOWER HANDLE INSULATOR MTD-731-1267
...
45
SCREW 5/16-18 x 3.0 GR1 MTD-710-0450
...
46
UNKNOWN MTD-NA
...
47
Cable Tie MTD-725-0157
...
48
Bell Washer 3/8" I.d. MTD-736-0331
...
49
MOTOR, CORD & SWITCH ASS'Y. (Incl. Ref. #50) MTD-624-0099
...
50
CORD & SWI MTD-625-0050
...
51
Mulching Baffle - R.R. MTD-782-5004B
...
52
Mulching Baffle Plug MTD-782-5007C
...
53
19" BLADE (MULCH) MTD-942-0719
...
54
SPACER MTD-950-0218
...
66
Foam Grip (Optional) MTD-720-0295
...
?67
HUB CAP MTD-720-0258
...
68
Truss Scr. #10-24 x .38" Lg. MTD-710-0192
...
69
KNOB MTD-720-0275
...
70
Cable Tie MTD-726-0230
...
71
INSULATOR-MOTOR HS MTD-721-0311
...
72
INSULATOR KNOB MTD-731-1388
...
73
SCREW 3/8-24 x 2.50 GR8 MTD-710-1251
...
74
FRONT CATCHER FRAME (POWDER BLACK) MTD-764-0325-0637
...
76
Wave Washer.510 ID x.750 OD Used with Bearing Wheel MTD-936-0504
...
77
Ball Bearing (2 Req’d per wheel) MTD-NA
...
78
HUB CAP Optional MTD-920-0249
...
78
HUB CAP Optional MTD-720-0258
...
78
Hub Cap Optional MTD-731-0981C
...
78
Hub Cap (Beige) Optional MTD-731-0982C
...
79
Rear Axle Bolt MTD-738-0102
...
xx
Rear Axle Bolt Used with Bearing Wheel MTD-738-0213
...
80
Spacer.380" I.D. x .625" O.D. x .227 Used with Bearing Wheel MTD-950-0535

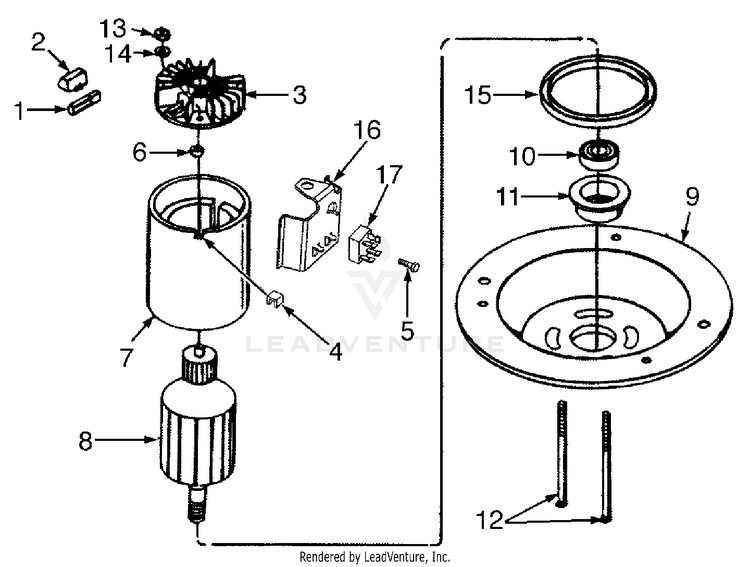

Motor

...
...
1
BRUSH & LINER ASSEMBLY MTD-624-0031
...
2
BRUSH HOLDER CAP MTD-924-0200
...
3
End Shield Assembly. W/plug (Includes Ref. 1, 2 & 6) MTD-624-0070
...
4
Insulator Wire (Output) MTD-721-0305
...
5
Hex Tap Scr. #10-16 x .62" Lg. MTD-710-3009
...
6
NEEDLE BEARING MTD-741-0875
...
7
Magnet Housing Assembly (Not available for service) MTD-NA
...
8
Armature Assembly MTD-624-0029
...
9
Motor End Plate Assembly (Includes Ref. 10 & 11) MTD-624-0062
...
10
BALL BEARING MTD-941-0600
...
11
ADAPTOR-BEARING MTD-748-0348
...
12
CARRIAGE BOLT MTD-710-1176
...
13
Hex L-Nut 1/4-20 Thd. MTD-712-0324
...
14
Fl. Washer .26" I.D. x .72" MTD-736-3090
...
15
INSULATOR-MOTOR HSG MTD-721-0306
...
16
BRACKET, RECTIFIER HE MTD-782-5016
...
17
Rectifier MTD-925-1715
...
?18
Heat Sink Compound (not shown) MTD-721-0382
...
...
...
...
...
