Craftsman 186-407-099 (247.370252) (1996) Electric Mower

Model: 186-407-099 (247.370252) (1996)

Save
 Part Not Listed?Part Not Listed?
product name

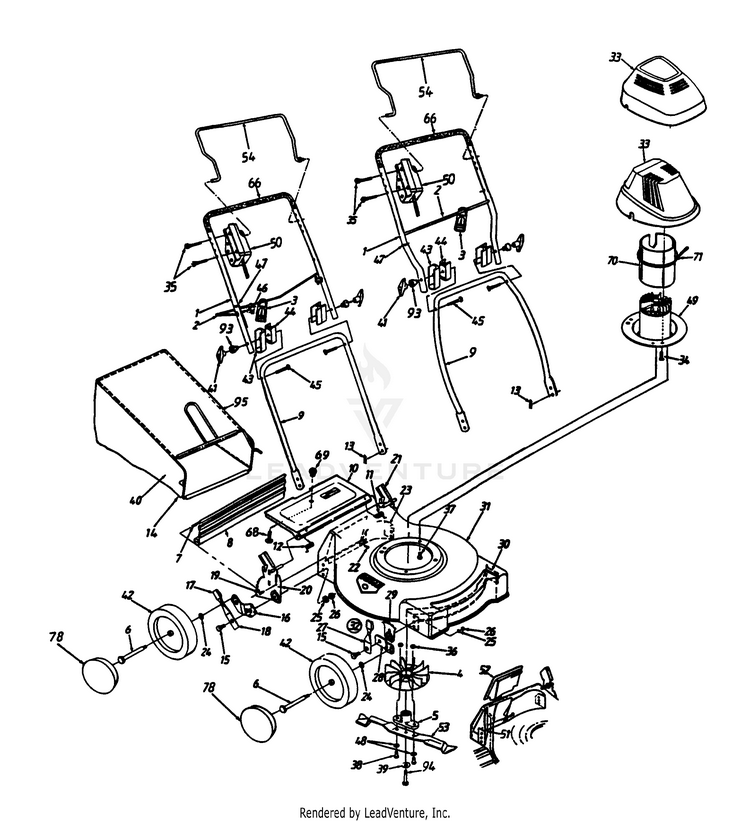

General Assembly

...
...
1
UPPER HANDLE MTD-749-0883
...
xx
HANDLE-LOW MTD-749-0885
...
2
GUIDE ROD MTD-747-1094
...
3
CORD MINDER MTD-725-1590
...
4
FAN MTD-731-1270
...
5
BLADE ADAPTER MTD-748-0356
...
6
Axle Bolt MTD-738-0102
...
7
FLAP WIRE MTD-732-0712
...
8
FLAP MTD-731-1261
...
9
LOWER HANDLE MTD-749-0882
...
10
CHUTE DOOR MTD-782-7025-0637
...
11
SPRING-DOOR (LH) MTD-932-0677
...
12
Door Spring - R.H. MTD-732-0678
...
13
Hairpin Clip MTD-714-0104
...
14
FRONT CATCHER FRAME MTD-764-0326
...
15
Shld. Bolt .5" Dia. x .434" MTD-738-0507B
...
16
BAR-PIVOT (RH) *ON MTD-14765
...
xx
BAR-PIVOT (LH) *ON (Not Shown) MTD-14766
...
17
HEIGHT ADJUSTMENT KNOB MTD-731-13116-1
...
18
SPRING LEVER MTD-732-0417A
...
19
Hex AB-Tap Scr. 1/4-14 x .62" Lg. MTD-710-0896
...
20
HANDLE BRACKET ASSEMBLY (RH) (POWDER BLACK) MTD-682-0516-0637
...
21
KIT-HANDLE BRACKET MTD-753-05994
...
22
Torx . Mach. AB-Tap Scr. 1/4 x .62" Lg. MTD-710-1017
...
23
Rear Baffle MTD-782-5026
...
24
Bell-Wash. .38" I.D. x .88" O.D. MTD-736-0105
...
25
BELL WASHER MTD-936-0356
...
26
Hex Nut 3/8-16 Thd. Common Hardware - May be purchased locally. MTD-712-0798
...
27
Front Spring Lever MTD-94832
...
28
Pivot Bar MTD-15262B
...
29
Height Adjustment Plate MTD-787-01290A
...
30
FRONT BAFFLE MTD-782-5025-0637
...
31
19" DECK ASSEMBLY MTD-782-0054B
...
32
Height Adj. Ass'y. Comp. (R.H.) MTD-753-06761
...
xx
Height Adj. Ass'y. Comp. (R.H.) (Not Shown) MTD-753-06761
...
33
MOTOR COVER MTD-731-1264
...
xx
COVER-MOTOR BLACK MTD-731-1263
...
34
Scr. #10-24 x .75" Lg. MTD-710-3009
...
35
C-Sunk Scr. 1/4-20 x 1.8" Lg. MTD-710-0605
...
36
Hex Nut 3/8-24 Thd. MTD-712-0241
...
37
Hex TT-Tap Scr. 3/8-16 x 1" Lg. MTD-710-0654A
...
38
Hex Bolt 3/8-24 x 1.25" Lg. MTD-710-0191
...
39
Bell-Wash. .396" I.D. x 1.14" MTD-736-0452
...
40
GRASSBAG MTD-764-0446
...
xx
BAG REPLACEMENT KIT 19" MTD-753-04867
...
41
Star Knob MTD-720-04072A
...
42
TREAD TYPE - DIAMOND 7" x 1.50" MTD-734-1699
...
xx
Wheel - LH MTD-734-1855
...
43
Upper Handle Insulator MTD-731-1268
...
44
LOWER HANDLE INSULATOR MTD-731-1267
...
45
SCREW 5/16-18 x 3.0 GR1 MTD-710-0450
...
46
UNKNOWN MTD-NA
...
47
Cable Tie MTD-726-0230
...
48
Bell-Wash. 3/8" I.D. MTD-736-0331
...
49
MOTOR, CORD & SWITCH ASS'Y. MTD-818-60014
...
50
CORD & SWITCH ASS'Y. COMP. Part of Motor, Switch & Cord Ass'y. Comp. (Ref. 49) MTD-625-0018A
...
xx
SWITCH Part of Motor, Switch & Cord Ass'y. Comp. (Ref. 49) MTD-725-1565
...
xx
CORD ASS'Y. Part of Motor, Switch & Cord Ass'y. Comp. (Ref. 49) MTD-724-0243
...
51
Mulching Baffle - R.R. MTD-782-5004B
...
52
Mulching Baffle Plug MTD-782-5007C
...
53
19" BLADE (MULCH) MTD-942-0719
...
54
LEVER MTD-747-0622
...
66
Grip Foam MTD-720-0295
...
?67
HUB CAP MTD-720-0258
...
68
Truss Scr. #10-24 x .38" Lg. MTD-710-0192
...
69
KNOB MTD-720-0275
...
70
BRUSH & LINER ASSEMBLY Part of Motor, Switch & Cord Ass'y. Comp. (Ref. 49) MTD-624-0031
...
71
BRUSH HOLDER CAP Part of Motor, Switch & Cord Ass'y. Comp. (Ref. 49) MTD-924-0200
...
78
Motor End Plate MTD-724-0194
...
?83
CARRIAGE BOLT Part of Motor, Switch & Cord Ass'y. Comp. (Ref. 49) MTD-710-1176
...
?92
INSULATOR-MOTOR HS MTD-721-0311
...
93
INSULATOR KNOB MTD-731-1388
...
94
SCREW 3/8-24 x 2.50 GR8 MTD-710-1251
...
95
FRONT CATCHER FRAME (POWDER BLACK) MTD-764-0325-0637

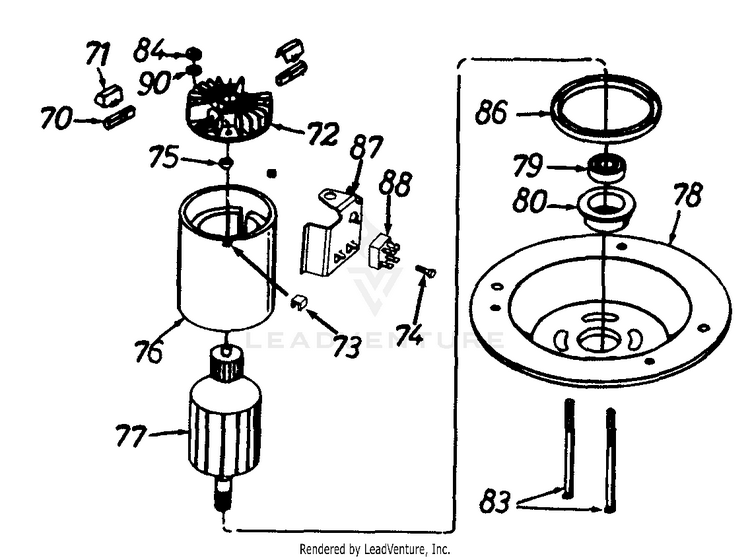

Motor Assembly

...
...
70
BRUSH & LINER ASSEMBLY Part of Motor, Switch & Cord Ass'y. Comp, See "Rotary Mowers (Part 1)" for breakdown. MTD-624-0031
...
71
BRUSH HOLDER CAP Part of Motor, Switch & Cord Ass'y. Comp, See "Rotary Mowers (Part 1)" for breakdown. MTD-924-0200
...
72
End Shield Ass'y. w/Plug (Incl. Ref. 70 & 71) Part of Motor, Switch & Cord Ass'y. Comp, See "Rotary Mowers (Part 1)" for breakdown. MTD-624-0070
...
73
Insulator Wire (Output) Part of Motor, Switch & Cord Ass'y. Comp, See "Rotary Mowers (Part 1)" for breakdown. MTD-721-0305
...
74
Hex Wash. Hd. Self-Tap Scr. Part of Motor, Switch & Cord Ass'y. Comp, See "Rotary Mowers (Part 1)" for breakdown. MTD-710-0651
...
75
NEEDLE BEARING Part of Motor, Switch & Cord Ass'y. Comp, See "Rotary Mowers (Part 1)" for breakdown. MTD-741-0875
...
76
UNKNOWN Part of Motor, Switch & Cord Ass'y. Comp, See "Rotary Mowers (Part 1)" for breakdown. MTD-NA
...
77
Armature Ass'y. Part of Motor, Switch & Cord Ass'y. Comp, See "Rotary Mowers (Part 1)" for breakdown. MTD-624-0029
...
78
Motor End Plate Part of Motor, Switch & Cord Ass'y. Comp, See "Rotary Mowers (Part 1)" for breakdown. MTD-724-0194
...
79
BALL BEARING Part of Motor, Switch & Cord Ass'y. Comp, See "Rotary Mowers (Part 1)" for breakdown. MTD-941-0600
...
80
ADAPTOR-BEARING Part of Motor, Switch & Cord Ass'y. Comp, See "Rotary Mowers (Part 1)" for breakdown. MTD-748-0348
...
83
CARRIAGE BOLT Part of Motor, Switch & Cord Ass'y. Comp, See "Rotary Mowers (Part 1)" for breakdown. MTD-710-1176
...
84
Hex L-Nut 1/4-20 Thd. Part of Motor, Switch & Cord Ass'y. Comp, See "Rotary Mowers (Part 1)" for breakdown. MTD-712-0324
...
86
INSULATOR-MOTOR HSG Part of Motor, Switch & Cord Ass'y. Comp, See "Rotary Mowers (Part 1)" for breakdown. MTD-721-0306
...
87
BRACKET, RECTIFIER HE Part of Motor, Switch & Cord Ass'y. Comp, See "Rotary Mowers (Part 1)" for breakdown. MTD-782-5016
...
88
RECTIFIER Part of Motor, Switch & Cord Ass'y. Comp, See "Rotary Mowers (Part 1)" for breakdown. MTD-725-1631
...
90
Fl-Wash.26" I.D. x .72" O.D. Part of Motor, Switch & Cord Ass'y. Com,.See "Rotary Mowers (Part 1)" for breakdown.) MTD-736-3090
...
...
...
...
...
