Craftsman 184-107-099 (247.370280) (1994) Electric Mower

Model: 184-107-099 (247.370280) (1994)

Save
Part Not Listed?Part Not Listed?

product name

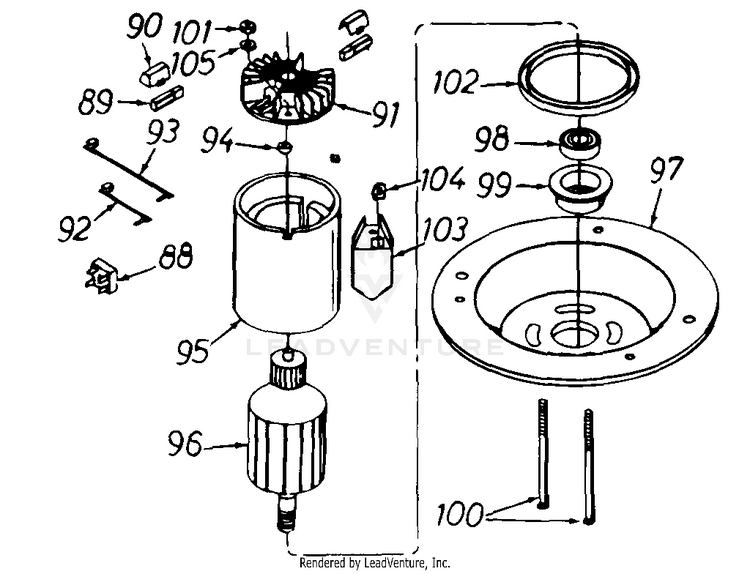

Electric Mower

...
...
88
Rectifier Part of Motor, Switch & Cord Ass'y. Comp. (Ref. 49) MTD-725-1602

...
89
BRUSH & LINER ASSEMBLY Part of Motor, Switch & Cord Ass'y. Comp. (Ref. 49) MTD-624-0031

...
90
BRUSH HOLDER CAP Part of Motor, Switch & Cord Ass'y. Comp. (Ref. 49) MTD-924-0200

...
91
END SHIELD BRUSHES Part of Motor, Switch & Cord Ass'y. Comp. (Ref. 49) MTD-724-0201

...
92
BRUSH-LEAD-RED Part of Motor, Switch & Cord Ass'y. Comp. (Ref. 49) MTD-729-0328

...
93
BRUSH-LEAD-BLUE Part of Motor, Switch & Cord Ass'y. Comp. (Ref. 49) MTD-729-0329

...
94
NEEDLE BEARING Part of Motor, Switch & Cord Ass'y. Comp. (Ref. 49) MTD-741-0875

...
95
Housing Magnet Ass'y. Part of Motor, Switch & Cord Ass'y. Comp. (Ref. 49) MTD-624-0028

...
96
Armature Ass'y. Part of Motor, Switch & Cord Ass'y. Comp. (Ref. 49) MTD-624-0029

...
97
Motor End Plate Part of Motor, Switch & Cord Ass'y. Comp. (Ref. 49) MTD-724-0194

...
98
BALL BEARING Part of Motor, Switch & Cord Ass'y. Comp. (Ref. 49) MTD-941-0600

...
99
ADAPTOR-BEARING Part of Motor, Switch & Cord Ass'y. Comp. (Ref. 49) MTD-748-0348

...
100
CARRIAGE BOLT Part of Motor, Switch & Cord Ass'y. Comp. (Ref. 49) MTD-710-1176

...
101
Hex L-Nut 1/4-20 Thd. Part of Motor, Switch & Cord Ass'y. Comp. (Ref. 49) MTD-712-0324

...
102
INSULATOR-MOTOR HSG Part of Motor, Switch & Cord Ass'y. Comp. (Ref. 49) MTD-721-0306

...
103
COVER-RECTIFIER Part of Motor, Switch & Cord Ass'y. Comp. (Ref. 49) MTD-724-0202

...
104
BUSHING-STRAIN RELIEF Part of Motor, Switch & Cord Ass'y. Comp. (Ref. 49) MTD-731-1207

...
105
Fl-Wash .26" I.D. x .72" O.D. Part of Motor, Switch & Cord Ass'y. Comp. (Ref. 49) MTD-736-3090

General Assembly

...
...
1
UPPER HANDLE MTD-749-0884

...
2
GUIDE ROD MTD-747-1094

...
3
CORD MINDER MTD-725-1590


...
5
BLADE ADAPTER MTD-748-0356

...
6
Axle Bolt MTD-738-0102

...
7
HINGE CLIP MTD-17098P


...
9
Lower Handle MTD-749-0928A-0637

...
15
Shld. Bolt .5" Dia. x .434" MTD-738-0507B

...
20
Handle Brkt. Ass'y. - R.H. MTD-682-3012A

...
21
Handle Brkt. Ass'y. - L.H. MTD-682-3011A

...
?22
Torx . Mach. AB-Tap Scr. 1/4 x .62" Lg. MTD-710-1017

...
24
Bell-Wash .38" I.D. x .88" O.D. MTD-736-0105

...
25
BELL WASHER MTD-936-0356

...
26
Hex Nut 3/8-16 Thd. For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-712-0798

...
27
Front Spring Lever MTD-94832

...
28
Pivot Bar MTD-15262B

...
29
Height Adjustment Plate MTD-787-01290A

...
31
20" Deck Ass'y. MTD-682-0016

...
32
Height Adj. Ass'y. Comp. (R.H.) MTD-753-06761

...
xx
Height Adj. Ass'y. Comp. (R.H.) (Not Shown) MTD-753-06761

...
33
COVER-MOTOR-YELLOW MTD-731-1269

...
xx
MOTOR COVER MTD-731-1264

...
34
SCREW #10-16 x .750 MTD-710-1128

...
35
SCREW #7-19 C 1.0 MTD-710-1150

...
36
Hex Nut 3/8-24 Thd. MTD-712-0241

...
37
HEX SCREW 3/8 x 7/8 MTD-910-1006

...
38
Hex Bolt 3/8-24 x 1.25" Lg. MTD-710-0191

...
39
Bell-Wash.396" I.D. x 1.14" 0.D. MTD-736-0452

...
42
Wheel - LH MTD-734-1855

...
xx
Wheel Ass'y. Comp. (Yellow Rim) MTD-73??790

...
46
Hex Top L-Nut 1/4-20 Thd. MTD-712-0324

...
47
Cable Tie MTD-725-0157

...
48
L-Wash. 3/8" I.D. For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-736-0169

...
49
MOTOR & SWITCH ASS'Y. COMP. MTD-818-60013

...
50
CORD & SWITCH ASS'Y COMP (See Breakdown) MTD-624-0032

...
53
20" BLADE (MULCH) MTD-742-0720-0637

...
54
HANDLE-SWITCH BOX MTD-731-1210

...
55

...
56

...
57

...
58
2 PRONG PLUG (POLARIZED) MTD-929-0304

...
59
PLUG RETAINER SPRING MTD-932-0680

...
60
RETAINER-PLUG BLACK MTD-731-1211

...
61
LATCH-SWITCH BOX MTD-731-1198

...
62
CORD ASS'Y (Incl. Ref. #58) MTD-624-0053

...
63
SPRING-LATCH (SW-B MTD-732-0681

...
64
HOUSING-UPPER SWIT MTD-731-1208

...
65
HOUSING-LOWER SWIT (Not Shown) MTD-731-1209

...
66
Grip Foam (Optional) MTD-720-0295

...
68
STRIP-INSULATOR MTD-721-0309

...
69
LUG INSULATOR MTD-731-1219

...
70
SCREW 1/4-20 X1.00 GR5 For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-710-0597

...
71
Fl-Wash .26" I.D. x .72" O.D. MTD-736-3090

...
72
INSULATOR-MOTOR HS MTD-721-0311

...
73
Cable Tie MTD-726-0230

...
?77
SCREW 3/8-24 x 2.50 GR8 MTD-710-1251

...
78
Wing Nut MTD-720-0279

...
79
Star Knob MTD-720-04072A

...
80
Hairpin Clip MTD-714-0104

...
82
Side Discharge Deflector MTD-731-1409B

...
83
MULCH PLUG ASSEMBLY MTD-682-7000

...
84
Hex Wash. Hd. TT-Tap Scr. 1/4-20 x .5" Lg. MTD-710-0599

...
85
SPRING WASHER BELL MTD-736-0270

...
86
Carr. Bolt 5/16-18 x 2" Lg. MTD-710-1174

...
87
HANDLE BRACKET MTD-782-7007

...
106
HUBCAP-SPOKE YELLOW (Optional) MTD-731-1426B

...
107
BALL BEARING (Used w/734-1790 Wheel) MTD-941-0484

...
108
Wave Washer.510 ID x.750 OD (Used w/Ref. 107) MTD-936-0504
...
...
...
...
...
