Craftsman 182-387B099 (247.370250) (1992) Electric Mower

Model: 182-387B099 (247.370250) (1992)

Save
 Part Not Listed?Part Not Listed?
product name

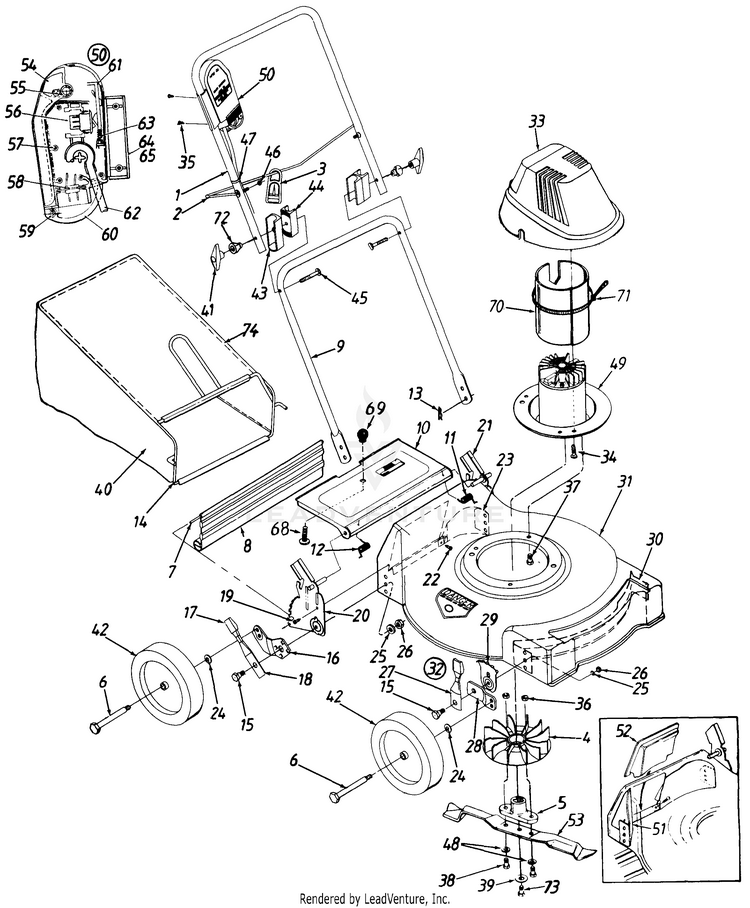

Handle And Wheel Assembly

...
...
1
UPPER HANDLE MTD-749-0883
...
2
GUIDE ROD MTD-747-1094
...
3
CORD MINDER MTD-725-1590
...
4
FAN MTD-731-1270
...
5
BLADE ADAPTER MTD-748-0356
...
6
Axle Bolt MTD-738-0102
...
7
FLAP WIRE MTD-732-0712
...
8
FLAP MTD-731-1261
...
9
HANDLE-LOW MTD-749-0885
...
10
CHUTE DOOR MTD-782-7025-0637
...
11
SPRING-DOOR (LH) MTD-932-0677
...
12
Door Spring - R.H. MTD-732-0678
...
13
Hairpin Clip MTD-714-0104
...
14
FRONT CATCHER FRAME MTD-764-0326
...
15
Shld. Bolt .5" Dia. x .434" MTD-738-0507B
...
16
BAR-PIVOT (RH) *ON MTD-14765
...
xx
BAR-PIVOT (LH) *ON (Not Shown) MTD-14766
...
17
HEIGHT ADJUSTMENT KNOB MTD-731-13116-1
...
18
SPRING LEVER MTD-732-0417A
...
19
SCREW 1/4-14 x .625 MTD-710-0892
...
20
HANDLE BRACKET ASSEMBLY (RH) (POWDER BLACK) MTD-682-0516-0637
...
21
KIT-HANDLE BRACKET MTD-753-05994
...
22
Torx. Mach. AB-Tap Scr. 1/4 x .62" Lg. MTD-710-1017
...
23
Rear Baffle MTD-782-5026
...
24
Bell-Wash. .38" I.D. x.88" O.D. MTD-736-0105
...
25
BELL WASHER MTD-936-0356
...
26
Hex Nut 3/8-16 Thd. MTD-712-0798
...
27
Front Spring Lever MTD-94832
...
28
Pivot Bar MTD-152628
...
29
Height Adjustment Plate MTD-787-01290A
...
30
FRONT BAFFLE MTD-782-5025-0637
...
31
19" DECK ASSEMBLY MTD-782-0054B
...
32
Height Adj. Ass'y. Comp. (R.H.) MTD-753-06761
...
xx
Height Adj. Ass'y. Comp. (R.H.) (Not Shown) MTD-753-06761
...
33
COVER-MOTOR BLACK MTD-731-1263
...
34
SCREW #10-16 x .750 MTD-710-1128
...
35
SCREW #7-19 C 1.0 MTD-710-1150
...
36
Hex Nut 3/8-24 Thd. MTD-712-0241
...
37
HEX SCREW 3/8 x 7/8 MTD-910-1006
...
38
Hex Bolt 3/8-24 x 1.25" Lg. MTD-710-0191
...
39
Bell-Wash. .396" I.D. x 1.14" MTD-736-0452
...
40
GRASSBAG MTD-764-0446
...
41
Star Knob MTD-720-04072A
...
42
Wheel Ass'y. Comp. MTD-634-0020
...
43
Upper Handle Insulator MTD-731-1268
...
44
LOWER HANDLE INSULATOR MTD-731-1267
...
45
SCREW 5/16-18 x 3.0 GR1 MTD-710-0450
...
46
Hex Top L-Nut 1/4-20 Thd. MTD-712-0324
...
47
TIE-PLASTIC MTD-726-0303
...
48
Bell-Wash. 3/8" I.D. MTD-736-0331
...
49
MOTOR & SWITCH ASS'Y. COMP. MTD-818-60013
...
50
CORD & SWITCH ASS'Y COMP MTD-624-0032
...
51
Mulching Baffle - R.R. (Optional) MTD-782-5004B
...
52
Mulching Baffle Plug (Optional) MTD-782-5007C
...
53
19" MULCHING BLADE MTD-742-0577
...
54
HANDLE-SWITCH BOX MTD-731-1210
...
55
SPRING MTD-732-0679
...
56
SWITCH MTD-725-1565
...
57
SCREW MTD-710-1147
...
58
2 PRONG PLUG (POLARIZED) MTD-929-0304
...
59
PLUG RETAINER SPRING MTD-932-0680
...
60
RETAINER-PLUG BLACK MTD-731-1211
...
61
LATCH-SWITCH BOX MTD-731-1198
...
62
CORD ASS'Y (Incl. Ref. #58) MTD-624-0053
...
63
SPRING-LATCH (SW-B MTD-732-0681
...
64
HOUSING-UPPER SWIT MTD-731-1208
...
65
HOUSING-LOWER SWIT (Not Shown) MTD-731-1209
...
68
Truss Scr. #10-24 x .38" Lg. MTD-710-0192
...
69
KNOB MTD-720-0275
...
70
INSULATOR-MOTOR HS MTD-721-0311
...
71
Cable Tie MTD-726-0230
...
72
INSULATOR KNOB MTD-731-1388
...
73
SCREW 3/8-24 x 2.50 GR8 MTD-710-1251
...
74
FRONT CATCHER FRAME (POWDER BLACK) MTD-764-0325-0637
...
...
...
...
...
