Craftsman 17AKCACS299 (247.204122) (Z6000) (2015) Z-Series

Model: 17AKCACS299 (247.204122) (Z6000) (2015)

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

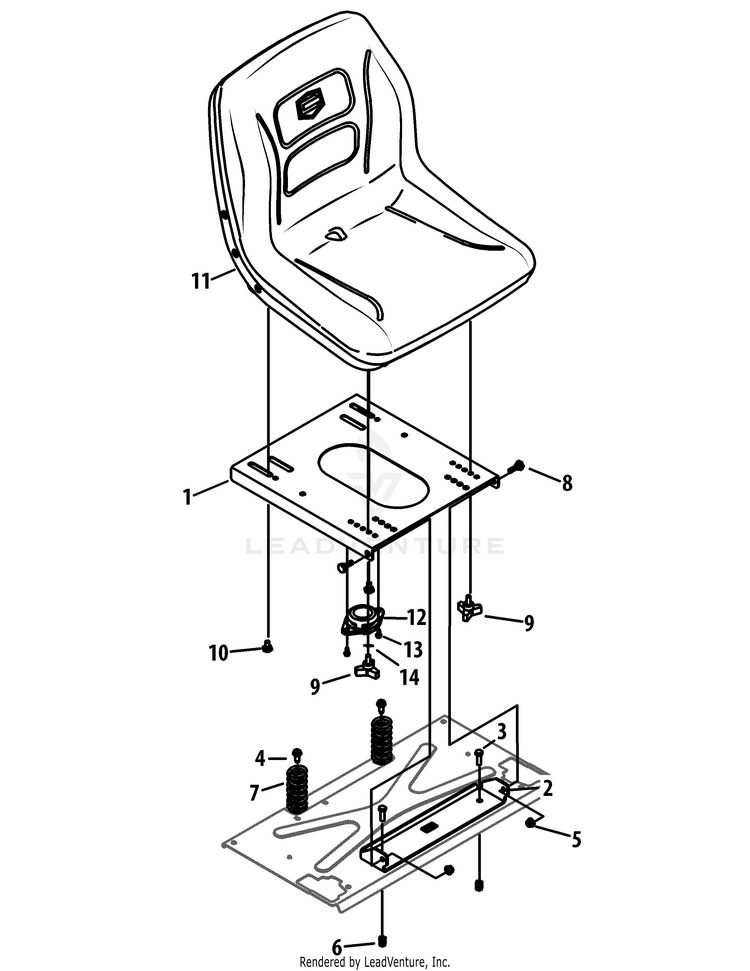

Seat Assembly

...
...
1
Seat Plate MTD-703-09603A-0637
...
2
SEAT PIVOT BRACKET (POWDER BLACK) MTD-703-09633-0637
...
3
Hex Screw, 5/16-18 x 1.00 MTD-710-0643
...
4
Hex Washer Screw, 5/16-18 x .750 MTD-710-1260A
...
5
Flange Lock Nut, 5/16-18 MTD-712-04063
...
6
Lock Nut, 5/16-18 MTD-728-04068
...
7
Compression Spring, 1.71 x 3.25 x .23 MTD-732-04508
...
8
Shld. Bolt .437" x .286" MTD-738-0296
...
9
Knob, 5/16-18 MTD-720-0170
...
10
Shoulder Bolt, 5/16-18 x .435 x .160 MTD-938-0155
...
11
Seat MTD-757-05023A
...
12
SEAT SWITCH NC/NC MTD-725P05058
...
13
Hex Washer Screw, #12-16 x .50 MTD-710-04261
...
14
Lock Washer, 5/16 MTD-736-0607
...
...
...
...
...
