Craftsman 17AKCACS299 (247.204122) (Z6000) (2015) Z-Series

Model: 17AKCACS299 (247.204122) (Z6000) (2015)

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

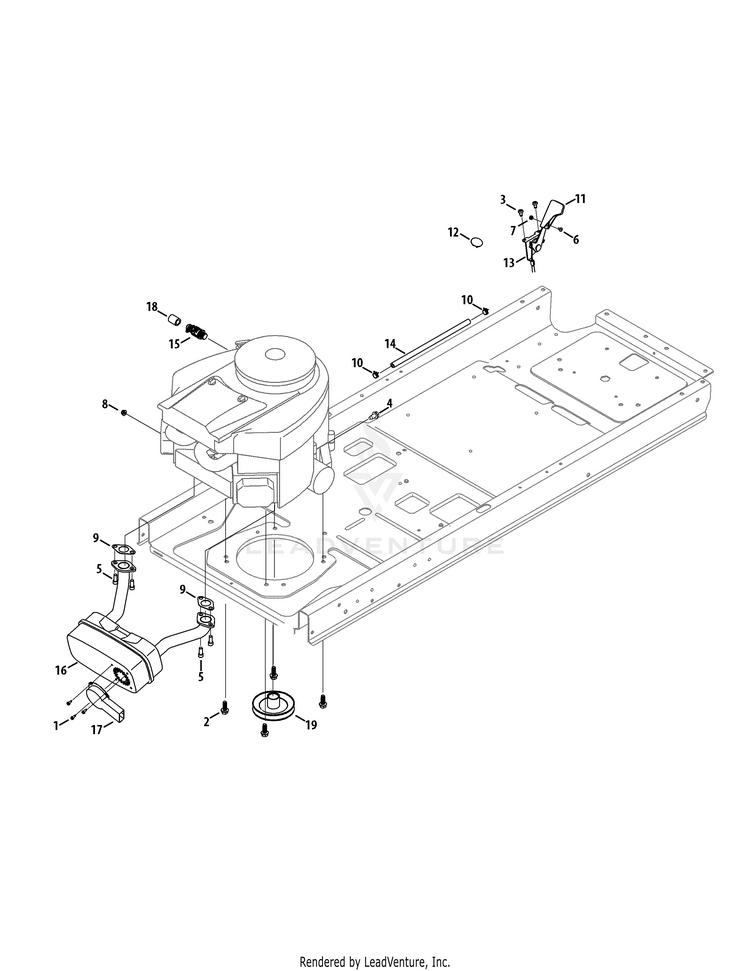

Engine Accessories

...
...
1
Hex Washer Screw, #8-18 x .500 MTD-710-0227
...
2
Hex Washer Screw, 3/8-16 x 1.000 MTD-710-04683C
...
3
Screw, 1/4-20 x .5 MTD-710-05070A
...
4
Hex Washer Screw, 1/4-20 x .500 MTD-710-0599
...
5
Screw, 5/16-18 x .750 MTD-710-1314A
...
6
Machine Screw, #8-32 x .375 MTD-710-3217
...
7
Hex Nut, #8-32 MTD-712-0142
...
8
Flange Lock Nut, 1/4-20 MTD-712-04064
...
9
MUFFLER GASKET MTD-721P0460
...
10
Hose Clamp, .490 MTD-726-0205
...
11
Throttle Knob MTD-731-09637
...
12
Choke Plug MTD-731-1999
...
13
Throttle/Choke Cable MTD-946-05130
...
14
FUEL HOSE 1/4-36" MTD-751-22813-36
...
15
Oil Drain MTD-951-10517A
...
16
EXHAUST MUFFLER (B&S)(TWIN) MTD-951-10542E
...
17
EXHAUST DELECTOR (LONG) MTD-751-11053B
...
18
Oil Drain Extension Hose MTD-751-3141-14
...
19
TRANSMISSION DRIVE PULLEY MTD-756-04494C
...
...
...
...
...
