Craftsman 17AKCACS299 (247.204122) (Z6000) (2015) Z-Series

Model: 17AKCACS299 (247.204122) (Z6000) (2015)

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

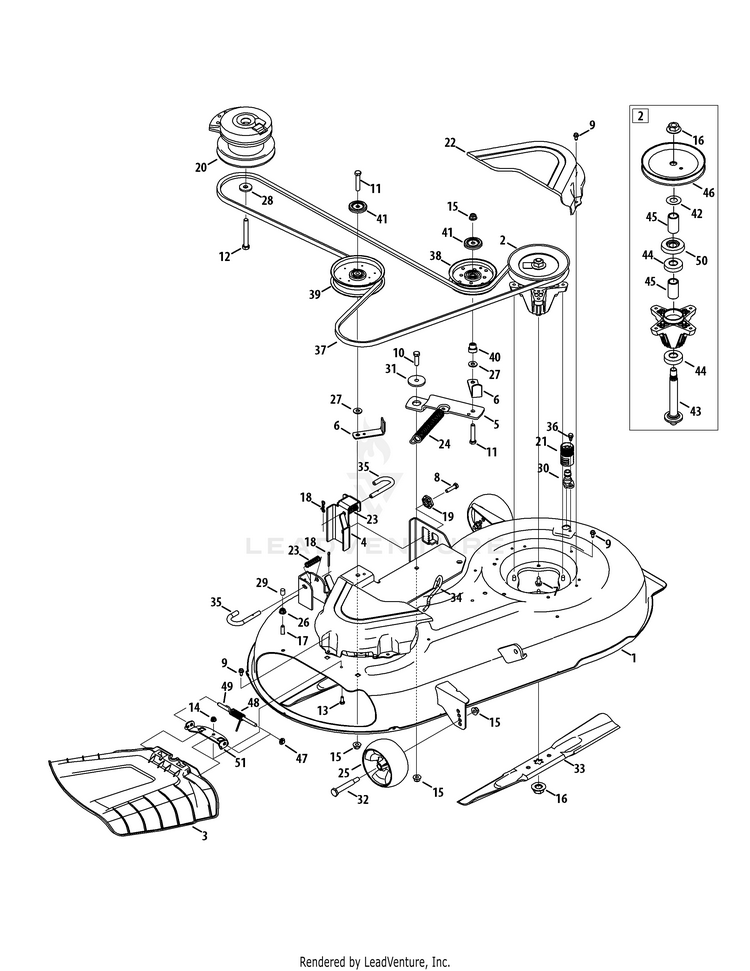

Mower Deck

...
...
1
42" DECK KIT (05209) MTD-753-11241
...
2
Spindle Assembly MTD-918-04822B
...
3
CHUTE ASSEMBLY MTD-631-04354C
...
4
DECK HANGER BRACKET (LH) MTD-603-05215A-0637
...
5
IDLER PIVOT BRACKET MTD-703-08336E
...
6
Bracket Belt Guard MTD-703-09583-0637
...
7
Hex Washer Screw, 5/16-18 x .750 MTD-710-1260A
...
8
Hex Cap Screw, 3/8-16 x 1.50 MTD-710-3120
...
9
Hex Washer Screw, 1/4-20 x .625 MTD-710-1652
...
10
Hex Cap Screw, 3/8-16 x 1.25 MTD-710-3005
...
11
Hex Cap Screw, 3/8-16 x 2.00 MTD-710-3144
...
12
Screw, 7/16-20 x 3.25 MTD-710-3157A
...
13
SCREW 1/4-20 x .620 GR5 MTD-710-0751
...
14
Nut, Flange Lock, 1/4-20, Nylon MTD-712-04064
...
15
Flange Lock Nut, 3/8-16 MTD-712-04065
...
16
HEX NUT MTD-712-0417A
...
17
Hex Cap Screw, 5/16-18 x 1.00 MTD-710-0376
...
18
Cotter Pin, 5/32 x 1.25 MTD-714-0162
...
19
Deck Adjustment Gear MTD-917-05298
...
20
Electric PTO Clutch MTD-917-05121
...
21
Water Nozzle Adapter MTD-921-04041
...
22
BELT COVER MTD-731-08698B
...
23
Compression Spring, .66 x 1.9 MTD-932-3127
...
24
Extension Spring, .94 Dia. x 7.57 MTD-732-04960
...
25
Deck Ball Wheel, 5.0 MTD-734-04155
...
26
Flange Lock Nut, 5/16-18 MTD-712-04063
...
27
Flat Washer, .385 x .870 x .092 MTD-736-0262
...
28
Flat Washer, .450 x 1.25 x .164 MTD-736-0322
...
29
Cap, .290 x .500 MTD-720-05010
...
30
Deck Wash Nozzle MTD-731-07487
...
31
Shoulder Spacer, .884 x .190 MTD-738-04162C
...
32
Shoulder Screw, .5 x 2.5 x 3/8-16 MTD-938-3056
...
33
21.23" BLADE (2N1) MTD-942-04308A
...
33
Cub Cadet 42" BLADE SET Retail Packaged Part MTD-490-110-C108
...
33
21.23" BLADE (2N1) (XTREME) MTD-742-04308-X684
...
33
42" 6 PT STAR LOW LIFT/SAND BLADE MTD-742-04312-L0606
...
33
Cub Cadet 42" LOWLIFT BLADE SET Retail Packaged Part MTD-490-110-C180
...
33
Genuine Factory Parts 42" LOWLIFT BLADE SET Retail Packaged Part MTD-490-110-M180
...
34
DECK SPRING HOOK MTD-747-05608A
...
35
Deck Hanger Rod MTD-747-06292
...
36
Shoulder Screw, 1/4-20 x 0.50 MTD-738-04502
...
37
V-Belt MTD-954-04033A
...
38
Idler Pulley, 4.25 Dia. MTD-756-05042
...
39
Idler Pulley, 5.00 Dia. MTD-756-04511B
...
40
Shoulder Spacer MTD-748-05029A
...
41
Pulley Cap MTD-783-08389
...
42
Fl-Wash. .76" I.D. x 1.5" O.D. x .030" Thk. MTD-736-0351
...
43
Spindle Shaft MTD-738-1186A
...
44
BALL BEARING MTD-741P0919B
...
45
Spacer, .792 x 1.060 x 1.860 MTD-750-04936
...
46
Deck Pulley MTD-756-05111
...
47
PUSH CAP MTD-726-04009A
...
48
Spring, Torsion, .440 ID x 1.75 MTD-732-05261
...
49
Hinge Pin MTD-747-06290B
...
50
Bearing Shield MTD-783-08435
...
51
CHUTE MOUNTING BRACKET MTD-783-08504B
...
...
...
...
...
