Craftsman 17AKCACS299 (247.204122) (Z6000) (2015) Z-Series

Model: 17AKCACS299 (247.204122) (Z6000) (2015)

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

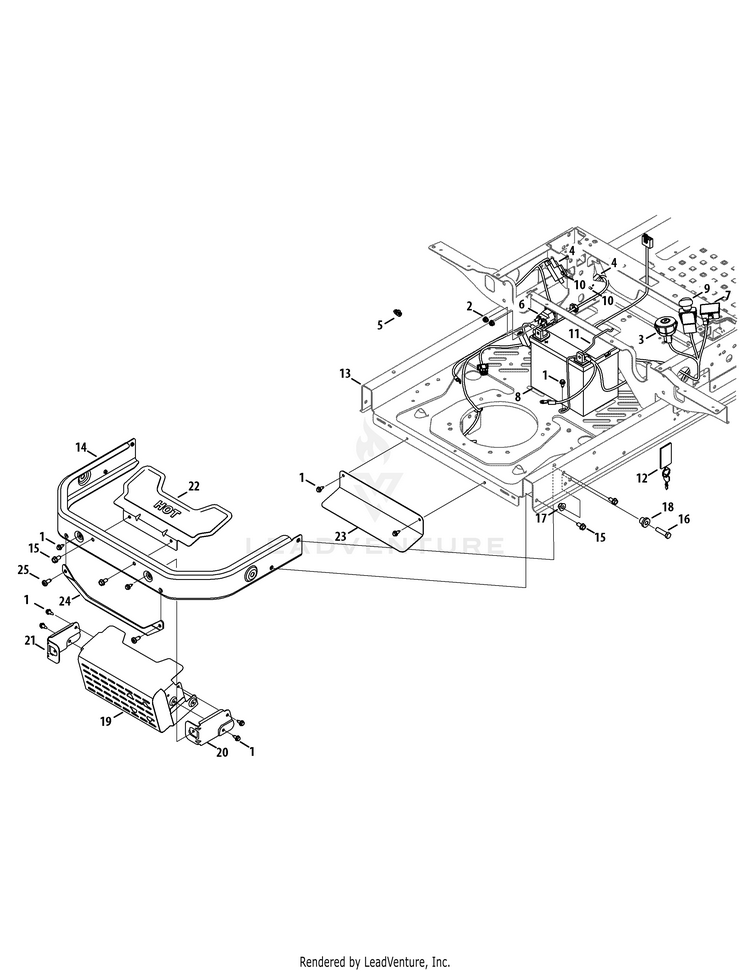

Frame & Bumper

...
...
1
Hex Washer Screw, 1/4-20 x .625 MTD-710-1652
...
2
Flange Lock Nut, 1/4-20 MTD-712-04064
...
3
Key Switch MTD-925-04228
...
4
Interlock Switch MTD-725-04363
...
5
MAIN HARNESS MTD-925-06000B
...
6
12V SOLENOID MTD-725-06153A
...
7
HOUR METER/SERVICE MINDER MTD-925-06170B
...
8
BATTERY MTD-925-1707D
...
9
PTO SWITCH (YELLOW KNOB) MTD-925-3233A
...
10
Shoulder Screw MTD-738-04237A
...
11
Battery Retainer MTD-747-05685-0637
...
12
Key MTD-925-1745A
...
13
FRAME (CRAFTSMAN RED) MTD-703-09578K-4044
...
14
Bumper MTD-703-08558B-4044
...
15
SCREW 5/16-18 x .750 MTD-710-04484
...
16
Hex Screw, 3/8-16 x 1.25 MTD-710-3005
...
17
Flange Lock Nut, 3/8-16 MTD-712-04065
...
18
Shoulder Spacer, .38 x 1.0 x .70 MTD-738-04058
...
19
MUFFLER SHIELD W/EXTENSION (POWDER BLACK) MTD-603-05156C-0637
...
20
MUFFLER SHIELD BRACKET (RH) MTD-703-08671B-0637
...
21
MUFFLER SHIELD BRACKET (LH) MTD-703-08695A-0637
...
22
Muffler Shield MTD-703-09083-0637
...
23
Lower Heat Shield MTD-703-09195
...
24
Rear Muffler Shield Bracket MTD-703-09884-0637
...
25
Screw, Self-Tapping, 5/16-18, 0.750 MTD-710-06096
...
...
...
...
...
