Craftsman 17AKCACS299 (247.204122) (Z6000) (2015) Z-Series

Model: 17AKCACS299 (247.204122) (Z6000) (2015)

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

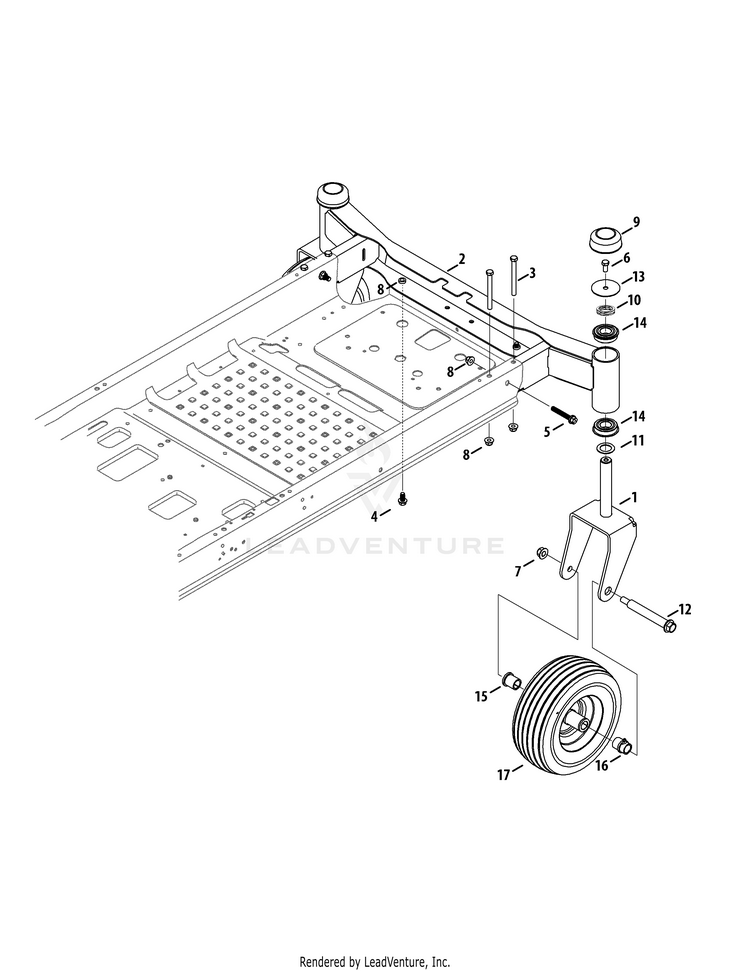

Front Axle

...
...
1
CASTER WHEEL YOKE (CRAFTSMAN RED) MTD-603-05057D-4044
...
2
FRONT AXLE (CRAFTSMAN RED) MTD-603-05134-4044
...
3
Hex Screw, 3/8-16 x 1.00 MTD-710-04576
...
4
Hex Screw, 3/8-16 x 1.00 MTD-710-0514
...
5
Hex Flange Screw, 3/8-16 x 2.00 MTD-710-06093
...
6
Hex Screw, 3/8-16 x .750 MTD-710-3119
...
7
Flange Lock Nut, 1/2-13 MTD-712-04150
...
8
Flange Lock Nut, 3/8-16 MTD-712-04217
...
9
Shaft Cap MTD-731-09347
...
10
Wave Washer, .375 x 1.030 x .300 MTD-736-05033A
...
11
Thrust Washer, 1.010 x 1.560 x .060 MTD-736-0745
...
12
SHOULDER BOLT .750X4.75X1/2-13 MTD-738-04182B
...
13
Shoulder Spacer, 2.500 x .200 MTD-738-05091
...
14
Ball Bearing 25 x 52 x 6205 MTD-941-05022A
...
15
Flange Bearing, .760 x 1.00 x 1.20 MTD-741-0516B
...
16
Flange Bearing, .760 MTD-741-0990B
...
17
WHEEL ASSEMBLY (11 x 4 x 5) (CRAFTSMAN GRAY) MTD-634-04746
...
...
...
...
...
