Craftsman 17AKCACS299 (247.204122) (Z6000) (2015) Z-Series

Model: 17AKCACS299 (247.204122) (Z6000) (2015)

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

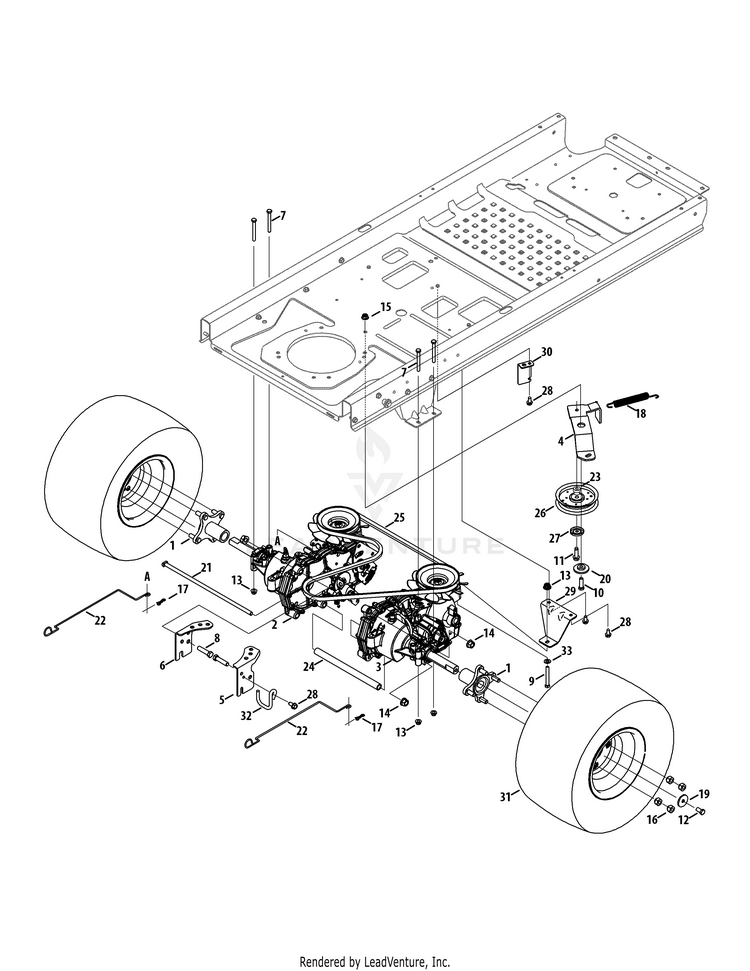

Drive & Rear Wheels

...
...
1
Wheel Hub Assembly MTD-918-04317
...
2
HYDRO TRANSMISSION ASSEMBLY (LH) MTD-918-05128B
...
3
HYDRO TRANSMISSION ASSEMBLY (RH) MTD-918-05129B
...
4
IDLER BRACKET ASSEMBLY MTD-603Z05256
...
5
RH transmission Mount Bracket MTD-703-08614A-0637
...
6
LH transmission Mount Bracket MTD-703-08615A-0637
...
7
Hex Screw, 5/16-18 x 2.75 MTD-710-0176
...
8
Hex Screw, 7/16-20 x 1.750 MTD-710-04092
...
9
Hex Screw, 5/16-18 x 2.25 MTD-710-0395
...
10
Hex Screw, 3/8-16 x 1.00 MTD-710-0514
...
11
Hex Washer Screw, 3/8-16 x 1.250 MTD-710-1315
...
12
Hex Screw, 3/8-16 x .750 MTD-710-3119
...
13
Flange Lock Nut, 5/16-18 MTD-712-04063
...
14
Flange Lock Nut, 7/16-20 MTD-712-0459
...
15
Jam Lock Nut, 3/8-16 MTD-912-3020
...
16
Lug Nut, 7/16-14 MTD-712-3050
...
17
Cotter Pin MTD-714-04040
...
18
Extension Spring.75 x 5.365 MTD-732-04229
...
19
Fl-Wash. .39" I.D. x 1.5" O.D. MTD-736-0227
...
20
Shoulder Spacer, .8840 x .190 MTD-738-04162C
...
21
Rod, .405 x 14.0 MTD-738-04192B
...
22
HYDRO BYPASS ROD MTD-747-05657B
...
23
Toggle Lock Shoulder Spacer MTD-748-05029A
...
24
Tube, .51 x .75 x 10.2 MTD-750-04561A
...
25
Belt MTD-954-04317A
...
26
Idler Pulley, 4.25 MTD-756-05042
...
27
Pulley Cap MTD-783-08389
...
28
SCREW 5/16-18 x .750 MTD-710-04484
...
29
Transmission Mount Bracket MTD-703-08570-0637
...
30
Spring Mount Bracket MTD-703-08613A-0637
...
31
WHEEL ASSEMBLY (18 x 8.5-8) (CRAFTSMAN GRAY) (DELI) MTD-634-04293-0966
...
32
Clutch Keeper Rod MTD-747-06037
...
33
Fl-Wash. .344" I.D. x .625" O.D. MTD-736-0264
...
...
...
...
...
