Craftsman 17AKCACS299 (247.204122) (Z6000) (2015) Z-Series

Model: 17AKCACS299 (247.204122) (Z6000) (2015)

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

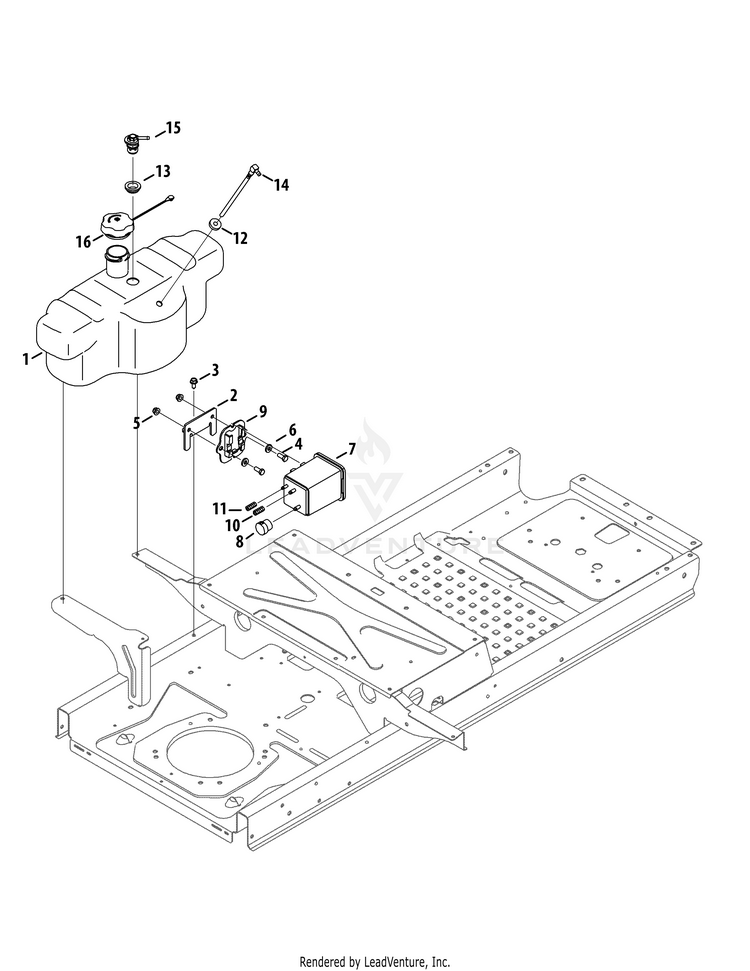

Fuel Tank

...
...
1
FUEL TANK (2.82 GAL) MTD-951-08858
...
2
CARBON CANISTER BRACKET (POWDER BLACK) MTD-703-08769A-0637
...
3
SCREW 5/16-18 x .750 MTD-710-04484
...
4
SCREW 5/16-18 x .75 GR5 MTD-710-3008
...
5
Flange Lock Nut, 5/16-18 MTD-712-04063
...
6
Flat Washer, .344 x .750 x .120 MTD-936-3008
...
7
Carbon Canister MTD-951-10589
...
8
Cannister Filter Vent MTD-951-10590
...
9
Cannister Adapter Bracket MTD-951-10610
...
10
FUEL HOSE LO PERMEATION 28" MTD-751-10750A-28
...
11
Vent Hose, Carb MTD-751-10749-30
...
12
Fuel Tank Bushing MTD-935-0149
...
13
Rubber Grommet MTD-735-04081
...
14
Fuel Pickup Fitting MTD-751-10442
...
15
Rollover Valve MTD-751-12118
...
16
FUEL CAP (W/TETHER) MTD-951-12426B
...
...
...
...
...
