Craftsman 161-JU 123cc Engine Snow Blower

Model: 161-JU 123cc Engine

Save
 Part Not Listed?Part Not Listed?
product name

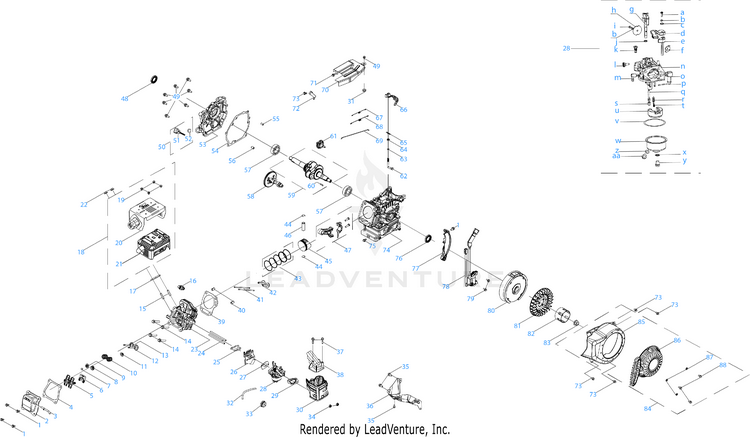

161-JU General Assembly

...
...
1
BOLT M6 x 16 MTD-710-04968
...
2
VALVE COVER MTD-951-11054B
...
3
BREATHER HOSE MTD-951-14090
...
4
VALVE COVER GASKET MTD-751P11565B
...
5
ROCKER ARM KIT (Kit contains 1 each of Lock Nut, Pivot Nut, Stud, Rocker Arm) MTD-951-11892
...
6
ROCKER ARM BASE MTD-951-15139
...
7
EXHAUST VALVE ADJUSTER MTD-751P12002A
...
8
INTAKE VALVE SPRING RETAINER MTD-951-12000
...
9
EXHAUST VALVE SPRING RETAINER MTD-951-12003
...
10
VALVE SPRING MTD-751P12004A
...
11
INTAKE VALVE SEAL MTD-951-11894
...
12
INTAKE VALVE MTD-951-14086
...
13
EXHAUST VALVE MTD-951-14087
...
14
BOLT M8 x 50 MTD-710-04922
...
15
STUD M8 x 36 MTD-710-04911
...
16
SPARK PLUG (F6RTC/RN11YC/BPR6ES) MTD-951-10292A
...
17
MUFFLER GASKET MTD-951-10959
...
18
MUFFLER ASSEMBLY MTD-951-10901
...
19
BOLT M5-.8 x 8 CL10.9 MTD-710-06119
...
22
NUT MTD-712-04214
...
23
CYLINDER HEAD MTD-951-14088
...
24
STUD M6-1 x 113 MTD-710-04909
...
25
CARBURETOR INSULATOR GASKET MTD-951-12610B
...
26
CARBURETOR INSULATOR MTD-951-12611
...
27
CARBURETOR GASKET MTD-751P12005B
...
28
CARBURETOR MTD-951-14093
...
29
CARBURETOR GASKET PLATE MTD-951-11571
...
30
HEATER BOX HOUSING MTD-951-14796
...
31
HEX NUT MTD-712-05015
...
32
FUEL HOSE 3.2X6.5X530 MTD-951-14795
...
33
PRIMER MTD-951-10639B
...
34
HEX NUT MTD-712-05015
...
35
BOLT M6-1 x 10 GR8.8 MTD-710-04914
...
36
SHROUD MTD-951-14781
...
37
BOLT M4.2 x 16 MTD-710-05275
...
38
INTAKE HEATER BOX MTD-951-10961
...
39
CYLINDER HEAD GASKET MTD-951-12609
...
40
DOWEL PIN MTD-715-04108
...
41
SINGLE PUSH ROD MTD-951-11174
...
42
TAPPET MTD-951-11899
...
43
PISTON RING KIT MTD-951-12615
...
44
SNAP RING-PISTON PIN MTD-951-11603
...
45
PISTON MTD-951-11828
...
46
PISTON PIN MTD-951-11604
...
47
CONNECTING ROD ASSEMBLY MTD-951-12616
...
48
OIL SEAL MTD-751P11368A
...
49
BOLT-M6-1 x 28 GR8.8 MTD-710-04943
...
50
DIPSTICK ASSEMBLY MTD-951-12619
...
52
O-RING 15.8 x 2.5 MTD-951-11577
...
53
CRANKCASE COVER MTD-951-14081
...
54
CRANKCASE COVER GASKET MTD-951-12618
...
55
DOWEL PIN 9 X 14 MTD-715-04096A
...
56
DOWEL PIN 9 X 14 MTD-715-04096A
...
57
BEARING MTD-951-11369
...
58
CAMSHAFT ASSEMBLY MTD-951-12046
...
59
CRANKSHAFT MTD-951-14080
...
60
WOODRUFF KEY MTD-751P10307A
...
61
GOVERNOR GEAR/SHAFT ASSEMBLY MTD-951-12617
...
62
GOVERNOR SHAFT MTD-951-14053
...
63
O-RING MTD-736-04461
...
64
OIL SEAL MTD-951-11902A
...
65
COTTER PIN MTD-714-04078
...
66
GOVERNOR LEVER MTD-951-14089
...
67
GOVERNOR-RETURN SPRING MTD-951-10953
...
68
THROTTLE RETURN SPRING MTD-951-10954
...
69
GOVERNOR ROD MTD-951-11152
...
70
COVER SHIELD MTD-951-11103
...
71
BOLT M8-1.25 x 14 GR8.8 MTD-710-04921
...
72
GOVERNOR SPRING BRACKET MTD-951-11104
...
73
BOLT M6-1 x 12 GR8.8 MTD-710-04915
...
74
CRANKCASE MTD-751P14082
...
75
OIL PLUG 1/8 NPT MTD-951-12514A
...
76
OIL SEAL MTD-951-12622
...
77
OIL ALERT SIDE PLATE MTD-951-11102
...
78
IGNITION COIL MTD-951-10958A
...
79
BOLT M6-1 x 25 GR8.8 MTD-710-04919
...
80
FLYWHEEL MTD-951-10908
...
81
COOLING FAN MTD-951-10910
...
82
STARTER CUP MTD-951-10911
...
83
FLYWHEEL NUT MTD-712-04287
...
84
RECOIL STARTER HOUSING MTD-651P05486A
...
85
BLOWER HOUSING MTD-751P15608A
...
86
RECOIL STARTER MTD-751-15609
...
87
FLAT WASHER MTD-736-04455B
...
88
BOLT M6 x 10 MTD-710-06354
...
a
CHOKE CONTROL LEVER SCREW MTD-710-05468
...
b
Washer, 3 MTD-NA
...
c
Washer, 3 MTD-NA
...
d
CHOKE CONTROL LEVER MTD-951-12811
...
e
Choke Shaft MTD-NA
...
f
Choke Plate MTD-NA
...
g
Throttle Shaft MTD-NA
...
h
Throttle Plate MTD-NA
...
i
Screw, M3×6 MTD-NA
...
j
Gasket MTD-NA
...
k
Idle Jet MTD-NA
...
l
Idle Adjusting Screw MTD-NA
...
m
PRIMER HOSE MTD-951-12019A
...
n
Carburetor Body MTD-NA
...
o
Fuel Nipple MTD-NA
...
p
FLOAT PIN MTD-711-06043A
...
q
Nozzle Tube MTD-NA
...
r
NEEDLE VALVE MTD-793P00165A
...
s
Main Jet MTD-NA
...
t
NEEDLE VALVE SPRING MTD-732P05251A
...
u
FLOAT MTD-731P09132A
...
v
FUEL BOWL O-RING MTD-951-11589
...
w
Float Bowl MTD-NA
...
x
FUEL BOWL GASKET MTD-951-11348A
...
y
BOLT M8-1 x 10 MTD-710-04945
...
Z
FUEL DRAIN PLUG GASKET MTD-951-11349A
...
aa
FUEL DRAIN PLUG MTD-710-04938
...
xx
COMPLETE ENGINE 123cc MTD-952Z161-JU
...
...
...
...
...
