Craftsman 14B7A3ZW099 (247.270551) (G8400) (2018) Garden Tractor

Model: 14B7A3ZW099 (247.270551) (G8400) (2018)

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

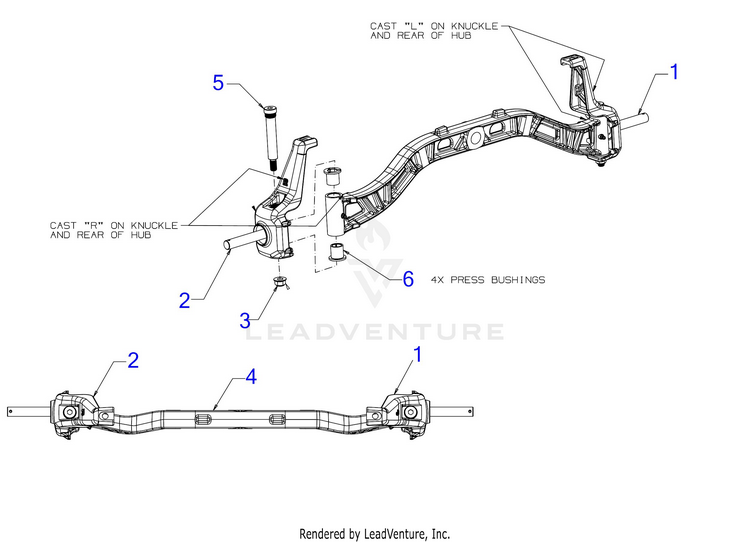

Front Axle

...
...
1
STEERING AXLE ASSEMBLY (LH) *CHOOSE COLOR WHEN ORDERING* MTD-619-05177
...
2
STEERING AXLE ASSEMBLY (RH) *CHOOSE COLOR WHEN ORDERING* MTD-619-05178
...
3
NUT MTD-712-04150
...
4
CAST PIVOT BAR AXLE MTD-919-05069A
...
4
GREASE FITTING M6X1 (Not Shown) MTD-737-0475
...
5
SHOULDER BOLT .75X3.92 1/2-13 MTD-738-05197
...
6
FLANGE BEARING .75 x 1.00 x 1.12 MTD-741-05082
...
...
...
...
...
