Craftsman 14AW94PK099 (247.289841) (2011) PGT9000 14AW94PK099 (2011) Garden Tractor

Model: 14AW94PK099 (247.289841) (2011) PGT9000

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

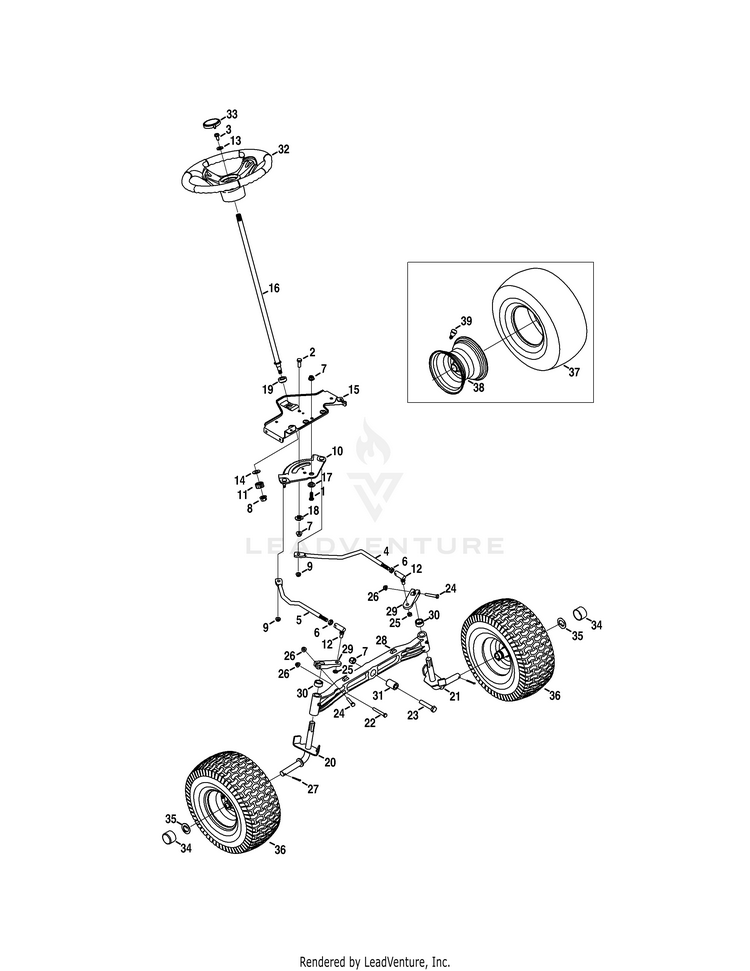

Steering & Axle

...
...
1
Hex Head Screw, 3/8-16:1.00 MTD-710-04095
...
2
Hex Head Screw, 3/8-16:1.00 MTD-710-0514
...
3
Hex Head Screw, 5/16-18:1.00 MTD-710-0643
...
4
LH Drag Link MTD-711-04998
...
5
RH Drag Link MTD-711-04999
...
6
Jam Nut, 7/16-20 MTD-912-0240
...
7
Flangelock Nut, 3/8-16 MTD-712-04065
...
8
Flangelock Nut, 7/16-20 MTD-712-0459
...
9
HEX FLANGE NUT MTD-712-3004A
...
10
Steering Gear MTD-717-1550F
...
11
Steering Pinion Gear MTD-717-1554
...
12
Ball Joint, 7/16-20 MTD-923-0448A
...
13
Fl.-Wash 3/8" 1.C) x 875" OD MTD-736-3004
...
14
Flat Washer, .51 x 1.12 x .06 MTD-736-3084
...
15
STEERING SUPPORT BRACKET MTD-783-06043-0637
...
15
SCREW 5/16-18 x .750 MTD-710-04484
...
16
Steering Shaft, .625 OD x 24.25 LG MTD-738-04263
...
17
Shoulder Spacer, .385 x 1.25 x .3025 MTD-738-04363
...
18
SHOULDER SPACER MTD-738-04364B
...
19
Hex Flange Bearing 5/8 PM MTD-741-04237B
...
20
STEERING AXLE (RH) MTD-938-04040-0637
...
21
STEERING AXLE (LH) MTD-938-04041-0637
...
22
Hex Head Screw, 5/16-18:2.25 MTD-710-0395
...
23
Hex Head Screw, 3/8-16:2.50 MTD-710-0859
...
24
Hex Head Screw, 5/16-18:1.75 MTD-710-3180
...
25
Hexlock Nut, 3/8-24 MTD-912-0214
...
26
Flangelock Nut, 5/16-18 MTD-712-04063
...
27
Cotter Pin, 5/32:1.25 MTD-714-0162
...
28
Pivot Bar Axle MTD-719-04413A
...
29
Steering, Block MTD-748-04278
...
30
Spacer, .71 ID x .125 OD x .56LG MTD-748-04068
...
31
PIVOT AXLE BUSHING MTD-750-05280
...
32
Steering Wheel MTD-631-04415
...
33
Cap, Steering Wheel (Crafts. logo) MTD-731-06825A
...
34
Bumper Cap MTD-731-05674
...
35
FLAT WASHER .781 ID x1.590 OD MTD-736-04228B
...
36
Wheel Assembly MTD-634-04466-0961
...
37
Tire MTD-734-1727
...
38
Rim Assembly MTD-934-04082-4042
...
39
Tubeless Air Valve MTD-934-0255
...
...
...
...
...
