Craftsman 14AW94PK099 (247.289841) (2011) PGT9000 14AW94PK099 (2011) Garden Tractor

Model: 14AW94PK099 (247.289841) (2011) PGT9000

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

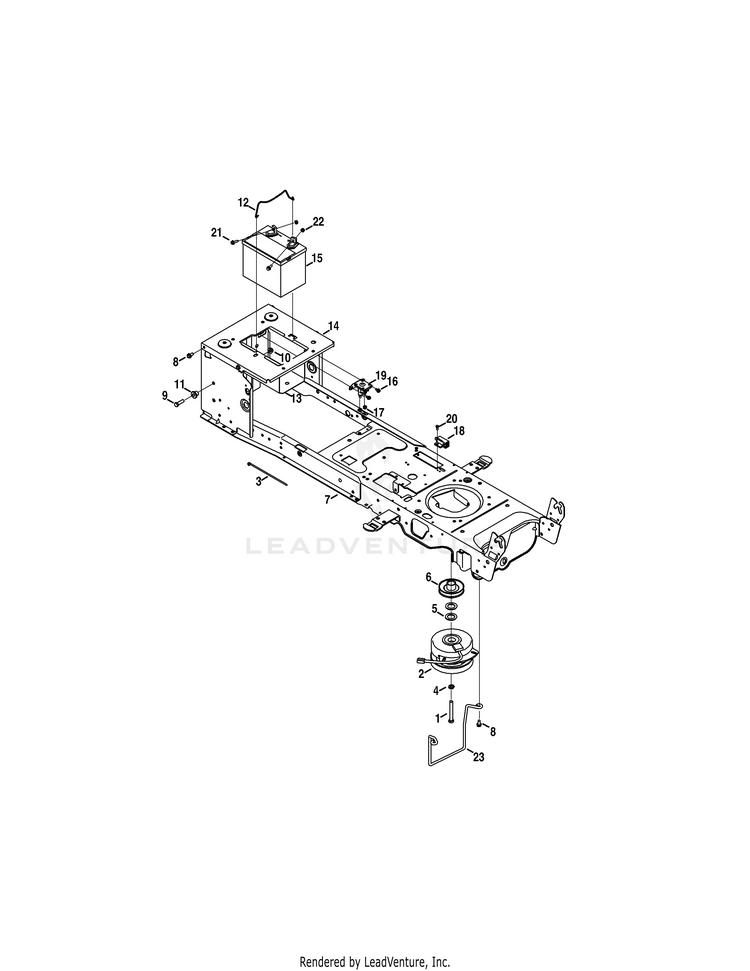

PTO & Battery

...
...
1
Hex Head Screw, 7/16-20:3.50 MTD-710-04379A
...
2
Electric PTO Clutch 54" Deck MTD-917-05001
...
3
Cable Tie, 3/16 x .05 x 7.4 MTD-725-0157
...
4
Lock Washer, 7/16 MTD-936-0171
...
5
Flat Washer, 1.031 x 1.620 x .095 MTD-736-0277
...
6
Electric PTO Engine Pulley MTD-756-0978B
...
7
LOWER FRAME ASSEMBLY(POWDER BLACK) MTD-683-04469D-0637
...
8
SCREW 5/16-18 x .750 MTD-710-04484
...
9
Hex Head Screw, 3/8-16:1.25 MTD-710-3005
...
10
Flangelock Nut, 3/8-16 MTD-712-04065
...
11
Shoulder Spacer, .38 x 1.0 x .70 MTD-738-04058
...
12
Battery Holder Rod MTD-747-04121A
...
13
BATTERY TRAY MTD-783-0349-0637
...
14
SEAT FRAME BRACKET (POWDER BLACK) MTD-783-06089-0637
...
15
Battery Order direct from Sears 725-05088 MTD-NA
...
16
Taptite Screw, 1/4-20:0.375 MTD-710-0653
...
17
Flangelock Nut, 1/4-20 MTD-712-04064
...
18
Interlock Switch MTD-725-04363
...
19
12V SOLENOID MTD-725-04439B
...
20
Shoulder Screw, #10-32:.500 MTD-738-04237A
...
21
Hex Head Flange, 1/4-20:.75 MTD-710-04666
...
22
Sems Nut, 1/4-20 MTD-712-0271
...
23
Belt Keeper Rod MTD-747-05195
...
xx
Wire Harness Assembly Not shown MTD-925-04093
...
...
...
...
...
