Craftsman 14AW94PK099 (247.289841) (2011) PGT9000 14AW94PK099 (2011) Garden Tractor

Model: 14AW94PK099 (247.289841) (2011) PGT9000

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

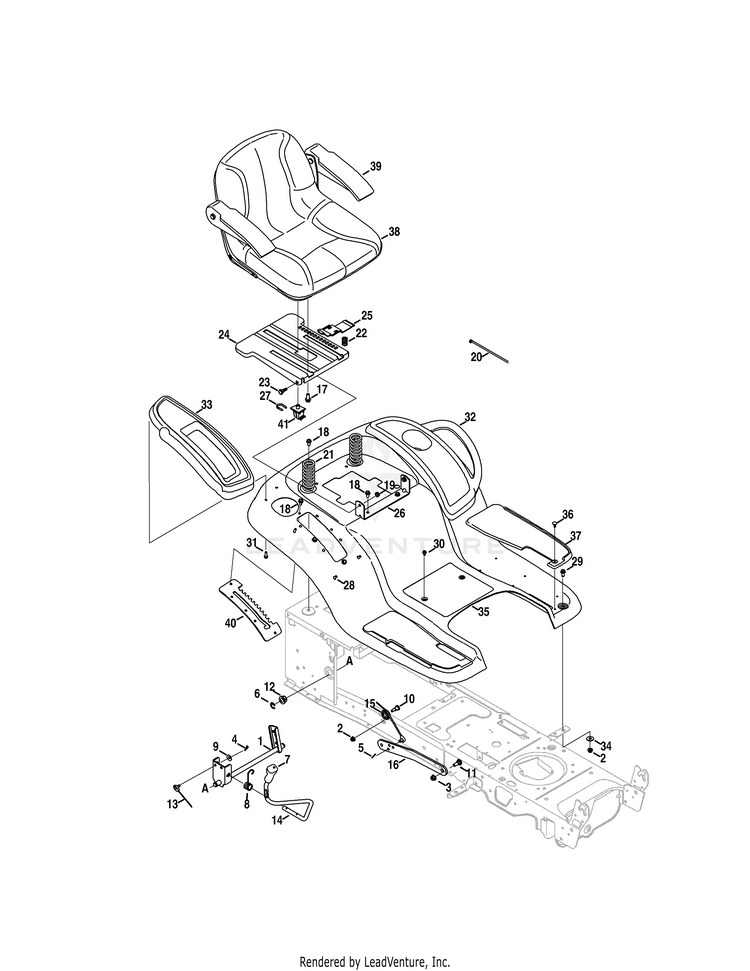

Seat & Fender

...
...
1
LIFT SHAFT ASSEMBLY MTD-683-04301-0637
...
2
Flangelock Nut, 5/16-18 MTD-712-04063
...
3
Flangelock Nut, 3/8-16 MTD-712-04065
...
4
Hairpin Clip MTD-714-0104
...
5
Bow-Tie Cotter Pin MTD-714-04040
...
6
E-Ring, .625 DIA. SHAFT MTD-716-0106A
...
7
GRIP MTD-720-04150
...
8
Torsion Spring MTD-732-0874
...
9
Spring Washer, .401 x .870 x .063 MTD-736-0105
...
10
Shoulder Screw, .437 x .470:5/16-18 MTD-738-0138A
...
11
Shoulder Screw MTD-738-0380
...
12
Hex Flange Bearing MTD-941-0225
...
13
Lift Cable, 16.16 LG MTD-746-0968
...
14
Lift Handle MTD-747-04962A
...
15
Pulley Roller Cable MTD-756-04331
...
16
Lift Arm MTD-783-05546A-0637
...
17
Hex Head Flange, 3/8-16:.875 MTD-710-04482
...
18
SCREW 5/16-18 x .750 MTD-710-04484
...
19
HEX FLANGE NUT MTD-712-3004A
...
20
Cable Tie, 3/16 x .05 x 7.4 MTD-725-0157
...
21
Compression Spring, 1.71 x 3.735 x .238 MTD-732-04849
...
22
Compression Spring, .68 x 1.065 x .055 MTD-732-04563
...
23
Shld. Bolt .437" x .286" MTD-738-0296
...
24
Bracket, Mounting, Seat MTD-783-06049-0637
...
25
Seat Adjustment Lever MTD-783-06050
...
26
Seat Pivot Bracket MTD-783-06088A-0637
...
27
Switch Retainer Clip MTD-783-06448
...
28
HEX SCREW 1/4-15 x .50 MTD-710-04187A
...
29
Carriage Bolt, 5/16-18:.750 MTD-710-0451
...
30
Taptite Screw, Lock Washer, 1/4-20:0.500 MTD-710-0599
...
31
Hi-Lo Screw, Lock Washer, 1/4-15:0.750 MTD-710-0895
...
32
FENDER COVER:(LH) MTD-731-05837
...
33
FENDER COVER (RH) MTD-731-06754
...
34
Flat Washer, .344 x 1.00 x .063 HDN MTD-736-3078
...
35
FENDER (BLACK JACK) MTD-783-06118-0691
...
36
Ratchet Clip MTD-726-3046
...
37
FOOT PAD (LH) MTD-735-04137
...
37
FOOT PAD (RH) MTD-735-04139
...
38
HI BACK SEAT (BLACK) (CRAFTSMAN) MTD-757-05236
...
39
LH & RH ARMREST KIT MTD-759-04252
...
40
LIFT BRACKET MTD-783-06181-0637
...
41
Seat Switch MTD-925-05013
...
...
...
...
...
