Craftsman 14A7A3ZW099 (247.204450) (G8400) (2016) Garden Tractor

Model: 14A7A3ZW099 (247.204450) (G8400) (2016)

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

Popular Parts

Popular Parts

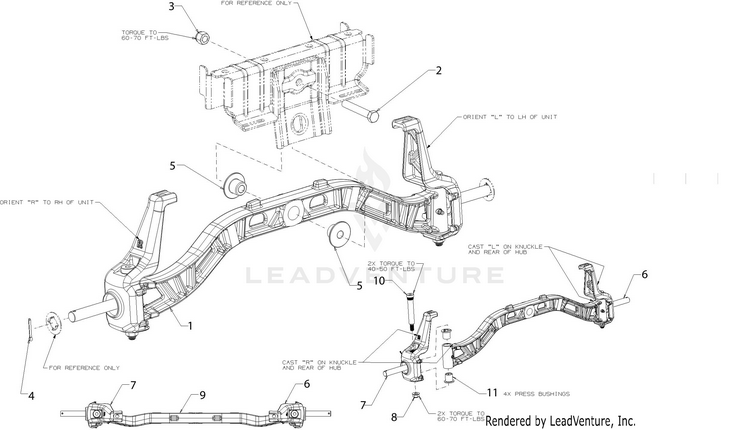

Front Axle

...
...
1
FRONT AXLE ASSEMBLY (Components Only) MTD-NA
...
2
SCREW-HEX 1/2-13 x 3.00 MTD-710-0182A
...
3
HEX LOCK NUT NYLON MTD-712-3083
...
4
COTTER PIN-5/32 DIA MTD-714-0162
...
5
SHOULDER SPACER MTD-738-05056
...
6
STEERING AXLE ASSEMBLY (LH) (SEARS YELLOW) MTD-619-05177-4028
...
7
STEERING AXLE ASSEMBLY (RH) (SEARS YELLOW) MTD-619-05178-4028
...
8
NUT MTD-712-04150
...
9
GREASE FITTING M6X1 (Not Shown) MTD-737-0475
...
9
CAST PIVOT BAR AXLE MTD-919-05069A
...
10
SHOULDER BOLT .75X3.92 1/2-13 MTD-738-05197
...
11
FLANGE BEARING .75 x 1.00 x 1.12 MTD-741-05082
...
...
...
...
...
