Craftsman 14A7A3ZW099 (247.204450) (G8400) (2015) Garden Tractor

Model: 14A7A3ZW099 (247.204450) (G8400) (2015)

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

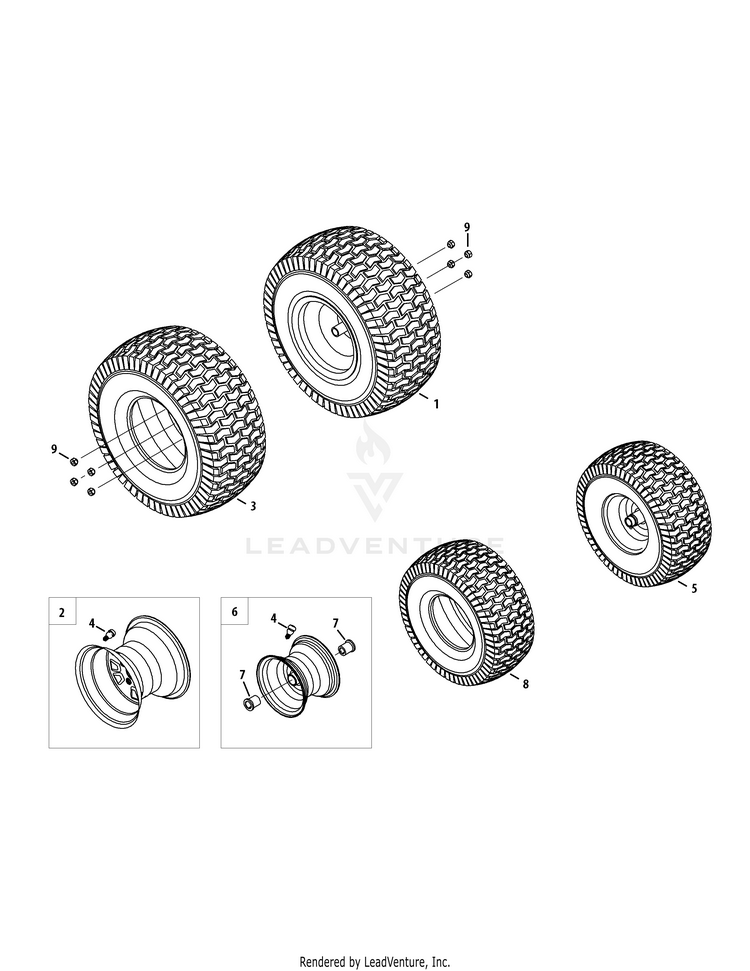

Wheels

...
...
1
Wheel, Complete, 22 x 9.5 x 12 MTD-634-05107-4028
...
2
RIM ASSEMBLY (12 x 7) (YARDMAN YELLOW) MTD-634Z04238-4028
...
3
Tire, 22 x 9.5 x 12 Sq Shoulder MTD-734-05065-0906
...
4
Valve, Tubeless Air MTD-934-0255
...
5
WHEEL ASSEMBLY (16X6.5X8) (SEARS YELLOW) MTD-634Z05180-4028
...
6
RIM ASSEMBLY (8.0X5.38) (SEARS YELLOW) MTD-634-05179B-4028
...
7
Bearing, Flange, .760 ID MTD-741-05094
...
8
Tire, 16 x 6.5 x 8 Sq Shoulder MTD-734-04641
...
9
Lug Nut 7/16-14 MTD-712-3050
...
...
...
...
...
