Craftsman 1417A3ZW099 (247.204470) (G8600) (2016) Garden Tractor

Model: 1417A3ZW099 (247.204470) (G8600) (2016)

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

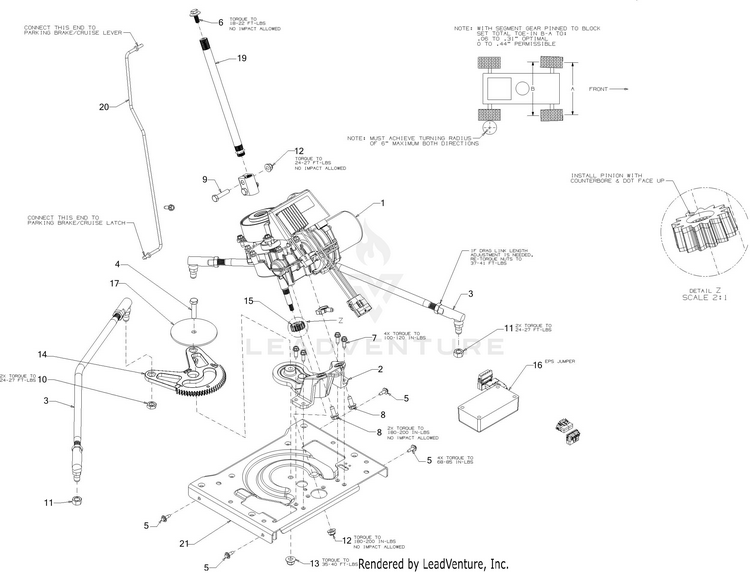

Steering

...
...
12
FLANGE LOCK NUT 5/16-18 MTD-712-04063
...
1
SCREW 1/4-20 X.500 (Not Shown) MTD-710-0599
...
1
EPS MOTOR GASKET (Not Shown) MTD-721-04431
...
1
OIL SEAL 1.0X2.04X.27 (Not Shown) MTD-721-0523
...
1
FLAT WASHER (Not Shown) MTD-736-0237
...
1
FLAT WASHER .504 X.700X.010 (Not Shown) MTD-736-04202
...
1
SHIM WASHER .632X1.000X.010:HD (Not Shown) MTD-736-04337
...
1
SHIM WASHER .504X.700X.020 (Not Shown) MTD-736-04493
...
1
SHIM WASHER (Not Shown) MTD-736-04516
...
1
STEERING SHAFT COUPLER (Not Shown) MTD-748-04240
...
1
DOWEL PIN (Not Shown) MTD-915-0221
...
1
DOWEL PIN (Not Shown) MTD-915-0221
...
1
Retaining Ring 7/16" Ext. (Not Shown) MTD-716-0108
...
1
INTERNAL SNAP RING (Not Shown) MTD-916-3020
...
1
POWER STEERING TRANSMISSION ASSEMBLY MTD-918-07167
...
1
ELECTRIC MOTOR (Not Shown) MTD-924-04097
...
1
Fl-Wash. .51" I.D. x 1.50" (Not Shown) MTD-736-0208
...
1
FLAT WASHER (Not Shown) MTD-936-0336
...
1
FLAT WASHER (Not Shown) MTD-936-0349
...
1
BALL BEARING (Not Shown) MTD-941-0524A
...
1
SCREW 1/4-20 x 1.25 (Not Shown) MTD-710-0809
...
1
SCREW 1/4-20X.625 (Not Shown) MTD-710-1652
...
1
BOLT 5/16-18X1.375 GR5 (Not Shown) MTD-710-3083
...
2
STEERING MOUNTING HOUSING ASSEMBLY MTD-919-05174
...
3
NUT (Not Shown) MTD-712-3029
...
3
BALL JOINT 1/2-20 (Not Shown) MTD-723-05013
...
3
STEERING TIE ROD MTD-947-05058A
...
4
SCREW 3/8-16 x 1.50 MTD-710-0520
...
5
SCREW M6-1 x .625 MTD-710-06133
...
6
SCREW 5/16-24 x .85 GR5 MTD-710-06154B
...
7
SCREW 1/4-20 x .750 MTD-710-0642
...
1
SCREW 1/4-20 x .750 (Not Shown) MTD-710-0642
...
8
SCREW 5/16-18 x .750 MTD-710-1260A
...
9
BOLT 5/16-18X1.375 GR5 MTD-710-3083
...
10
JAM NUT 7/16-20 MTD-912-0240
...
11
HEX NUT 7/16-20 MTD-712-0378
...
1
FLANGE LOCK NUT 5/16-18 (Not Shown) MTD-712-04063
...
13
NUT MTD-712-04065
...
14
STEERING GEAR SEGMENT 5" MTD-717-05334B
...
15
STEERING GEAR SEGMENT 13T MTD-717-05364B
...
16
VOLT PROTECTOR HARNESS EPS PURPLE MTD-925-06502
...
17
FLAT WASHER .385 x 3.75 x .120 THK MTD-736-05125A
...
18
GREASE-#251 EP (NOT SERVICEABLE) MTD-NA
...
19
STEERING SHAFT 10.28 MTD-738-05062
...
20
CRUISE/BRAKE ROD MTD-747-06582
...
21
STEERING MOUNTING PLATE *CHOOSE COLOR WHEN ORDERING* MTD-783-08386D
...
...
...
...
...
