Craftsman 1417A3ZW099 (247.204470) (G8600) (2016) Garden Tractor

Model: 1417A3ZW099 (247.204470) (G8600) (2016)

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

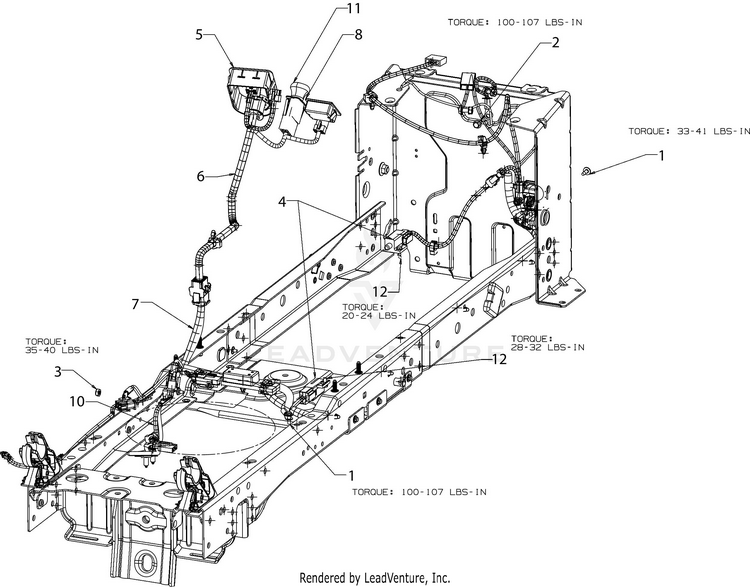

Electrical

...
...
1
SCREW M6-1 x .625 MTD-710-06133
...
10
SCREW 1/4-20X.625 (Not Shown) MTD-710-1652
...
2
SCREW 1/4-20X.625 MTD-710-1652
...
3
HEX NUT 1/4-20 MTD-712-05106
...
4
INTERLOCK SWITCH (NO/NC) MTD-725-04363
...
5
IGNITION MODULE SWITCH (RMC ELC PTO WHTE) MTD-725-13425
...
6
DASH HARNESS MTD-925-06129
...
7
MAIN HARNESS E-PTO/RMC/EPS MTD-925-06134
...
8
HOUR METER/SERVICE MINDER MTD-925-06170B
...
9
REVERSE HARNESS MTD-925-06167
...
10
CLUTCH HARNESS 11" MTD-725-06173
...
10
HARNESS CLIP (Not Shown) MTD-729-0359
...
10
CLUTCH STOP BRACKET (Not Shown) MTD-783-08656-0637
...
10
SCREW M6-1 x .625 (Not Shown) MTD-710-06133
...
11
PTO SWITCH (YELLOW KNOB) MTD-925-3233A
...
12
SHOULDER SCREW MTD-738-04237A
...
...
...
...
...
