Craftsman 13A278XS299 (247.203770) (T1200) (2014) Lawn Tractor

Model: 13A278XS299 (247.203770) (T1200) (2014)

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

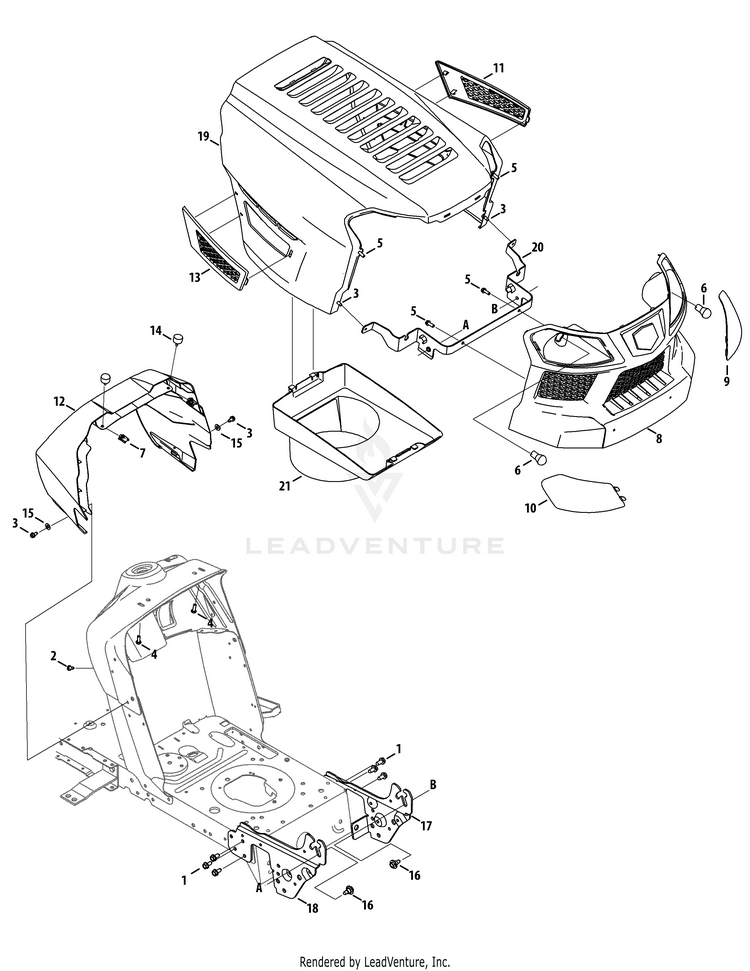

Hood & Grille

...
...
1
SCREW 5/16-18 x .750 MTD-710-04484
...
2
SCREW 1/4-20 x .5 MTD-710-05070A
...
3
Hex Washer Screw, 1/4-20 x .500 MTD-710-0599
...
4
Self-Tap Screw, 1/4-20 x .75 MTD-710-0642
...
5
Plastic Screw, 1/4-10 x .75 MTD-710-0895
...
6
Headlight Bulb MTD-925-0963
...
7
U-Clip Nut MTD-726-3054
...
8
GRILLE MTD-931-09556B
...
9
GRILLE LENS (LH) MTD-731P09756A
...
10
GRILLE LENS (RH) MTD-731P09757A
...
11
Side Cover, LH MTD-731-09781
...
12
Dash Collar MTD-731-09787
...
13
Side Cover, RH MTD-731-09799
...
14
Bumper, .62 DIA X .50 MTD-735-05006
...
15
Fl-Wash. .280" I.D. x .620" O.D. MTD-736-0463
...
16
Shoulder Screw, .43 x .29, 5/16-18 MTD-738-04091A
...
17
Pivot Support Bracket, LH MTD-783-05327B-0637
...
18
SUPPORT BRACKET (RH) MTD-783-05328B-0637
...
19
HOOD (CRAFTSMAN (RED) MTD-783-08259E-4044
...
20
Grill Pivot Bracket MTD-783-08491A-4044
...
21
HOOD PLENUM MTD-931-09838A
...
...
...
...
...
